Outdoor electric
control box

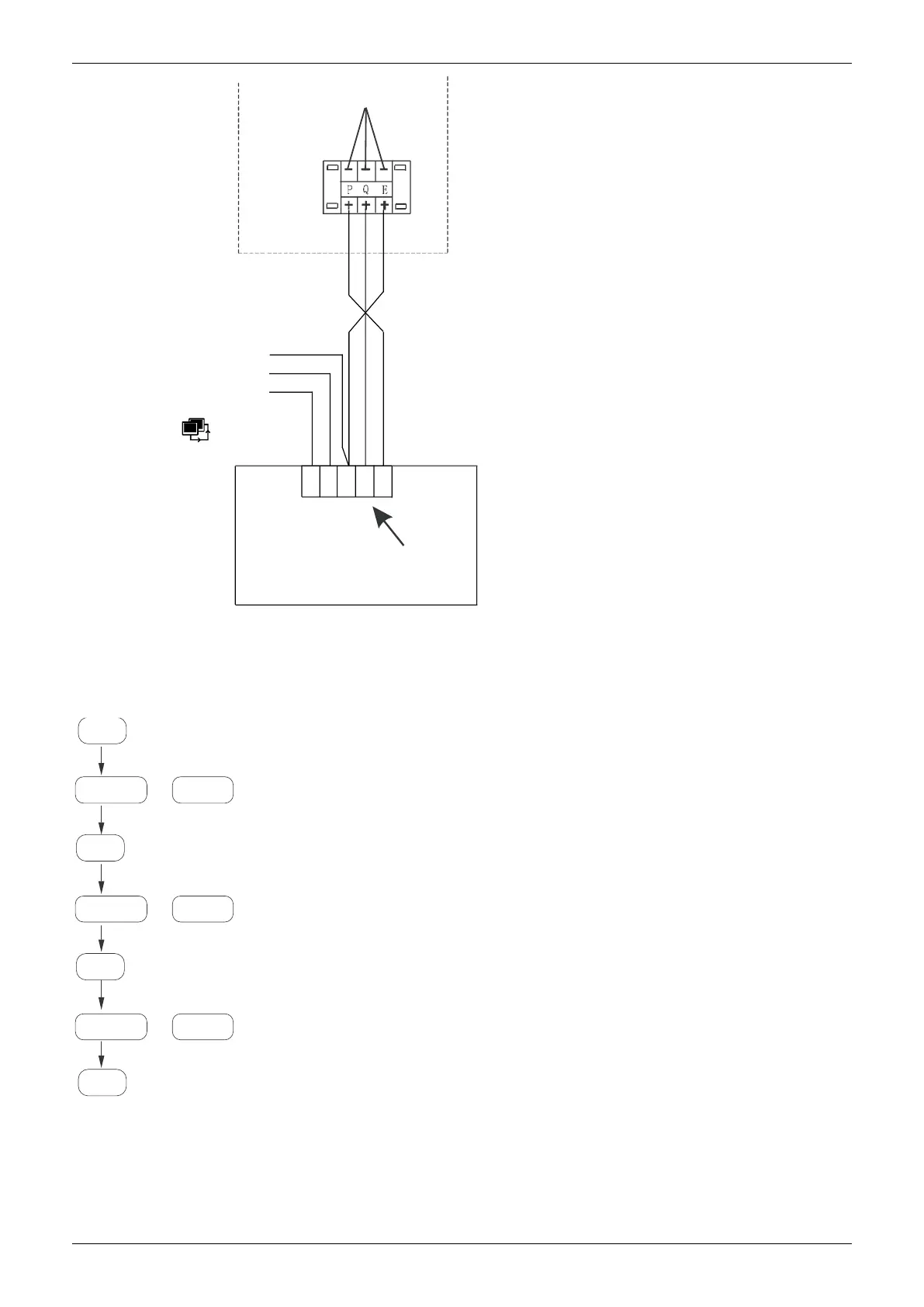

Communicate with
upper unit(reserved).
Please use 3-cord with shielding
wire for connection. The wire
length depends on the specific
situation in the installation.
wired controller
5-bit terminal base
If it is under the host computer
network control, displays,
otherwise there is no display.
16.3.7 USING METHOD
CLOCK SETTING
set week
set hour
ADDRESS/-
CLOCK
ADDRESS/+
OK
OK
ADDRESS/+
or
or
set minute
set done
ADDRESS/-
OK
ADDRESS/+
or
ADDRESS/-
