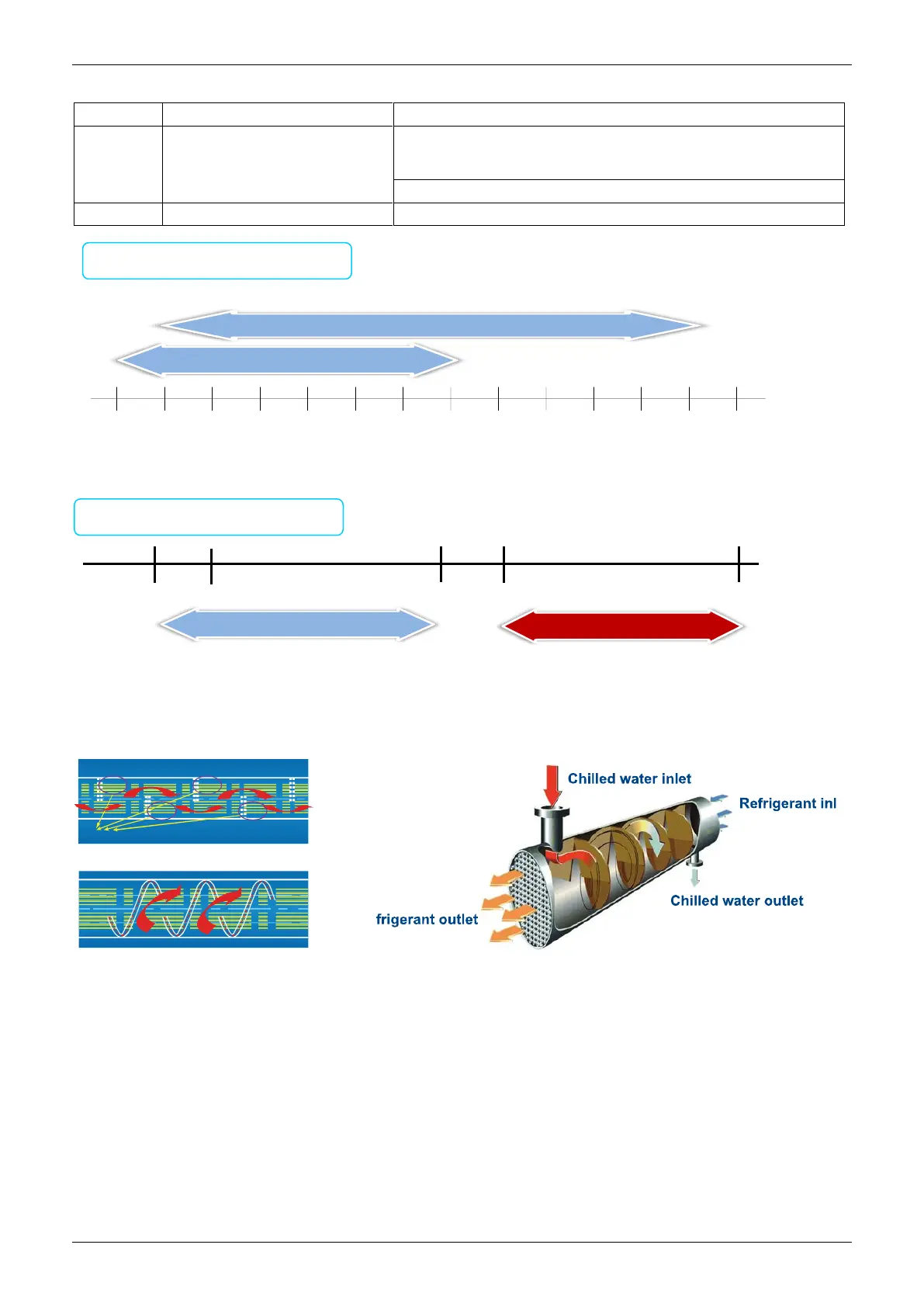

4.10 Applicable temperature range
Mode
Ambient temperature range
Water outlet temperature range
Cooling
-10˚C ~46˚C
0˚C ~17˚C (7˚C is default, less than 5 ˚C must add the antifreeze, SS
series.)
5˚C ~17˚C（SP series）
Heating
-15˚C ~24˚C
25˚C ~50˚C (45˚C is default)
Chilled outlet water temperature can be adjusted by wired controller according to customer’s demand.
SS series
4.11 Double pipe&shell and tube heat exchanger
Chilled water inlet
Refrigerant inlet
Chilled water outlet
Refrigerant outlet
Flat baffle plate
Helical baffle
Water dead zone
For shell-tube heat exchanger, the module adopts the new helical baffle design to avoid the rectangular
place of water dead zone, greatly improve the heat exchange efficiency.
