Midea Aqua Tempo Super Series

MCAC-ATSM-201606 Aqua Tempo Super Series air cooled scroll chiller unit (50Hz)
140
16.4 Lonworks gateway (Optional)
16.4.1 Introduction
It is applied the central A/C system and the Building Management System (BMS) (namely Automated
Building System) to realize the integration of A/C system and Building Management system.

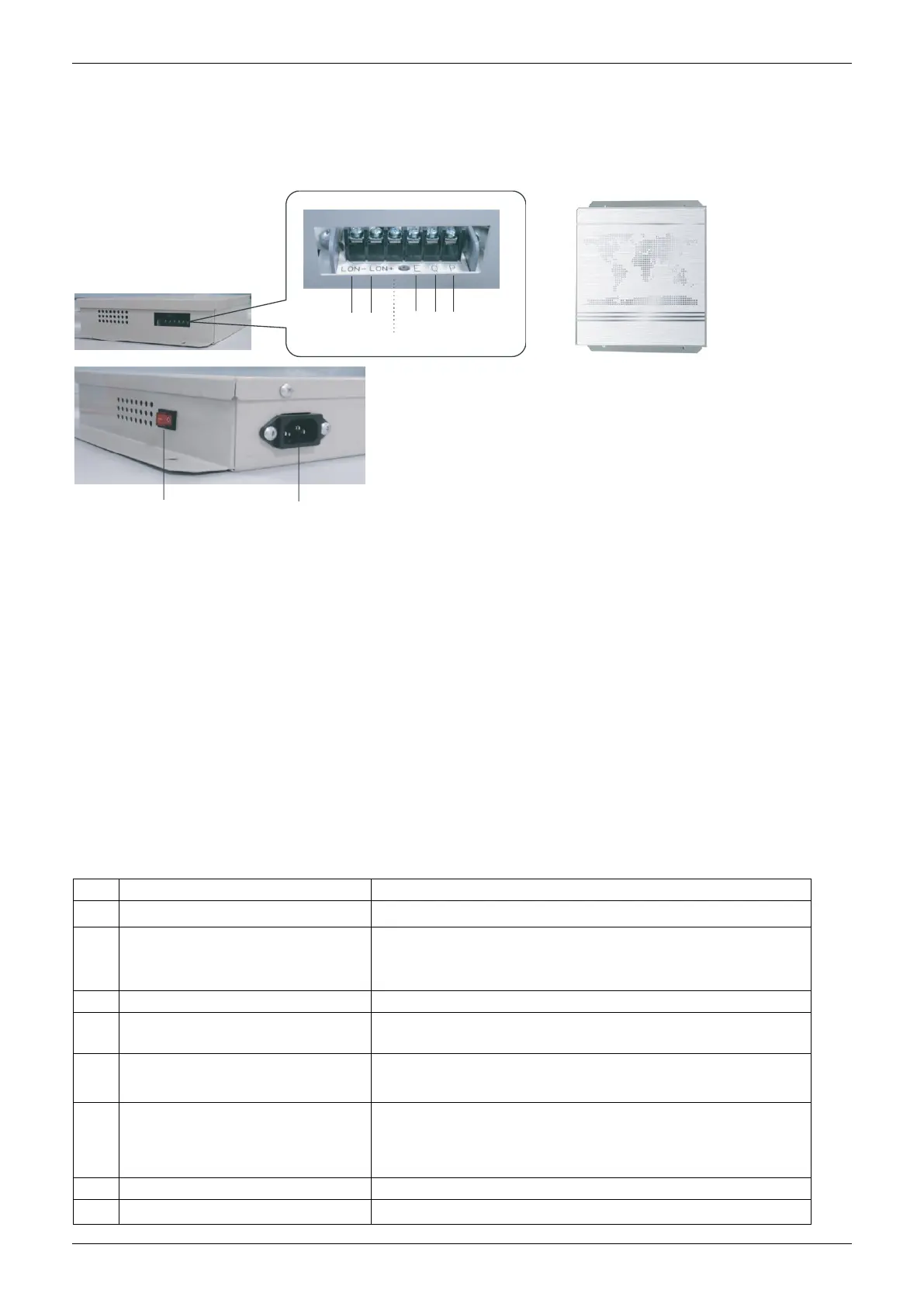

To Air-cooled Modular
system
To LonWorks
SWITCH OF POWER
PO WER
AC 220V
16.4.2 Features
Insert the central A/C system to LonWorks network.
Comply with LonMark Standard, gateways is an intelligent node base on LonWorks technique.
The core control module of node apply. Flash Memory, which application program could be downloaded on
line.
Connect to LonWorks network by twisted pair wire, and the communication mode is nonpolar.
Provide with a LonWorks control interface for BMS by network variables complying with LonMark standard.
LonWorks interoperability Guidelines Version 3.4 Compliance LonWorks gateway between LonMark
/LonTalk protocol andMDPP (Private protocol).
The gateway can convert the LonTalk protocol to the MDPP protocol.
Connection to 16(MAX) Air-cooled Scroll units.
Valid address for each unit: 0x00~0x0F.
16.4.3 Specifications
NO.
FUNCTION
DESCRIPTION
1
Processor memorizer
Neure chip, 10MHz, 64K Flash memorizer
2
Functions
● Hidden operation switch
● Operation LED (Red)
● Power LED(Green)
3
Transceiver
FTT-10A+isolating transformer
4
FTT-10A+isolating transformer
● Voltage range：177~254VAC
● MAX Current:2A
5
Operation ambient
● temperature:0～70℃
● Relative humidity:25～90%
6
Software configuration
● LonMark standard allocative attribute
● Support Direct-Memory reading and writing by the LNS network
management tool.
7
Communication port
Communication port
8
Size
31.9cm X 25.1cm X 6.1cm
Power switch
