Midea Aqua Tempo Super Series

Aqua Tempo Super Series air cooled scroll chiller unit (50Hz) MCAC-ATSM-201606
97
Pump
No.n module
No.(n-1) address
No.1 moduleNo.(n-1) module
No.(n-2) address No.0 address
Water flow switch
Drill dead hole at the
position, and move the
total effluent temperature
sensor at No.0 address to
the position

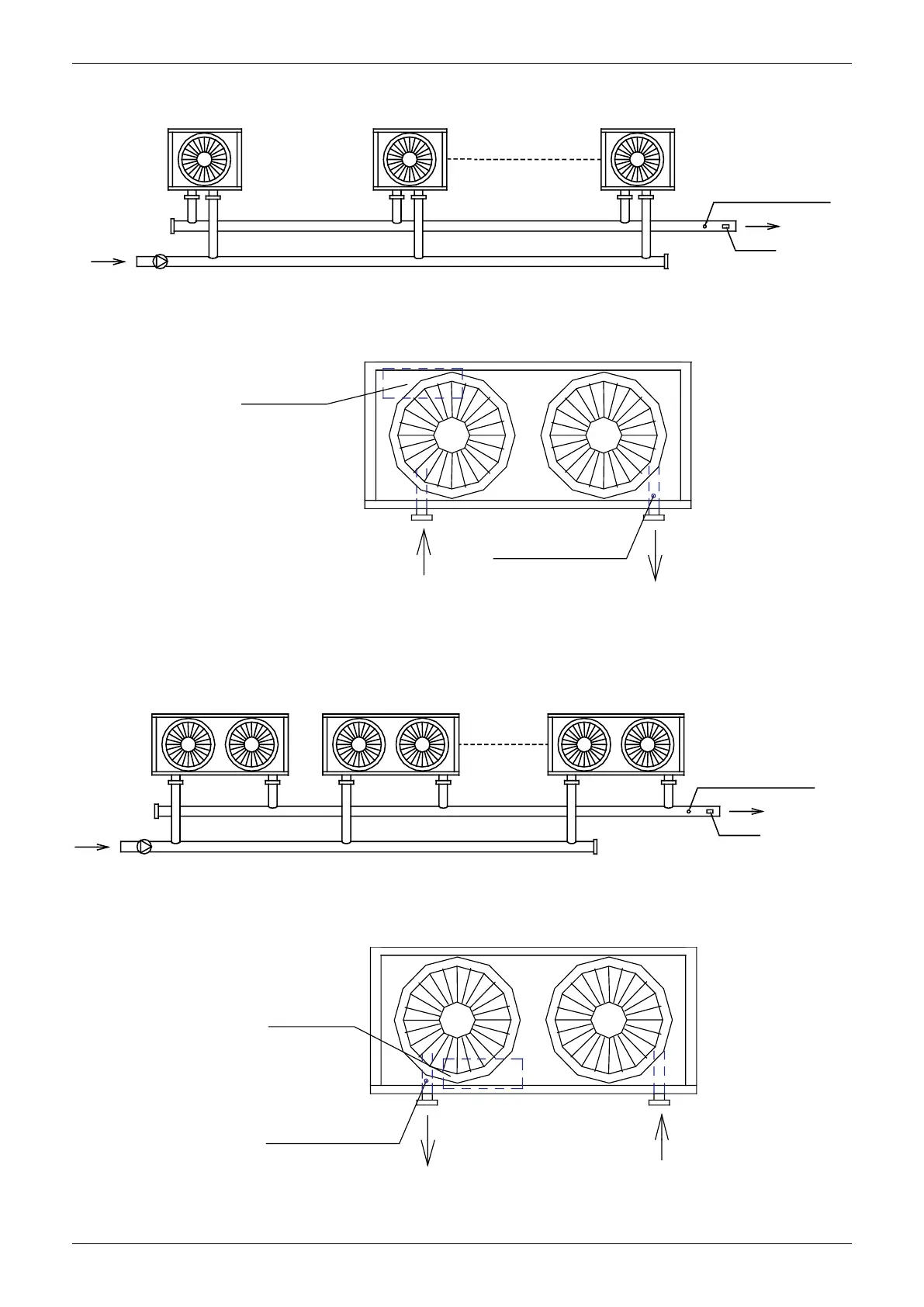

13.2.7 Installation of water system pipeline for 65kW module
Installation of single-module water system pipeline
Total water outlet
temperature sensor
Water outlet
Water inlet
Electric control box
Installation of multi-module water system pipeline
n : the module quantity, max 16
No.n module
No.(n-1) address
No.1 moduleNo.(n-1) module
No.(n-2) address No.0 address
Pump
Water flow switch
Drill dead hole at the
position, and move the
total effluent temperature
sensor at No.0 address to
the position
Installation mode A: less than 16 modules
13.2.8 Installation of water system pipeline for 80kW module
Installation of single-module water system pipeline
Total water outlet
temperature sensor
Water outlet
Water inlet
Electric control box
