Midea Aqua Tempo Super Series

MCAC-ATSM-201606 Aqua Tempo Super Series air cooled scroll chiller unit (50Hz)
34
SP series
MC-SP25-RN1L /MC-SP35-RN1L

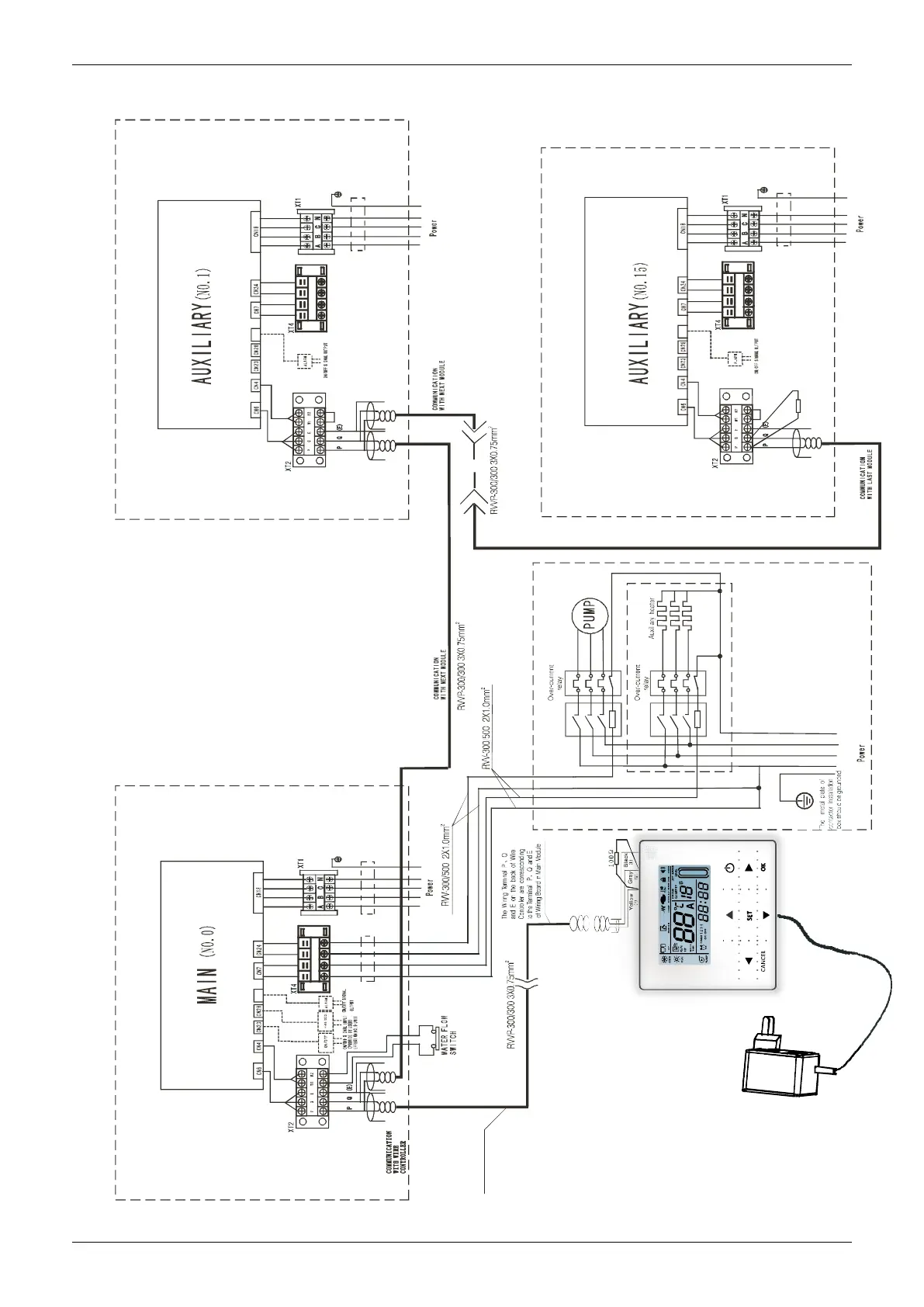

Attached picture Networking Communication Schematic of Main Unit and
Auxiliary Unit (I)
A B
C
N
The length of wire should be shorter than 500m
10 0Ω Black
Yellow
Gray
Notes
The wiring diagram of auxiliary heater and
pump is just for reference ,please follow the instructions of corresponding auxiliary heater products.
Please choose such accessory as power
wire , switch of auxiliary heater according to the actual pa rameter of products and national
12 0Ω
H2 P1 P2H1
H2 P1 P2H1
H2 P1 P2H1
CN16
CN16
CN16
Contactor Contactor
Power Transformer
AC220-240V/AC 10 V
(Press for 3sec to cancel timer)
(Press for 3sec to unlock)
AUXILIARY
Model:MC-SP25-RN1L MC-SP35-RN1L
