No.
Part Name
Qty
No.
Part Name
Qty
1
Column
4
15.9
Middle frame welded parts
1
2
Gas-liquid separator
1
16
Outlet net cover
2
3
Throttle part
1
17
Rear panel ass'y
2
3.1
Electronic expansion valve
1
18
Outdoor electrical box ass'y
1
3.2
Strainer
2
18.1

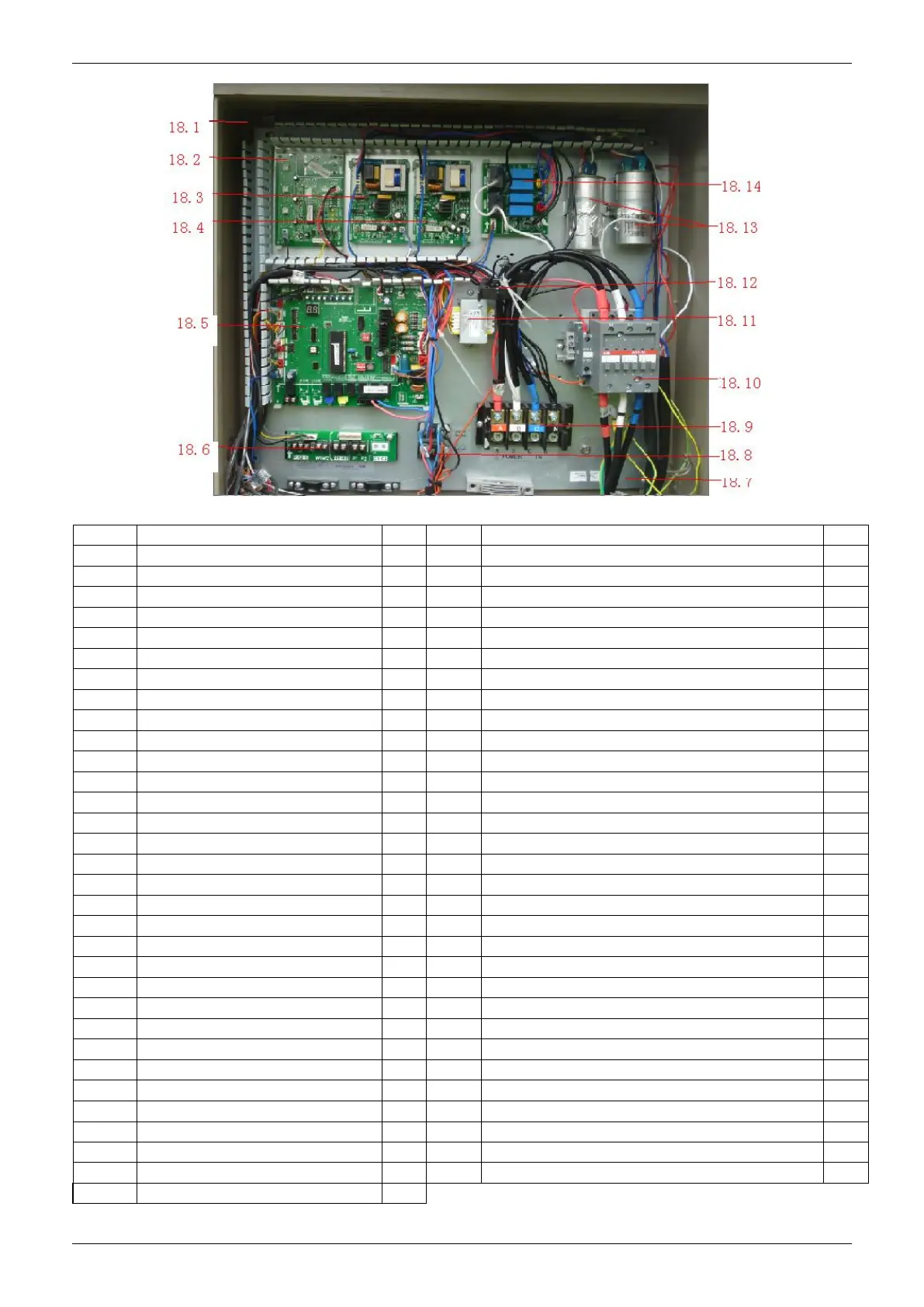

Electrical box welded parts
1
4
Pipe support
1
18.2
Outdoor current detection board ass'y
1
5
Shell-tube evaporator
1
18.3
Low temp. cooling module ass'y
1
6
Four-way valve ass'y
1
18.4
Low ambient temp. cooling kit ass'y
1
6.1
4-way valve
1
18.5
Outdoor main board ass'y
1
6.2
Pressure controller
1
18.6
Signal board of outdoor main board ass'y
1
6.3
Pressure switch
1
18.7
Electrical installation plate parts
1
7
Suction pipe ass'y
1
18.8
Terminal block
2
7.1
Pressure controller
1
18.9
Terminal block, 4P
1
8
Output pipe ass'y of condenser
1
18.10
AC contactor
1
9
Panel connection plate
2
18.11
Transformer
1
10
Compressor(fixed)
1
18.12
Current transformer
2
11
Base of welded parts
1
18.13
Capacitor
2
12
Top left panel ass'y
1
18.14
Auxiliary board ass'y of relay
1
13
The middle plate
2
19
Side panel ass'y
2
14
Front right panel ass'y
1
20
Refrigerant
11.5
15
Condenser hoisting parts
1
21
Electrical box door
1
15.1
Condenser sub-ass'y
2
22
Four-way valve coil
1
15.1.1
Condenser ass'y
1
23
EEV solenoid coil
1
15.1.2
Flute tube ass'y
1
24
Total water temperature mouth components
1
15.1.3
Distributor ass'y
1
25
Room temp sensor ass'y T41
1
15.2
Support ass'y of motor
2
26
Pipe temp. sensor ass'y
3
15.3
Motor
2
27
Pipe temp. sensor ass'y
3
15.4
Axial propeller
2
28
Pipe temp. sensor ass'y
2
15.5
Connection plate ass'y of condenser
2
29
temperature controller of the discharge pipe side
1
15.6
Top cover ass'y
2
30
Compressor electric heater
1
15.7
Water pan
2
31
Wired controller
1
15.8
Upper frame welded parts
1
