Midea Aqua Tempo Super Series

Aqua Tempo Super Series air cooled scroll chiller unit (50Hz) MCAC-ATSM-201606
73
No.
Part Name
Qty
No.
Part Name
Qty
1
Pressure sensor
1
23
Condenser's guard plate III ass'y
2
2
Pipe temp. sensor ass'y
4
24
Condenser's guard plate II ass'y
1
3
Pipe temp. sensor ass'y
1
25
Hoisting parts of condenser
1
4
Support board of plate heat exchanger
1
25.1
Axial propeller
1
5
Indoor temp. sensor ass'y
1
25.2
Upper frame welded parts
1
6
Plate heat exchanger parts
1
25.3
Base welded parts of water pan
1
6.1
Outlet water pipe ass'y II
1
25.4
Seal plate
1
6.2
Connection water pipe ass'y
1
25.5
Water pan
1
6.3
Plate heat exchanger
1
25.6
Support ass'y of motor
1
6.4
Electric heating strip
1
25.7
Top cover ass'y
1
7
Fixed board ass'y of plate heat exchanger
1
25.8
Outlet net cover
1
8
Input pipe ass'y of evaporator
1
25.9
Condenser parts
1
8.1
Electronic expansion valve
1
25.10
Snap-gauge of condenser
3
8.2
Pipe joint
1
25.11
Asynchronous motor
1
9
Support borad of piping
1
26
Bottom panel III ass'y
1
10
Differential pressure switch parts
1
27
The door of electrical control box
1
10.1
Connection pipe ass'y II, differential pressure valve
1
28

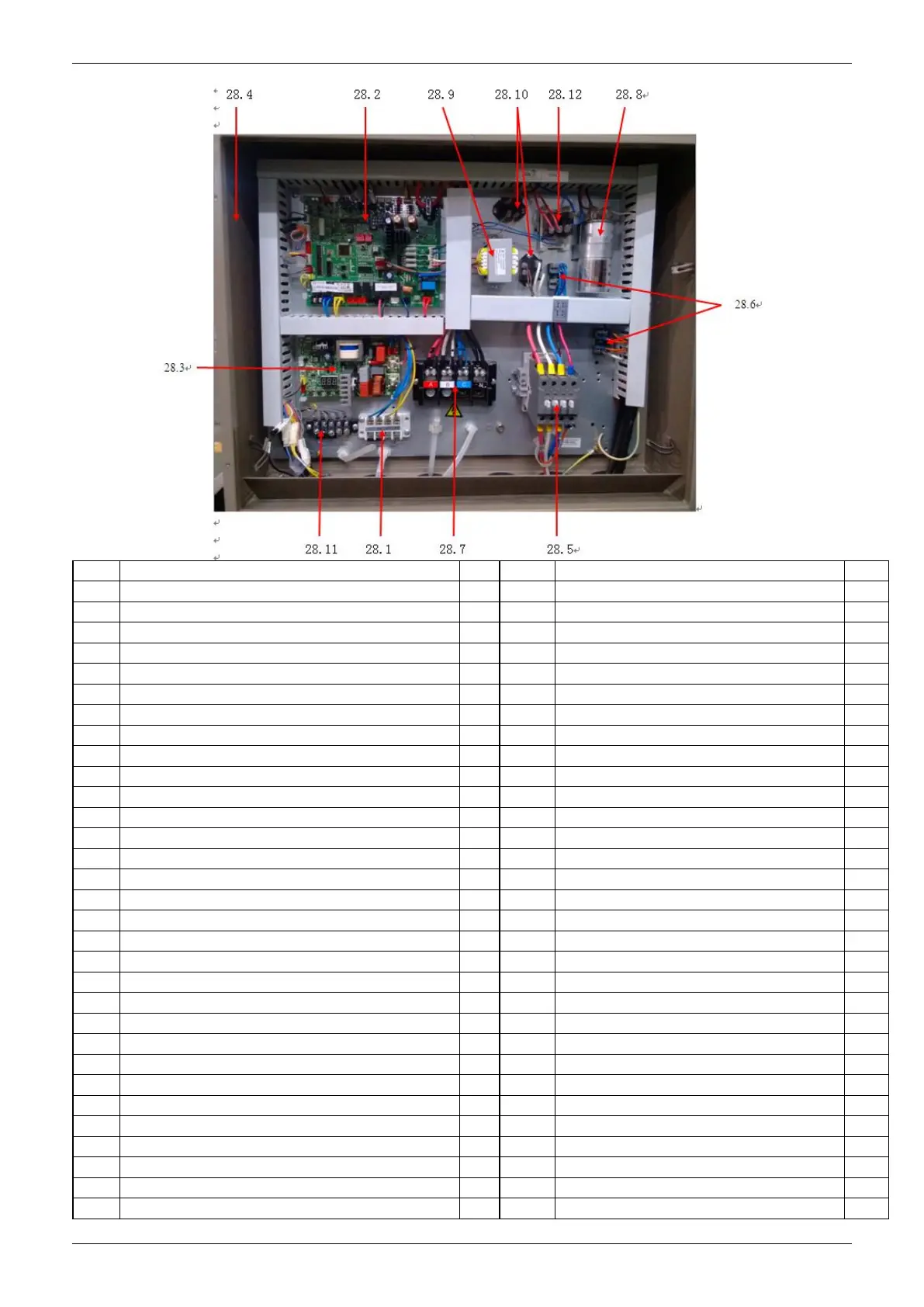

Outdoor unit electrical control box ass'y
1
10.2
Connection pipe ass'y I,differential pressure valve
1
28.1
Wire joint,4p
1
10.3
Differential pressure switch
1
28.2
Outdoor unit main control board ass'y
1
10.4
Valve electric heater
1
28.3
Outdoor main control board ass'y
1
11
Output water pipe ass'y III
1
28.4
Welded parts of electrical box
1
12
Welded parts of base plate
1
28.5
AC contactor
1
13
Holder ring
2
28.6
Terminal block
2
14
Four-way valve ass'y
1
28.7
Wire joint
1
14.2
Meter connector
2
28.8
Capacitor
1
14.3
Pressure switch
1
28.9
Transformer
1
14.4
Pressure switch
1
28.10
Relay
2
15
Compressor
1
28.11
Wire joint, 5p
1
16
Gas-liquid separator
1
28.12
E-heater control board ass'y
1
17
Under panel ass'y I
1
29
Under rain-proof board ass'y
1
18
Bottom panel II ass'y
2
30
Fixed board of liquid accumulator
1
