CCM-270A/WS Service Manual
1.1.3 Install CCM-270A/WS

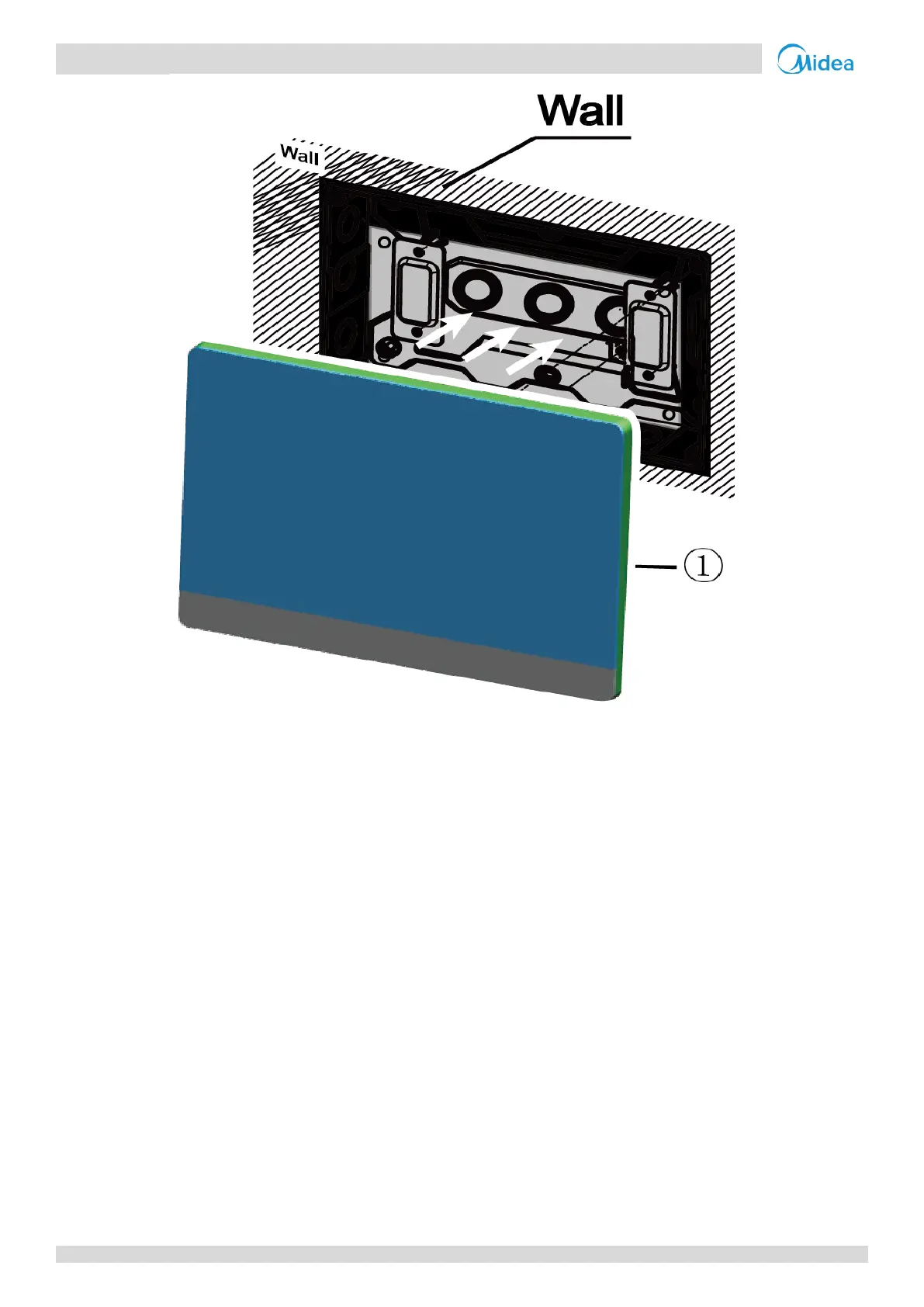

Once the connections are done, place the main unit vertically into the installation base. A magnetic force would attract the
controller. Exert downward force to mount the controller on the metal part. There are hooks which are attached on the
installation base and the controller can be mounted on these hooks. This will facilitate easy removal in case of
maintenance.
