CCM-270A/WS
94 201807
CCM-270A/WS Service Manual

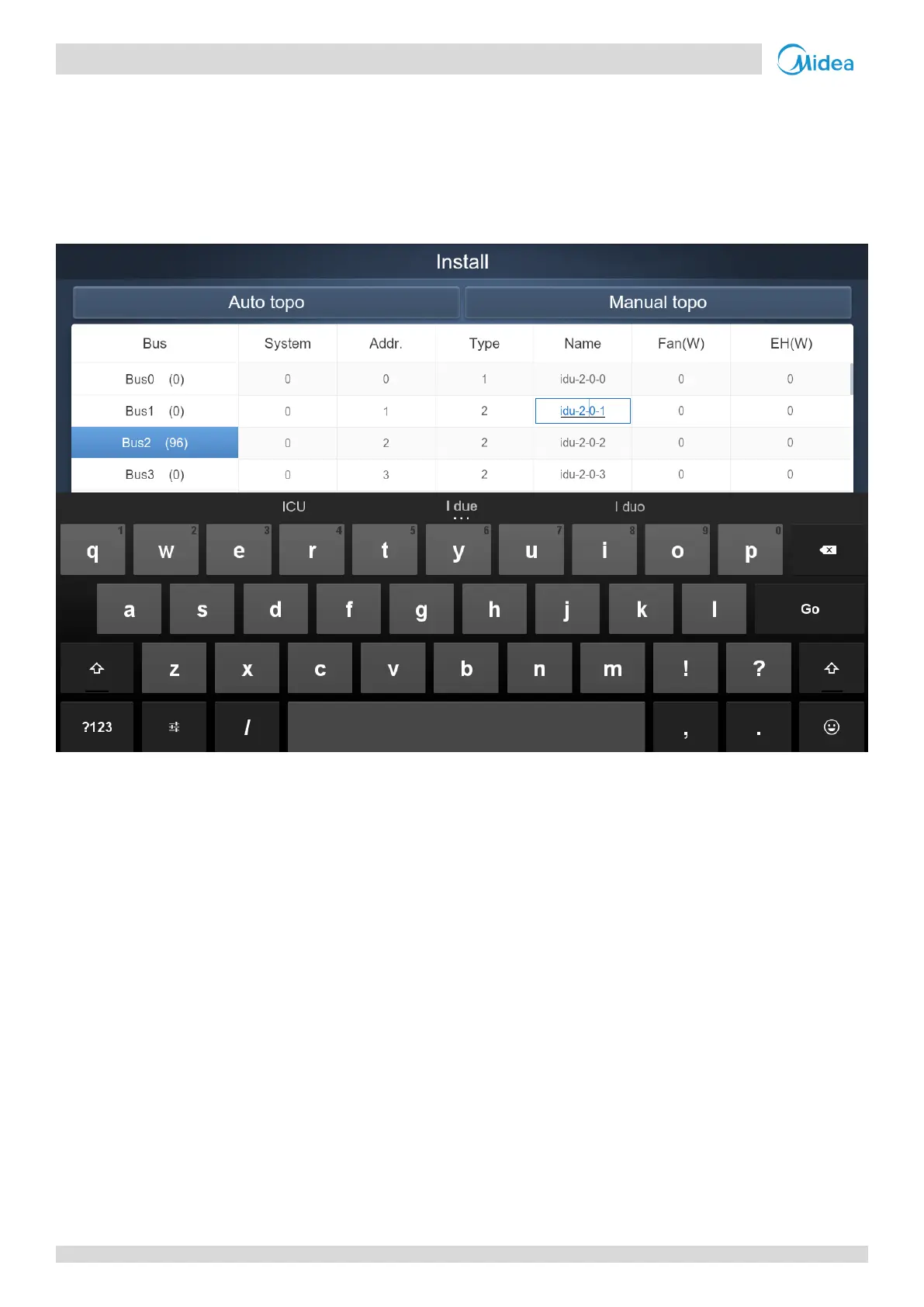

8.1 Edit
Clicking on the column for “Name”, “Fan” and “EH” allows the user to edit their values. The name of the unit can be
changed for easy identification by the user.
The option for “Fan” and “EH” are to set the rated value of power consumed by the fan or electric heater of that particular
indoor unit. The exact values of these data are present in the respective Technical Manual or Service Manual of that
particular unit, the user can refer to that to fill these values. These values would be useful for calculating the energy
consumption by the air conditioning system which is available in the “ECS” tab for “Advanced Setting” menu.
Note:
The acceptable range for the model is an integer from 0 to 12, and the model corresponds to the unit number in the “Control”. The maximum values of the fan
power and the auxiliary heating power (EH) must not exceed 65535, and must not be negative values. The device name length cannot exceed 12 characters.
Otherwise, you will receive a prompt that the name is ineligible. The device name cannot be duplicated.
