1
CCM-270A/WS
201807
91

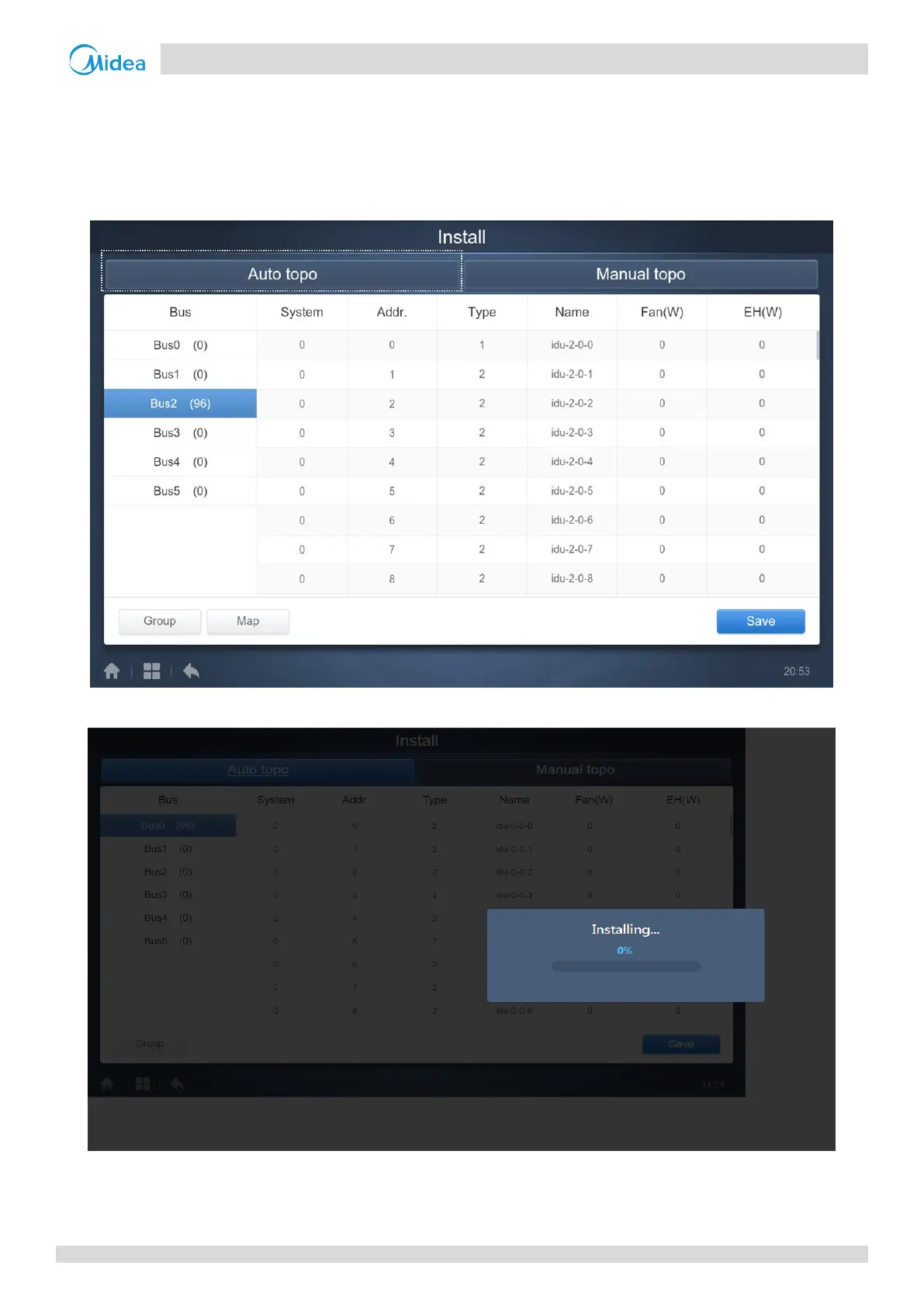

Functions
Auto T
opology:
Under this
topo
logy mode,
the
user
does not
requir
e
doing any special settings for the
units. He
just needs to connect
the
units
normally
and
do
the
I
P
settings
as
has
been
discussed
in
the
Ins
t
allat
ion
Part
of
this
manual.
After
clicking
on
the
“
Aut
o T
opo
”
tab, th
e con
tro
ller will b
egin t
o ident
ify the unit
s tha
t are c
onnect
ed with the s
ystem.
90
92
Table of Contents
Part 1 Introduction
4
Table of Contents
4
General
5
Safety Precautions
5
Attachments with the Box
7
CCM-270A/Ws Overview
8
CCM-270A/Ws Hardware Description
9
Dimensions
9
Back Wiring
10
Port Diagram
11
Energy Meter Introduction
12
CCM-270A/WS Numeric Analysis
13
CCM-270A/Ws Specifications
13
Comparison with IMMP-M
14
CCM-270A/Ws Network
15
Supported Models
16
Languages Supported
16
Commissioning
18
CCM-270A/WS Hardware Installation
19
Installation and Commissioning
19
Topology Modes
22
Flow Chart
25
Connections between ODU and IDU
27
Power Cable Connections
27
Network Connections
29
Pre Installation Settings
31
Auto Addressing Mode
36
ENC4 Switch Settings
36
Booting up of CCM-270A/WS
37
Login
38
Install the Idus
39
Checking the Installation Results
40
Set the Normal User Account
41
Energy Meter Installation
42
First Time Installation Checklist
45
Flow Chart for CCM-270A/WS Touch Screen Centralized Controller
45
Flow Chart for CCM-270A/WS Computer Website
46
Part 3 Functions
47
Start up
49
Login
50
Home Page
51
Overview of Indoor Units Running Status
51
Date and Time
52
Function Menu
52
Schedule for Today
52
Special Menu
52
Account
53
Control
54
Icons Description
54
Indoor Unit View- Group
59
Indoor Unit View - System
62
Indoor Unit View- Map
62
Schedule
64
Schedule View Types
65
Add Schedule
69
Report
76
Operating Duration
77
Running Record
79
Energy Statistics
80
Log
82
Export Function
83
Eco
85
Install
90
Edit
94
Group
95
Edit Map
99
Setting
104
Account
105
Date and Time Settings
108
Holiday Settings
110
Network Settings
111
General Settings
112
Mail Settings
113
Advanced Settings
116
Public Device
118
ECS Settings
119
Help
120
Comparison between Touch Screen and Computer Website Functions
121
Part 4 Troubleshooting
123
Basic Troubleshooting
124
Cannot Find the Equipment/Equipment Is Disconnected
124
Display Errors on the Webpage
124
Equipment Cannot be Started
124
Power Allocation for Public Devices
124
Wrong Error Code Displayed
124
CCM-270A/WS Does Not Support Other Languages
125
Failed to Execute the Weekly Plan
125
Failed to Find the Required Maps, While Importing Maps from USB Disk
125
Failed to Save the Group Operation
125
Failed to Upgrade the Equipment
125
Number of Indoor Units Is Less than the Number of Indoor Units Connected
125
Appendix
126
Appendix 1: Software Use Precautions
126
Appendix 2: Wired Controller Group
126
Appendix 3: Export File Samples
127
Appendix 4 : Introduction to IMMPRO System
130
