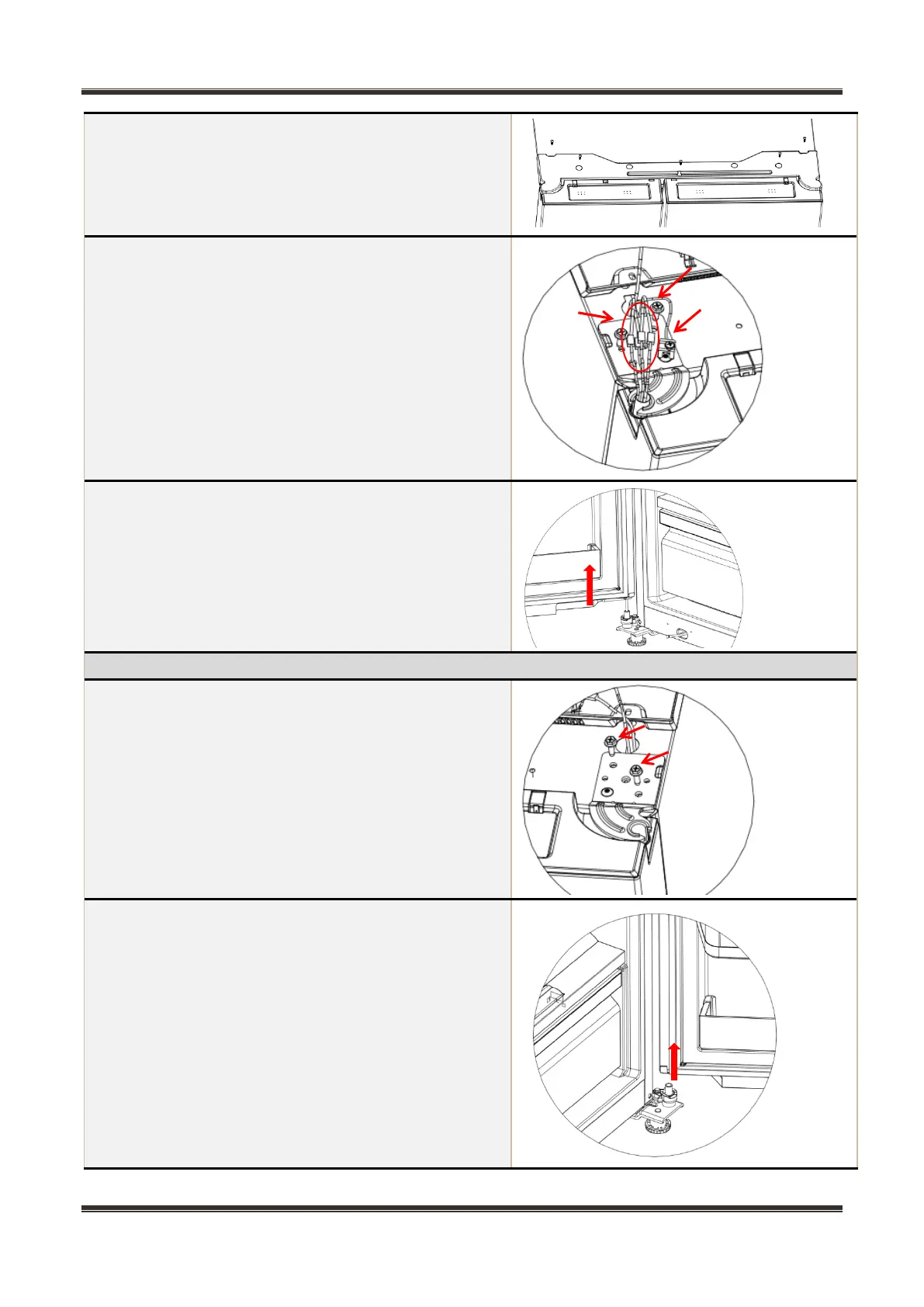

3) As shown as right photos, use screwdriver to remove
the 5 pcs screws, and then remove the upper hinge
cover.
1) Disconnect the 5pcs fast connectors, then use cross
screwdriver or socket spanner to remove the 2pcs M5
screws and 1 pc grounding screw by anticlockwise.
Note: please make sure the freezer door fit closely to
the cabinet; otherwise the refrigerator door may fall
down during above operation.
5) Lift up the freezer door until the hinge axis separated
from the axis hole of door, then carry the door to a
suitable place.
Disassembly of refrigerator door
1) Use cross screwdriver or socket spanner to remove
the 2 pcs M5 screws by anticlockwise, and then remove
the upper hinge.
Note: please make sure the refrigerator door fit closely
to the cabinet; otherwise the refrigerator door may fall
down during above operation.
2) Lift up the refrigerator door until the hinge axis
separated from the axis hole of door, then carry the door
to a suitable place.
