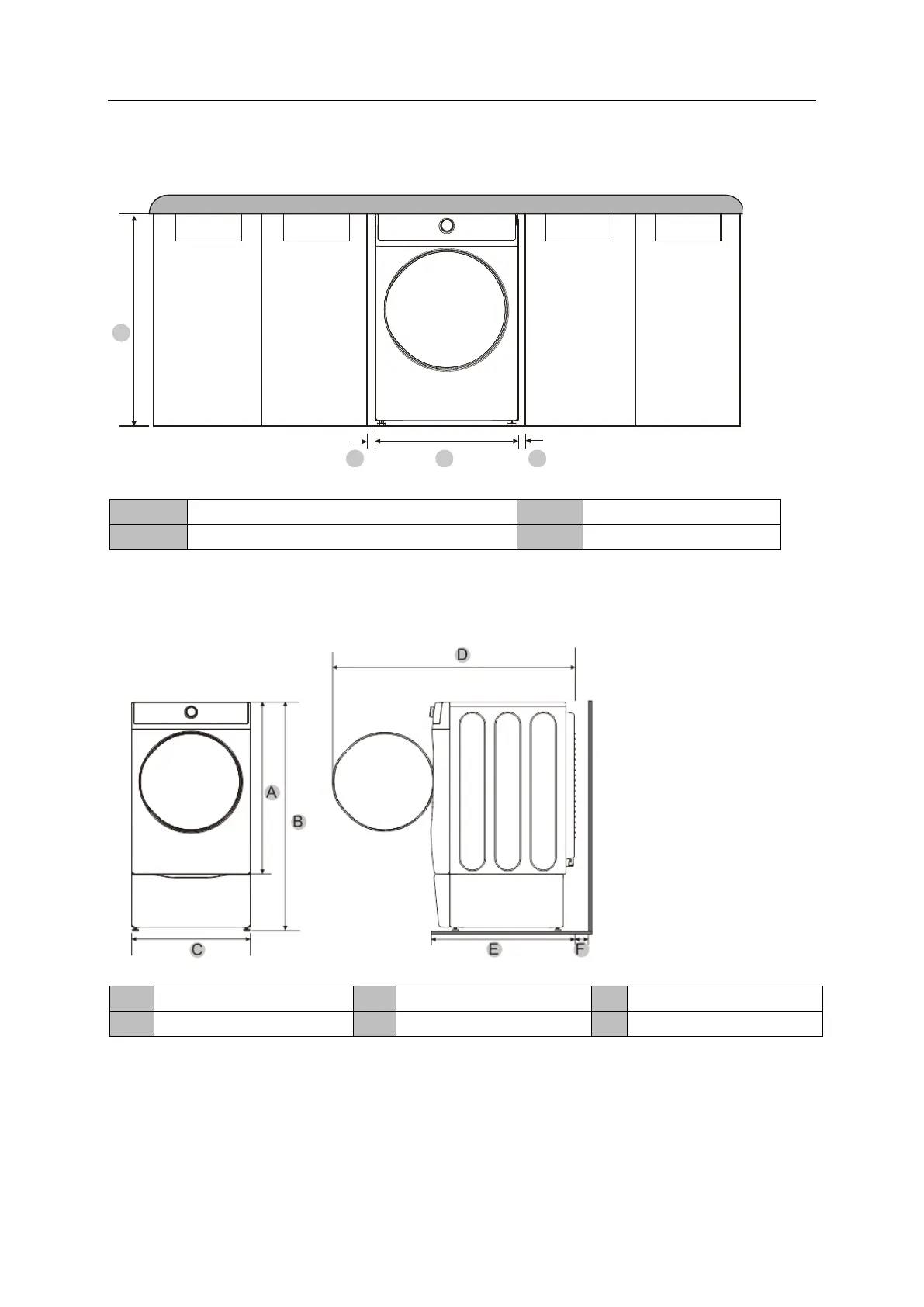

Undercounter installation
A
CB D
A
39.8 in. (1010mm)
C
27 in.(686mm)
B
1in.(25mm)
D
1 in.(25mm)
Installation with pedestal
A
39 in. (991mm)
C
27 in.(686mm)
E
33.7 in.(855mm)
B
51.9 in.(1317mm)
D
55.2 in.(1402mm)
F
5 in.(127mm)
