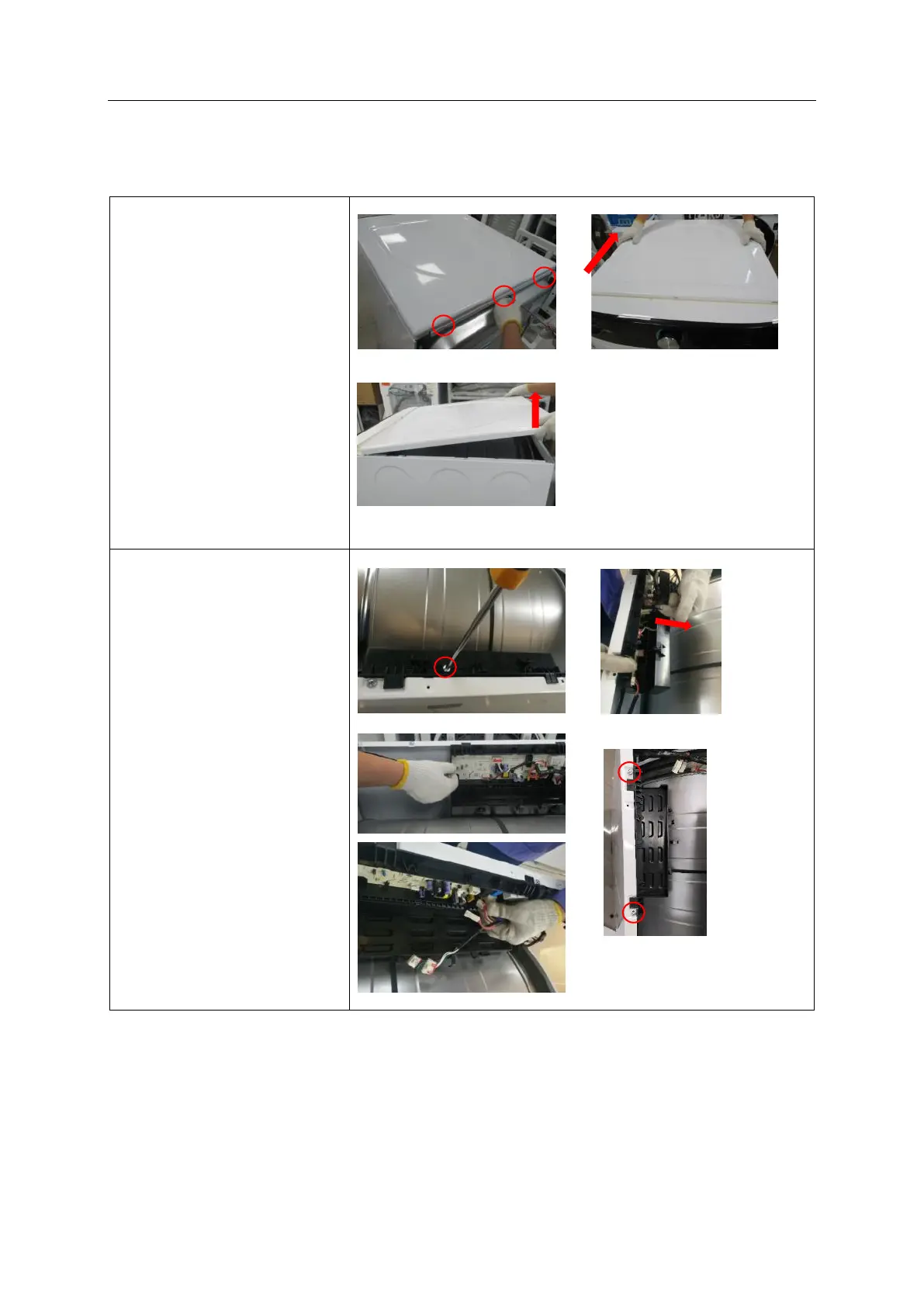

5. HOW TO DISASSEMBLY THE UNIT
1. Remove the top cover
plate
1.1 Remove the 3 screws
behind the top cover;
1.2 Push off the top cover
plate.
2.Remove the PCB kit
2.1 Remove 1 screw
that is used to fix the PCB
kit;
2.2 Open the PCB kit;
2.3 Pull out the terminals
from main control panel;
2.4 Remove 2 screws and
take down the PCB kit.
②
①
③
②
③
①
③
④
