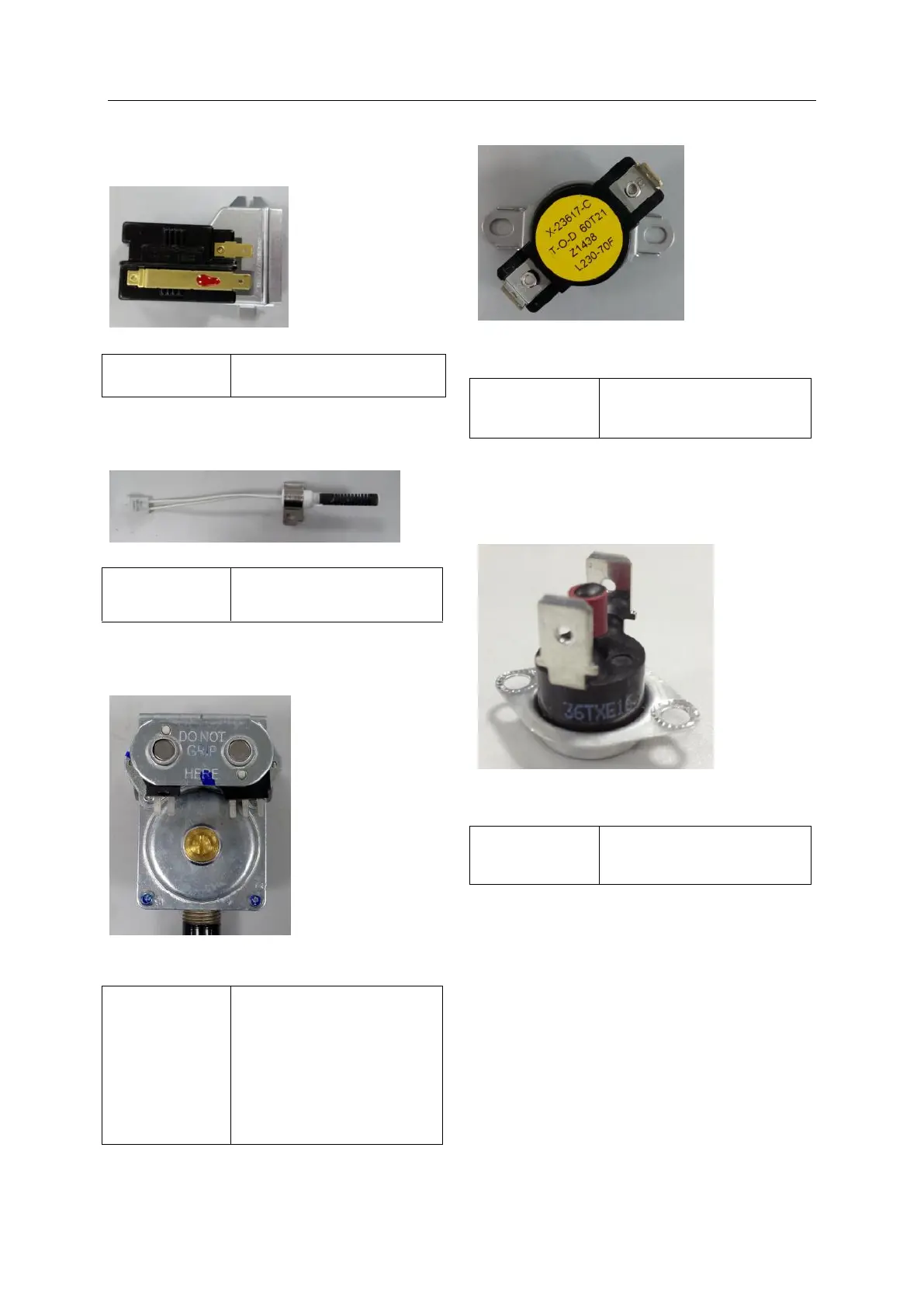

GAS MODELS ONLY
Flame sensor
resistance < 1Ω
If resistance is infinity, replace
Flame sensor
Lgniter resistance
40~400Ω
If resistance is infinity, replace
igniter
Valve1-2:
Resistance 1.2KΩ
Valve1-3:
Resistance 0.5KΩ
Valve4-5:
Resistance 1.2KΩ
If resistance is infinity, replace
Valve.
Thermostat Hi-
limit resistance
< 1Ω
If resistance is infinity, replace
The rmostat
Hi -limit .
Th ermostat
Thermal cut - off
resistance < 1Ω
If resistance is infinity, replace
Thermostat
Thermal cut-off.
The power supply will be off if the temperature is
too high. Then we need to press this red button
on the thermostat to restart the dryer.
10RS 120V
120V 60Hz
25M01A 120V 60Hz
Flame sensor
Igniter
Gas valve
230/160F 25A (60T21)
Hi-limit
Thermostat
Thermal cut-off
347
°F
, 25A
Thermal cut-off
Thermostat Hi-limit
