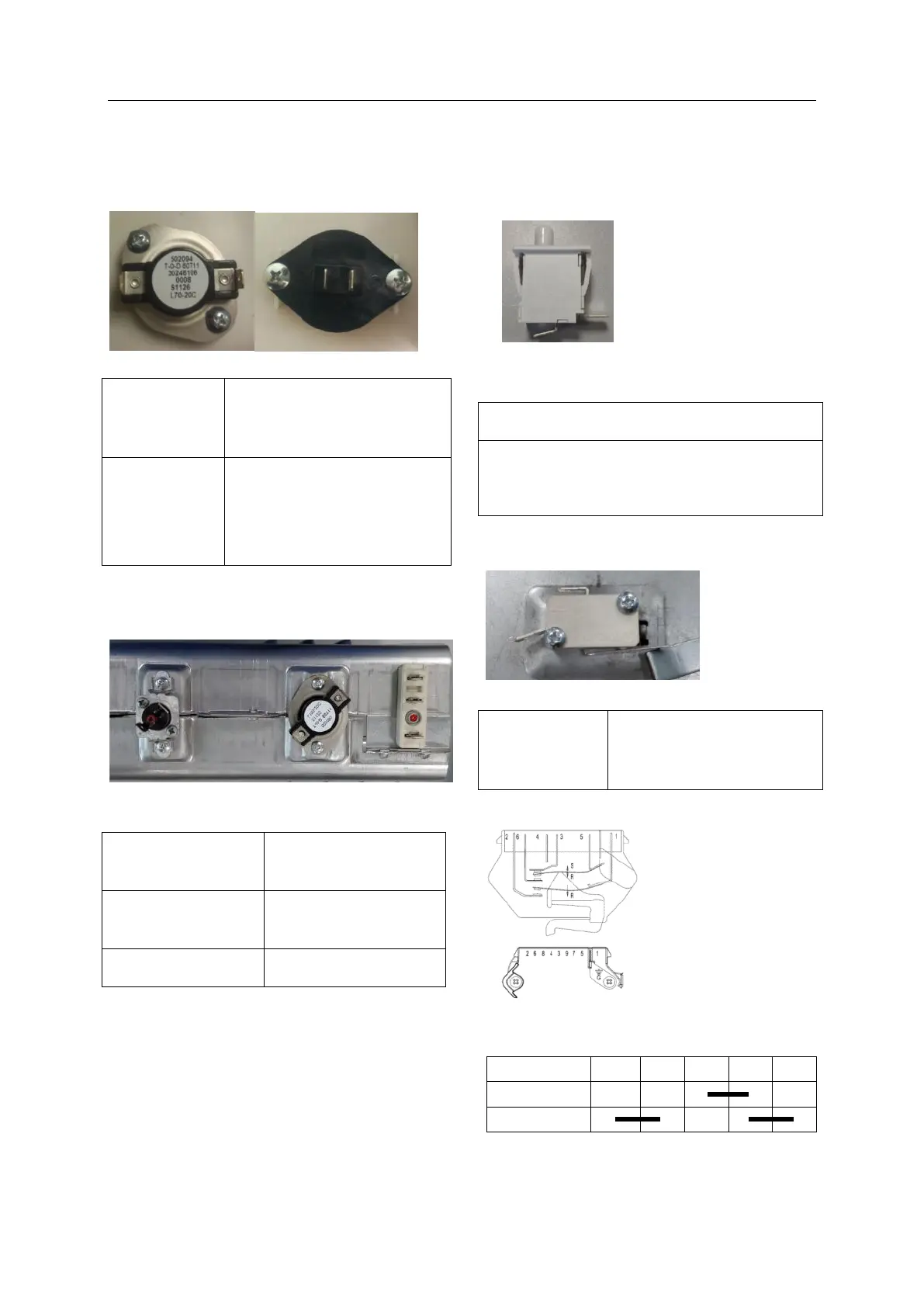

COMPONENT TESTING PROCEDURES
Regulating
Thermostat
resistance < 1Ω
(Electric & Gas)
If resistance is infinity, replace
Regulating Th ermostat.
Thermistor
resistance
40KΩ @
86°F
50KΩ @ 77°F
99KΩ @ 50°F
If resistance is infinity, replace the
Thermistor
Thermostat Thermal
cut-off resistance < 1Ω
(Electric models only)
If resistance is infinity,
replace Thermostat
Thermal cut-off.
Thermostat Hi-limit
resistance
< 1Ω
If resistance is infinity,
replace Thermostat
Hi-limit.
Heater resistance 20 Ω
If resistance is infinity,
replace Heater.
The power supply will be off if the temperature
is too high. Then we need to press this red
button on the thermostat to restart the dryer.
Measure resistance of the following terminals
(Electric & Gas):
1. Door switch: open
Terminal: “COM” – “NO” (1-2): ∞ Ω
2. Door switch push: On
Terminal: “COM” – “NO” (1-2): < 1Ω
Belt Safety Switch
(Electric & GAS)
- Lever open: Resistance value
< 1Ω
- Lever push: Resistance value:
∞ Ω
● Centrifugal Switch (Motor) (Electronic & GAS)
Contacts
Function
1M
2M
3M
5M
6M
Start
●
●
Run
●
●
●
●
●=Contact closed
Thermistor
Door switch
Regulating Thermostat
158/122
°F
, 25A HI-limit
347
°F
, 25A
Thermal cut-off
212/176
°F
, 25A
HI-limit
240V/5200W
Thermostat
Thermal cut-off
Thermostat
Hi-limit
Heater
Belt safety switch
250V, 16A
2.9~3.9Ω between
Pin# 3 and 4
3.2~4.2Ω between
Pin# 4 and 5
250V 16A
250V 16A
