Midea MDH210-V042/B01EHS-US User Manual

Service manual for Dryer Machine Midea America Company
-------------------------------------------------------------------------------------------------------------------------------------------------------
－ 47 －

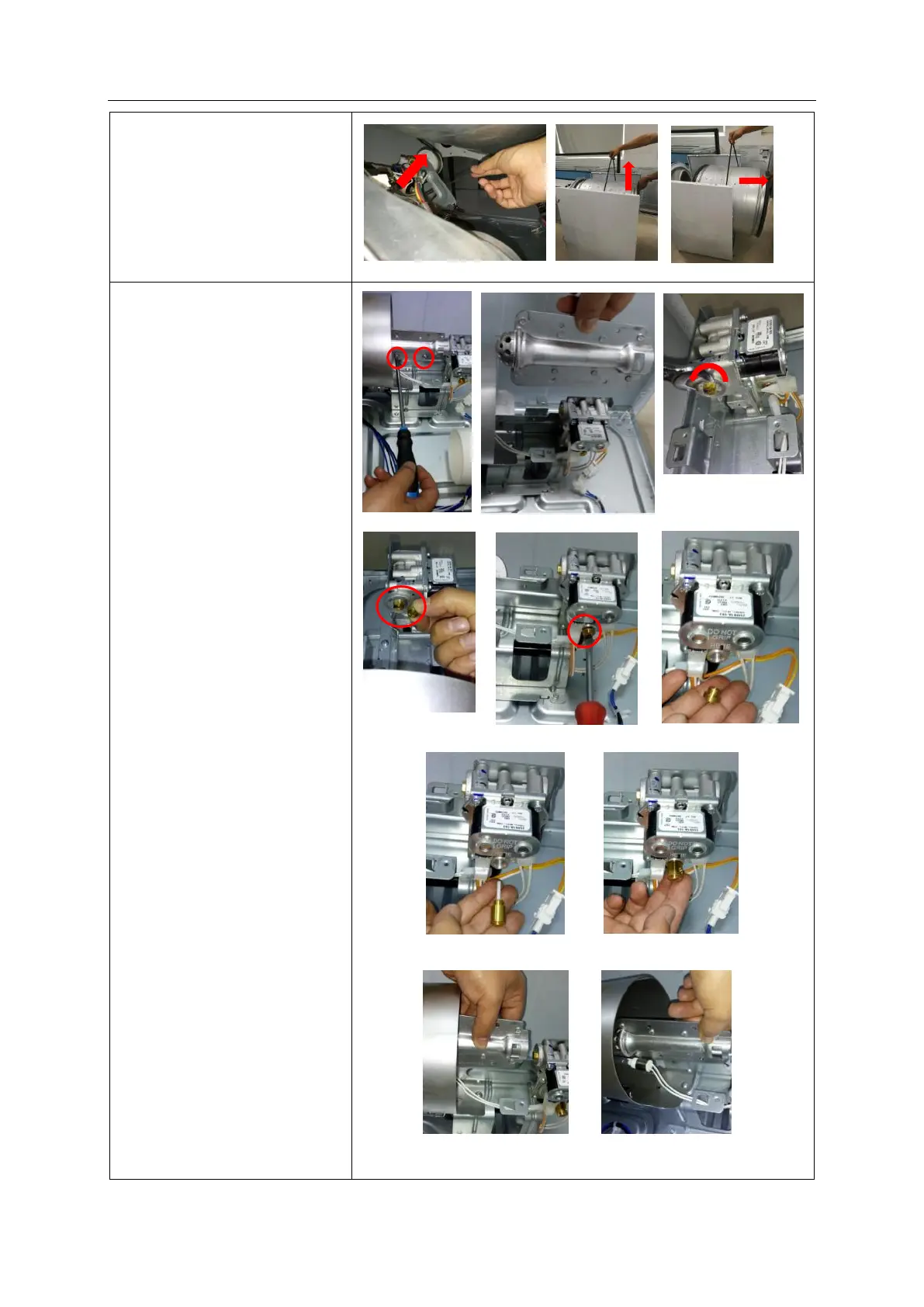

6. Take down the tumble
assy
6.1 Take down the belt
from the Motor;
6.2 Hold the belt and take
down the tumble assy.
7. Remove the nozzle for
LP (Gas model only)
7.1 Remove 2 screws
fixing the burner;
7.2 Take down the burner;
7.3 Remove the nozzle
with spanner 3/8", torque in
range from 25 to 45 in.lbs;
7.4 Replace the nozzle for
LP;
7.5 Remove the valve
cover from the gas valve;
7.6 Replace the valve bar;
7.7 Reinstall the burner.
Take care the position
between the burner and
ignitor.
②
③
①
④
⑤
①
⑤
⑥
⑥
⑦
⑦
②
③
