Homepage (zone 1) Addition page (zone 2)
If set DOUBLE ZONE and ROOM TEMP. to YES, meanwhile set WATER FLOW TEMP. to YES or NON, the following page will
be displayed. In this case, the setting value of zone 1 is T1S, the setting value of zone 2 is TS (The corresponding TIS2 is
calculated according to the climate related curves.)
Homepage (zone 1) Addition page (zone 2)
(Double zone is effective)
7.9 ROOM THERMOSTAT Menu
MENU > FOR SERVICEMAN > ROOM THERMOSTAT
As an alternative to controlling space heating/cooling modes according the M
thermal Mono unit’s leaving water temperature and/or the room temperature
detected by the temperature sensor in the M thermal Mono user interface,
separate room thermostat can be installed and used to control space
heating/cooling modes.
In ROOM THERMOSTAT the following parameters should be set.
ROOM THERMOSTAT sets whether or not room thermostats are installed. For installations with room thermostats, select
YES. For installations without room thermostats, select NON.
ROOM THERMOSTAT = NON: No room thermostat.
ROOM THERMOSTAT = MODE SET: Room thermostat can control heating and cooling individually.
ROOM THERMOSTAT=ONE ZONE: Room thermostat provides the switch signal to unit.
ROOM THERMOSTAT=DOUBLE ZONE: Indoor unit is connected with two room thermostat.

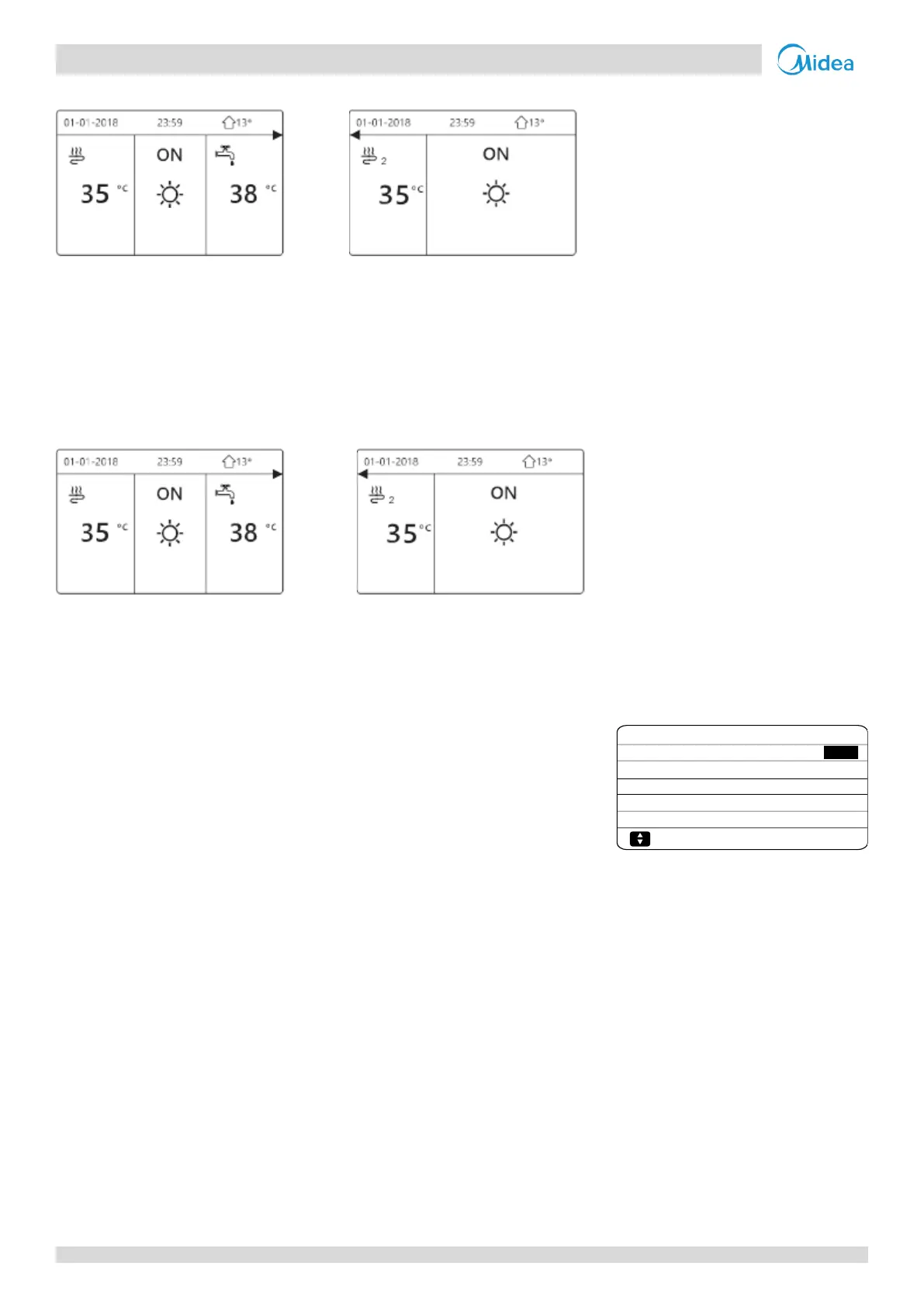

Figure 3-7.24: DOUBLE ZONE and set ROOM TEMP. to YES meanwhile set WATER FLOW TEMP. to YES or NON
Figure 3-7.25: ROOM THERMOSTAT menu
NON
6 ROOM THERMOSTAT
6.1 ROOM THERMOSTAT
ADJUST
To Next Page
