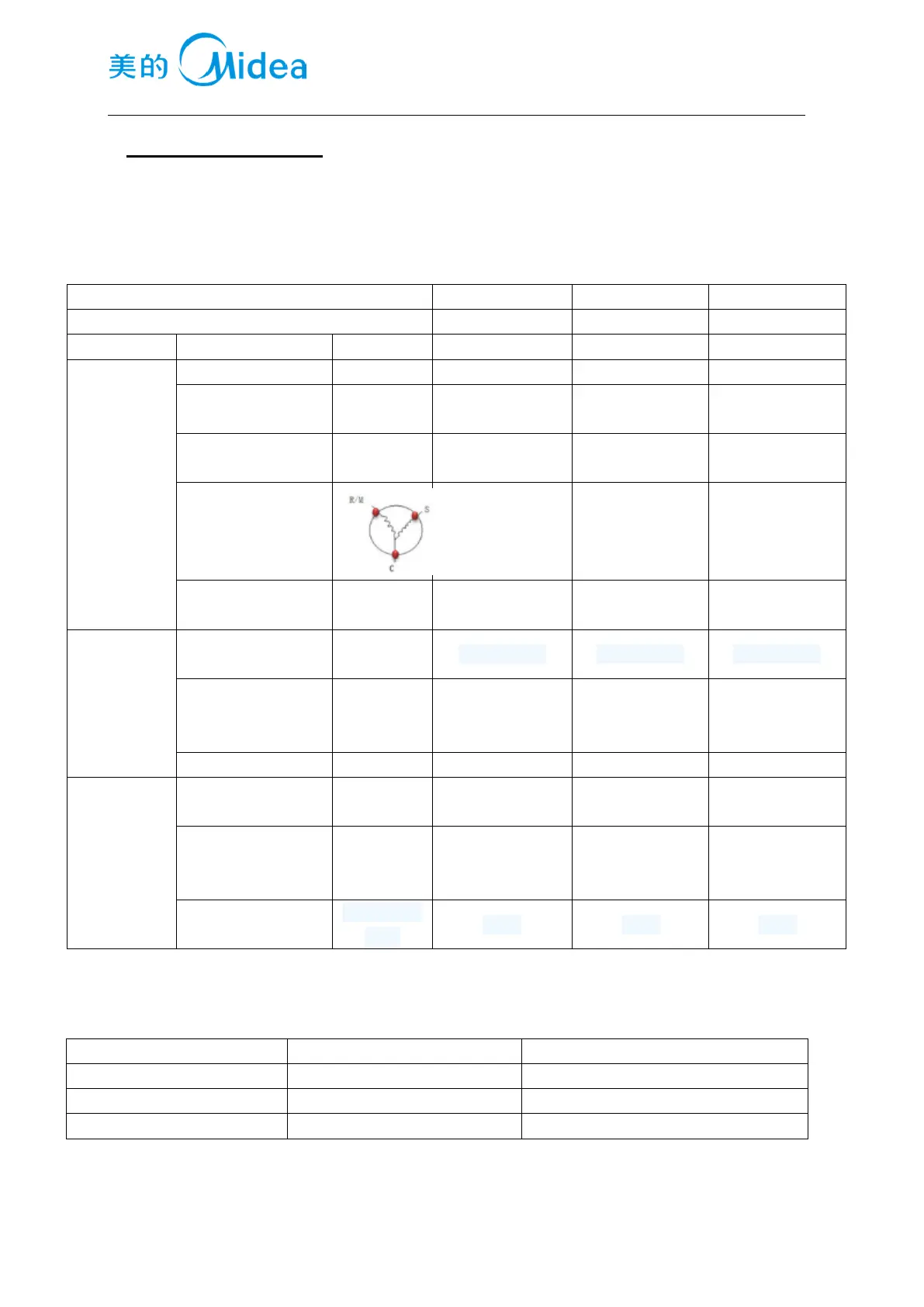

5.Product specification
5.1 typespecification(None)
5.2 Electrical parameters
Product Name
SO-BD386WE-UT
UL-BD386WE-SQ
UL-BD386WE-FQ
Product Code
22031010000120
22031010000112
22031010000107
Name
Item
Type
Specification
Specification
Specification
Compressor
Compressor
/
PE50H1F-4SVL
EE50H1C
HYE60Y42
Starter
PTC
8EA19C3/QP2-15/
QP2-15
QPE2-A4R7MD3
QP2-4R7
Overload protector
OLP
3TM166TF2/DRB
18T61A1
DRB31T61A1
DRB33S61A1
Winding resistance
of compressor wiring
terminal
Rmc:10-20Ω
Rsc:30-50Ω
Rms=Rmc+Rsc
Rmc:10-20Ω
Rsc:30-50Ω
Rms=Rmc+Rsc
Rmc：10～20Ω
Rsc：30～50Ω
Rms=Rmc+Rsc
Variable frequency
driver board
/
/
/
/
Motor
Fan motor of the
freezing chamber
DC12V/≤4W
DC12V/≤4W
DC12V/≤4W
Ventilation door of
the refrigerating
chamber
/
/
/
Condensation fan
/
/
/
Lights inside
the
refrigerator
Lights inside the
freezing chamber
240V/40W
125V /40W
125V /40W
Lights inside the
refrigerating
chamber
/
/
/
/
Switch of the
refrigerator door
mechanicals
witch
sector
sector
sector
5.3Inside temperature
Temperature tolerance ≤ 2
o
C
Compartment
The highest (
o
C)
Lowest (
o
C)
Freezing
-24
-26
Refrigerating
/
/
Variable temperature
/
/
