Service manual, 2016-12
24 / 42

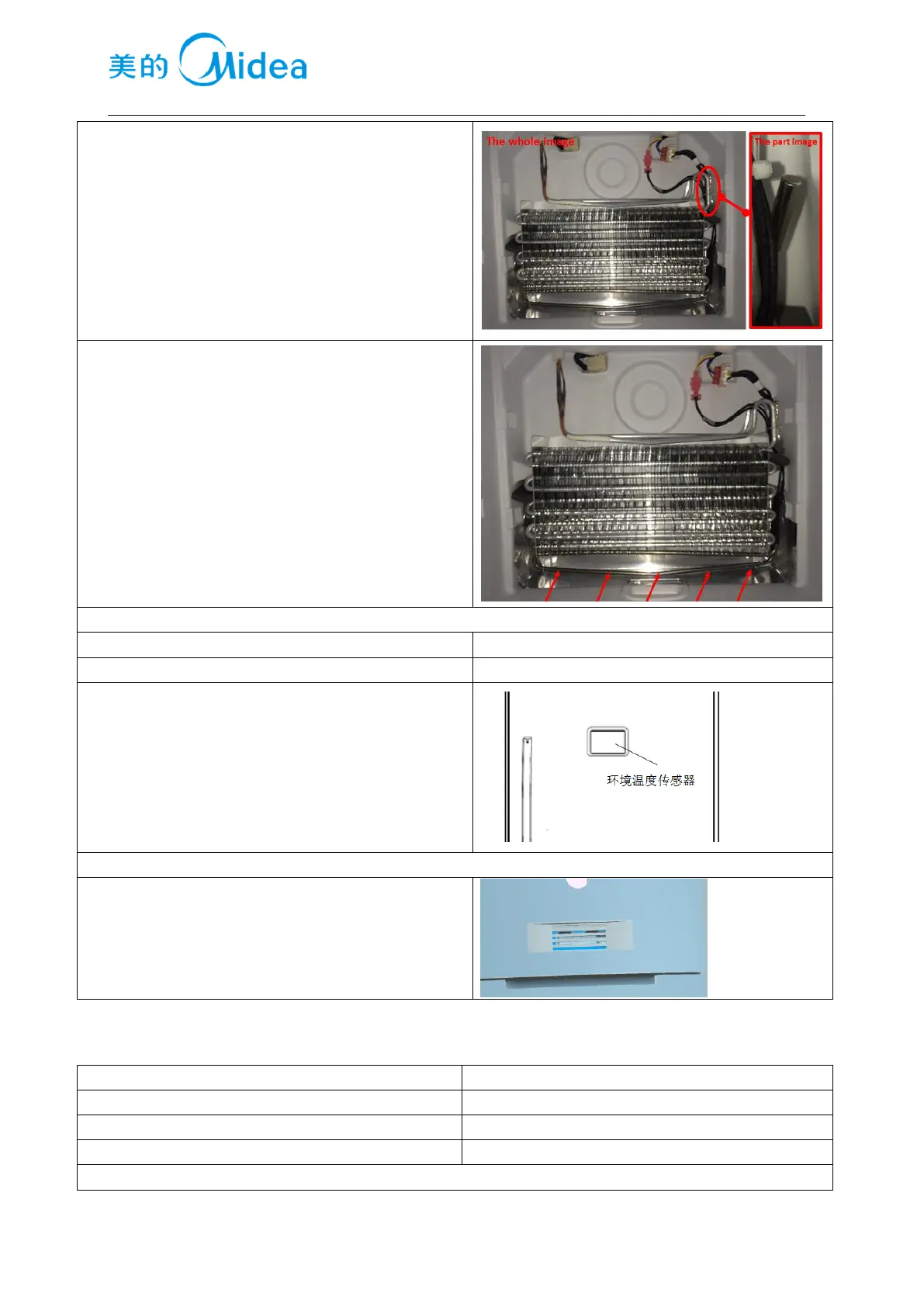

Defrost sensor
The defrost sensor is located on top of the evaporator.
1） Disconnect the connector of defrost sensor
2） Cut off the band which fixes the sensor.
3） Separate the sensor and the evaporator.
*,Don’t break the welding of the evaporator in case that
only the sensor needs to be replaced.
Defrost heater
The defrost heater is located at bottom of the evaporator.
1） Disconnect the connector of defrost heater.
2） Cut off the band which fixes the defrost heater.
3） Take off the defrost heater from the evaporator.
*,Don’t break the welding of the evaporator in case that
only the defrost heater needs to be replaced.
Ambient temperature sensor
Ambient temperature sensor
Ambient temperature sensor
The ambient temperature sensor is placed in the display
panel, it send the signal to the MPU
Freezer temperature sensor is placed in the upper position
of air duct cover
8.6Compressor case
Rear cover and compressor case
Terminal box of the compressor
Piping system in the compressor case
