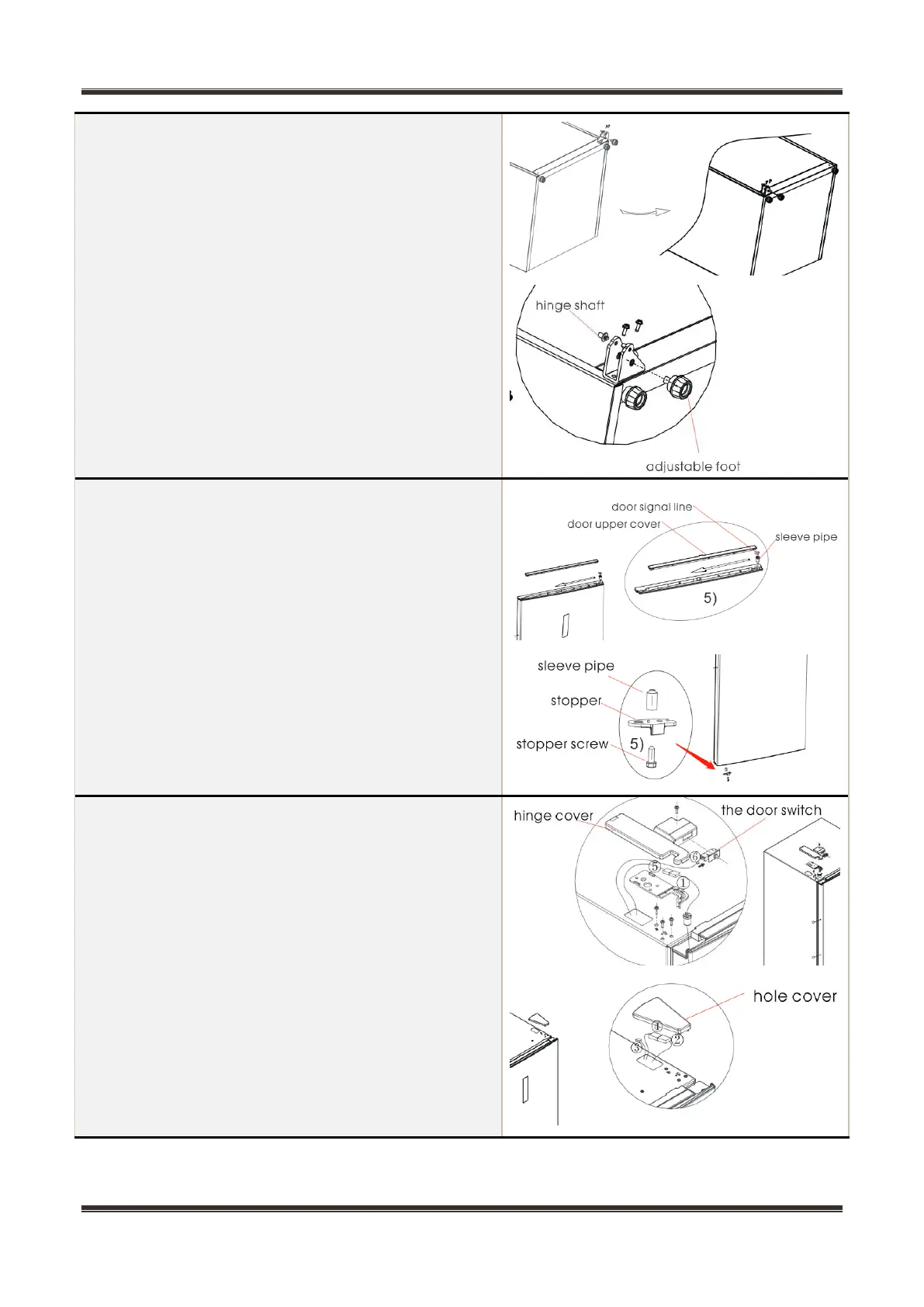

4)Dismantle the door and right bottom hinge
assembly(hinge shaft &adjustable foot &hinge),
disassemble the right bottom hinge assembly and
assemble the hinge shaft and adjustable foot on the
other side of hinge, then assemble the whole hinge
assembly on the other side of refrigerator.
5）Remove the door upper cover, install the upper hinge
sleeve, door signal line to the other side and install the
door upper cover. Dismantle the right door stopper,
sleeve pipe from the right bottom of door, insert the
sleeve pipe into hinge hole of left bottom of door, and
take out left door stopper from the accessory bag, and
assemble it on left bottom of door, the right door stopper
could be reserved for future use
6）Take out the left top hinge, left top hinge cover from
accessories package. Place the door on bottom hinge,
and mount left top hinge. Connect signal line terminal ⑤
with signal line terminal①, connect signal line terminal
⑥ to the door switch connect signal line terminal ②
with signal line terminal④; Mount top hinge cover and
hole cover.
