6. Refrigeration system

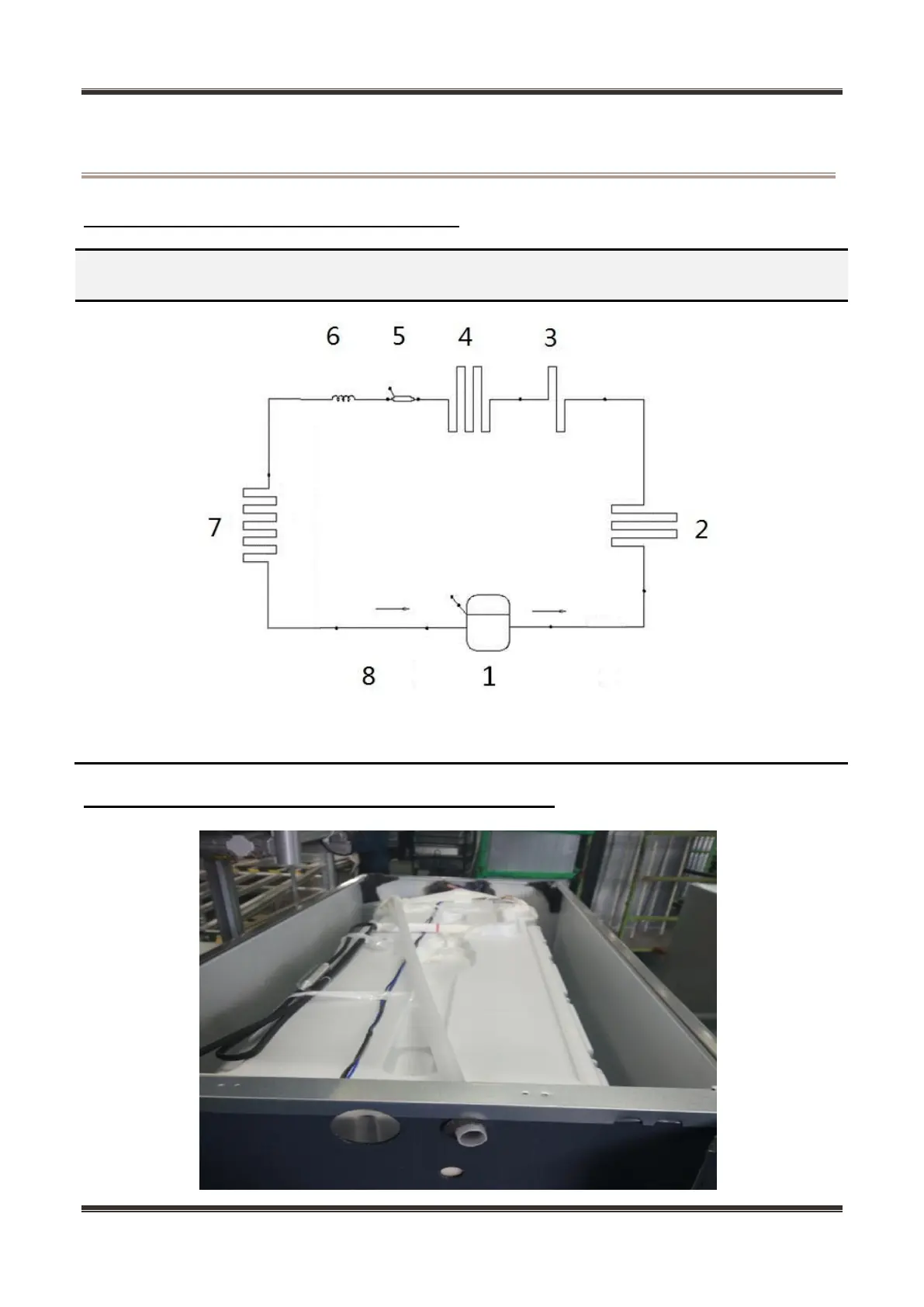

6.1 Refrigeration system working principle
1Compressor→2Right condenser→3Anti-condensation tube→4Left condenser→5Dry filter→6Capillary
tube→7Evaporator→8Suction tube→1Compressor
(The picture is only for reference, and specific appearance and configuration are subject to the real
product)
6.2 Cooling pipeline and drain pipe inside the cabinet
