8.4 Sensor R/T table
Tx(℃)
Tx(℉)
R（KΩ）
Tx(℃)
Tx(℉)
R（KΩ）
Tx(℃)
Tx(℉)
R（KΩ）
-30
-22.00
33.81
-5
23.00
8.392
20
68.00
2.501
-29
-20.20
31.85
-4
24.80
7.968
21
69.80
2.391
-28
-18.40
30.01
-3
26.60
7.568
22
71.60
2.287
-27
-16.60
28.29
-2
28.40
7.190
23
73.40
2.188
-26
-14.80
26.68
-1
30.20
6.833
24
75.20
2.094
-25
-13.00
25.17
0
32.00
6.495
25
77.00
2.005
-24
-11.20
23.76
1
33.80
6.175
26
78.80
1.919
-23
-9.40
22.43
2
35.60
5.873
27
80.60
1.838
-22
-7.60
21.18
3
37.40
5.587
28
82.40
1.761
-21
-5.80
20.01
4
39.20
5.315
29
84.20
1.687
-20
-4.00
18.90
5
41.00
5.060
30
86.00
1.617
-19
-2.20
17.87
6
42.80
4.818
31
87.80
1.550
-18
-0.40
16.90
7
44.60
4.589
32
89.60
1.486

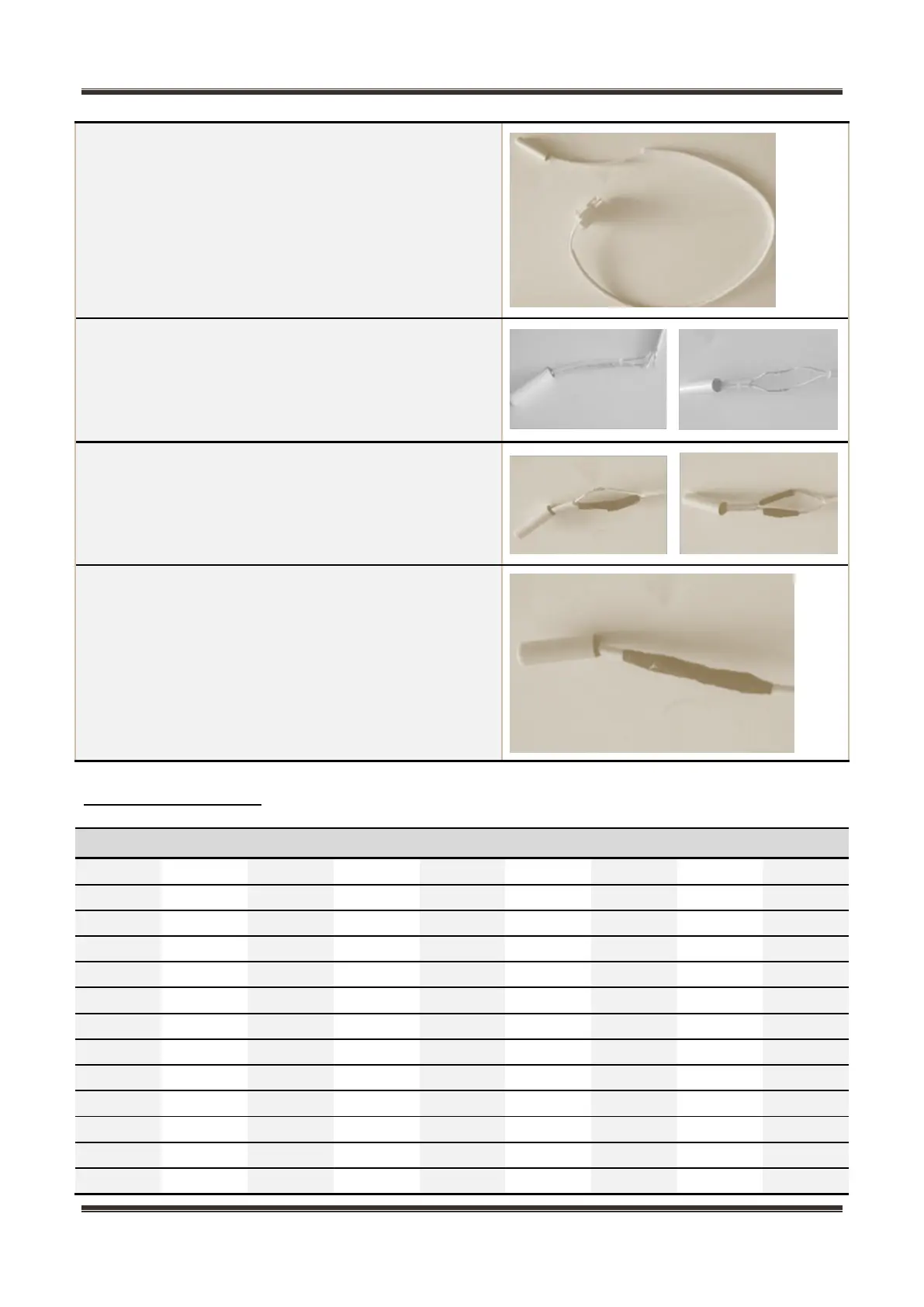

Take out a new sensor to cut the head of sensor.
(Spare parts code：11201007000795) Its technical
specifications apply to all MIDEA refrigerators.
Strip off the head of the sensor and connect it.
Wrap the two wires together with insulation tape.
Wrap the two wires together.
