Midea UR-BD240WE-ST

Service Manual_2020-V1.0
31

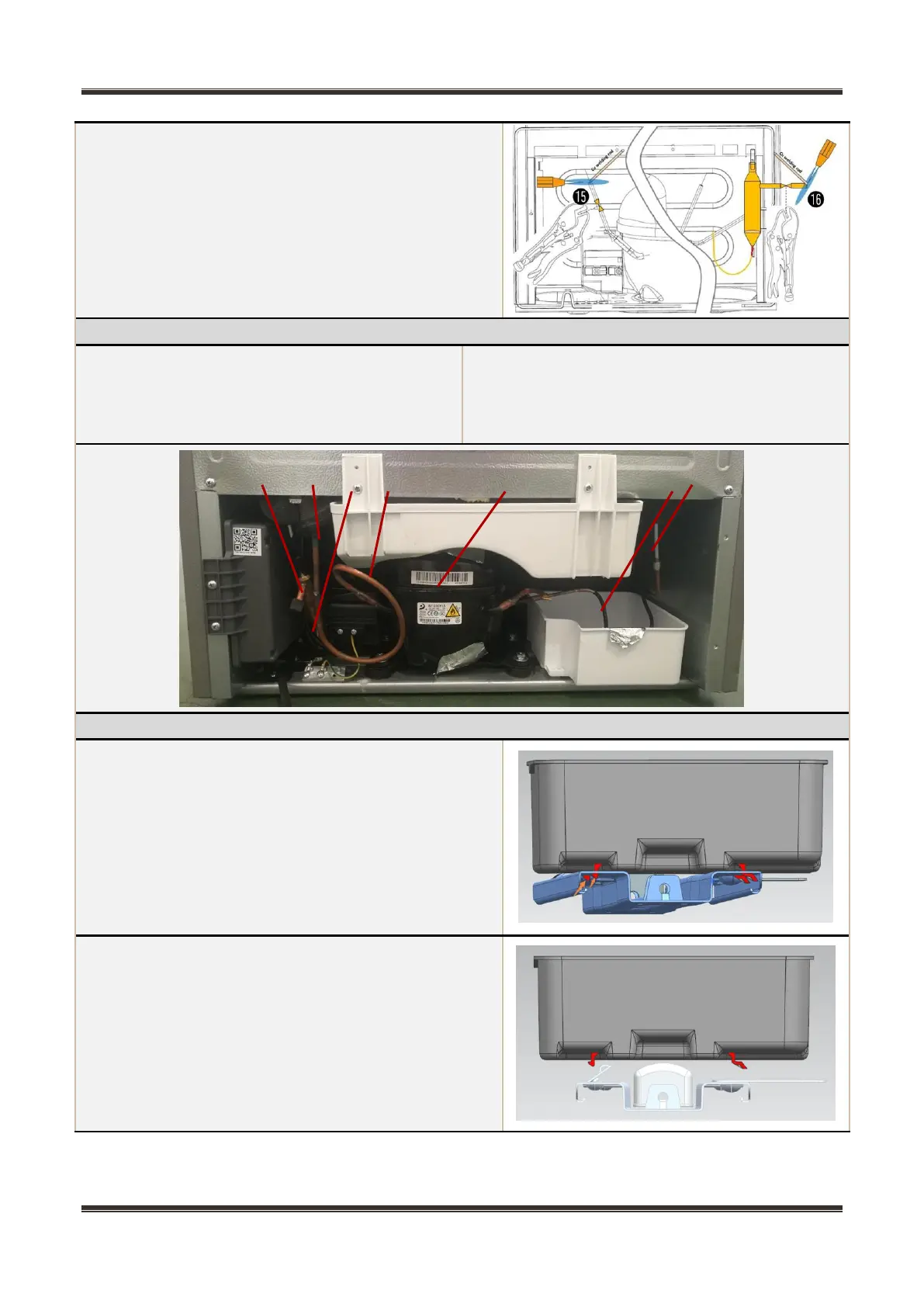

15）Use the vise grip pliers clamp the middle of the
process pipe, then seal welding process tube⓯⓰.
Piping system in the compressor case
1.Compressor
2.Exhaust transition pipe
3.Condenser
4.Dry filter
5.Capillary
6.Suction pipe
7.Return transition pipe
Drain tray
1）Disengage the drain tray buckle out of the compressor
bottom plate installation hole.
2）Replace the drain tray, the reverse process can
complete installation.
1
2
3
4
5
6
7
