Midea WQP6-3603A

Lave vaisselle ELVC 491B
15

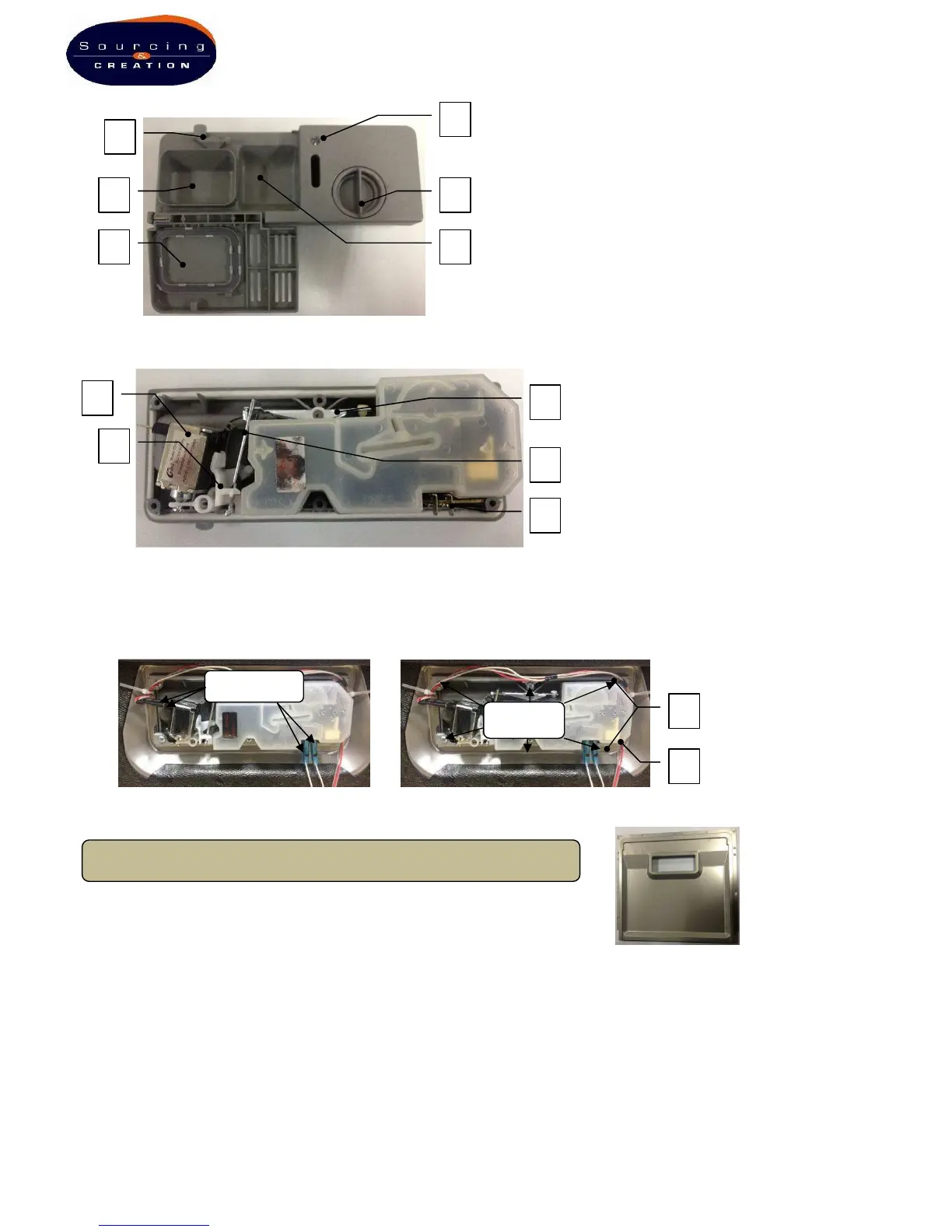

Part Name: 1
–
cover catch
2
–
detergent power
compartment
3 – cover 4 –sight glass 5 – rinse agent cap
6 – detergent tablet compartment
Part Name: 1
–
electromagnetic valve 2
–
lever
3 – plunger 4 – connecting rod
5 – magnetic sensor
Removal and Replacement
1. Remove outer door assembly. (see outer door removal and installation)
2. Pull out all terminals of dispenser. Then remove all screws for fixing dispenser.
Part Name: 1
–
dispenser brackets
2
–
dispenser
3. Reverse the above procedure to install. And check out all connectors connected well.
Caution : Inner door of edges are sharp.
Removal and Replacement
1. Remove outer door assembly. (see outer door removal and installation)
2. Remove control panel .(see control panel removal and installation)
3. Remove dispenser. (see dispenser removal and replacement)
4. Remove all screws for fixing inner door to right hinge assembly and left hinge assembly.
Inner Door
5
1
2
3
4
6
4
1
2
3
5
t
erminal
s
2
1
Screws
