Midea WQP6-3603A

Lave vaisselle ELVC 491B
7

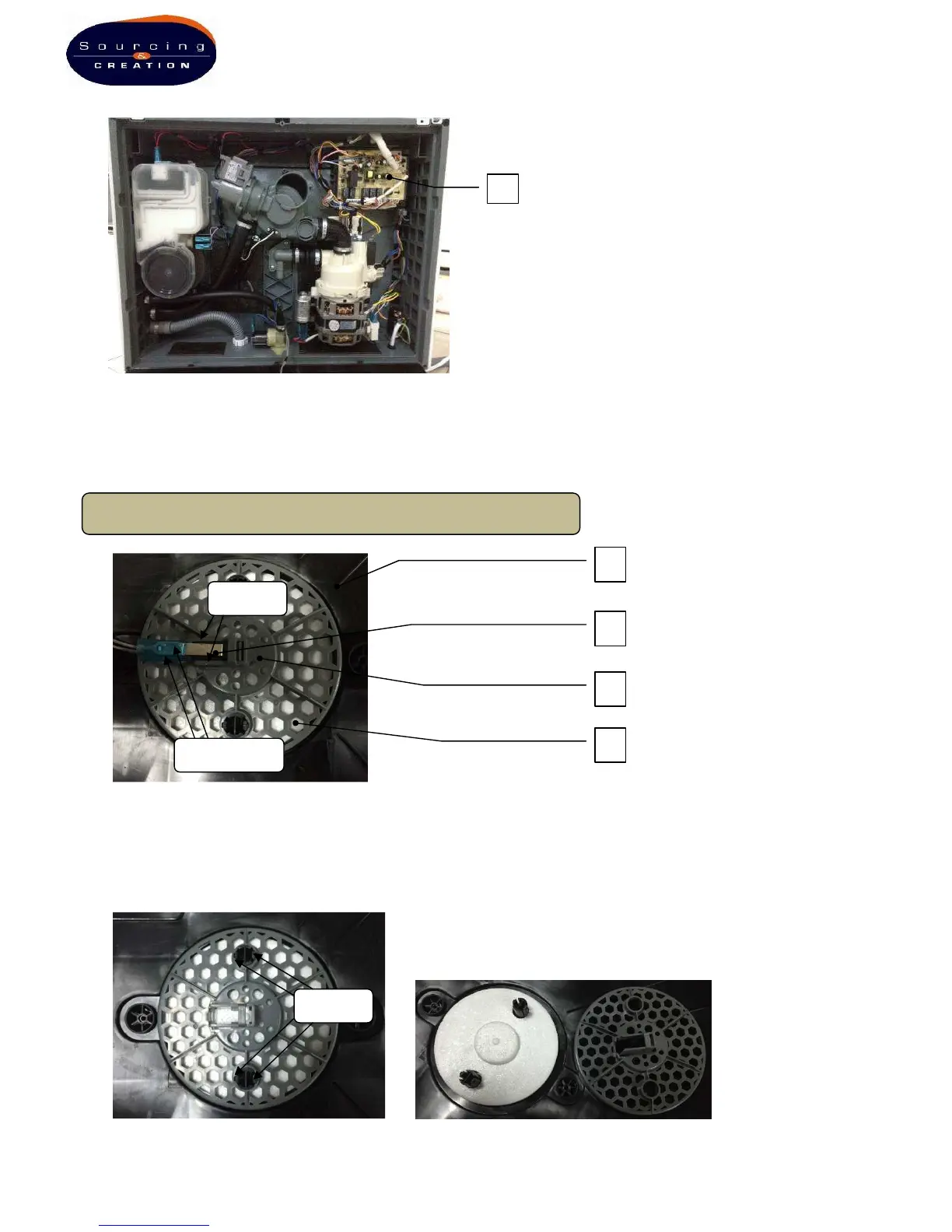

Part name: 1 – protecting box 2 – main control board
Note : mark all housings and terminals’ positions and colors before pulling out them.
Note : some terminals are locking terminals.
5. Reverse the above procedure to install. And check out all connectors connects well.
Part Name: 1
–
cover of bottom board
2
–
microswitch
3 – floater holder 4 – floater
Removal and Replacement
1. Remove cover of bottom board. (see main control board removal and replacement)
2. Pull out all terminals of microswitch.
3. Unfit snaps fixing microswitch to floater holder.
F
loater assembly
2
2
1
3
4
Terminlals
S
naps
S
naps
