Midea WQP6-3603A - Heating Pump Assembly

Lave vaisselle ELVC 491B
9

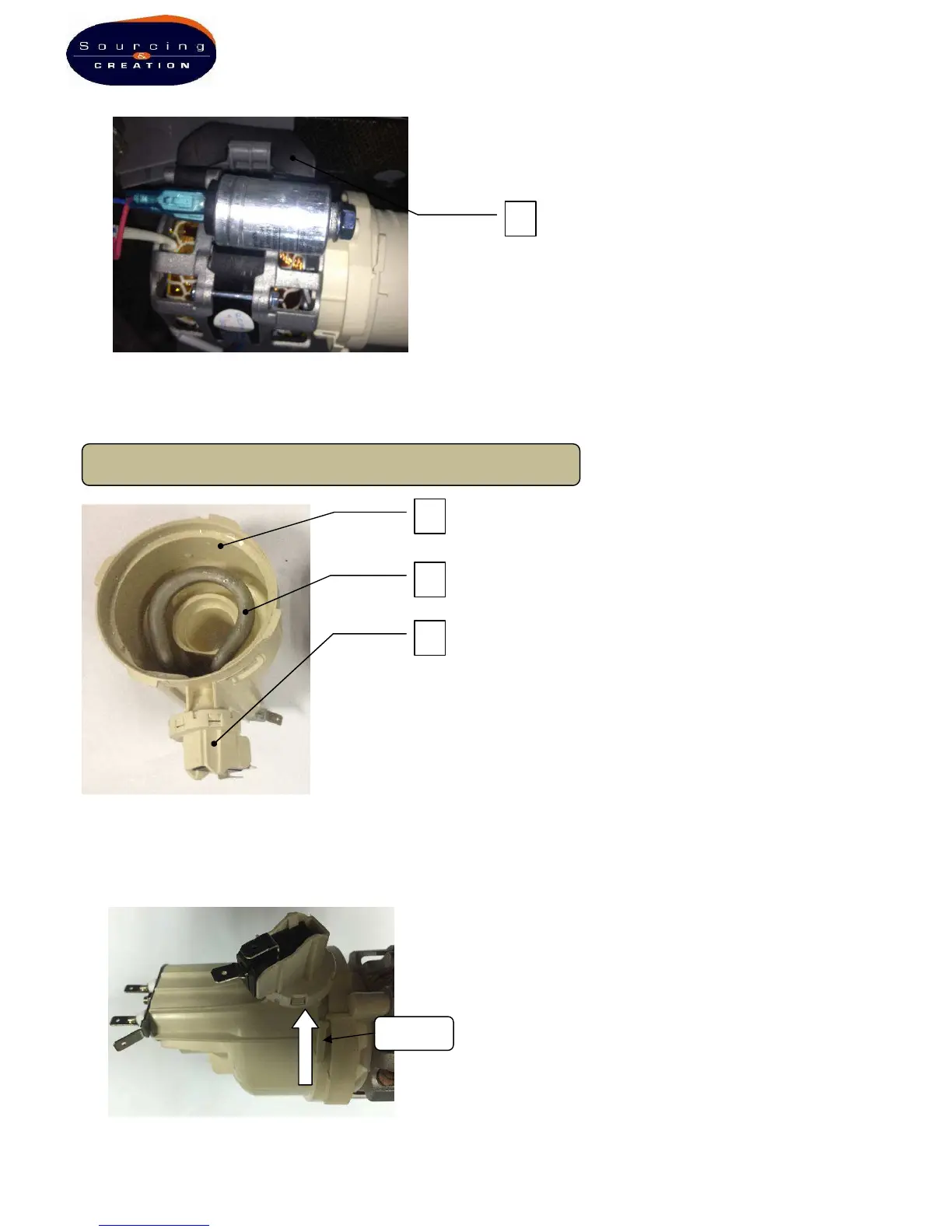

Part Name: 1 – motor hunger
3. Remove clamps fixing heating pump motor assembly to sump of bottom board.
4. Unfit motor hungers fixing heating pump motor assembly to bottom board.
5. Reverse the above procedure to install. And check out all connectors connected well.
Part Name: 1
–
upper pump cover
2
–
heating element
3 – pressure switch assembly
Removal and Replacement
1. Take out heating pump motor assembly from the dishwasher machine. (see main heating
pump motor assembly removal and replacement)
Heating pump
assembly
2
1
3
S
nap
1
