GRX-3000
Midtronics bv. Lage Dijk-Noord 6 IJsselstein NL
www.midtronics.com
18
Chapter 5: Diagnostic Charging
The GRX Battery Diagnostic Station will determine the
internal condition of a battery before attempting to apply a
charge to it.
Before performing a diagnostic charge on a battery installed
in a vehicle, make sure all vehicle accessory loads are o, the
key is not in the ignition, and the doors are closed.

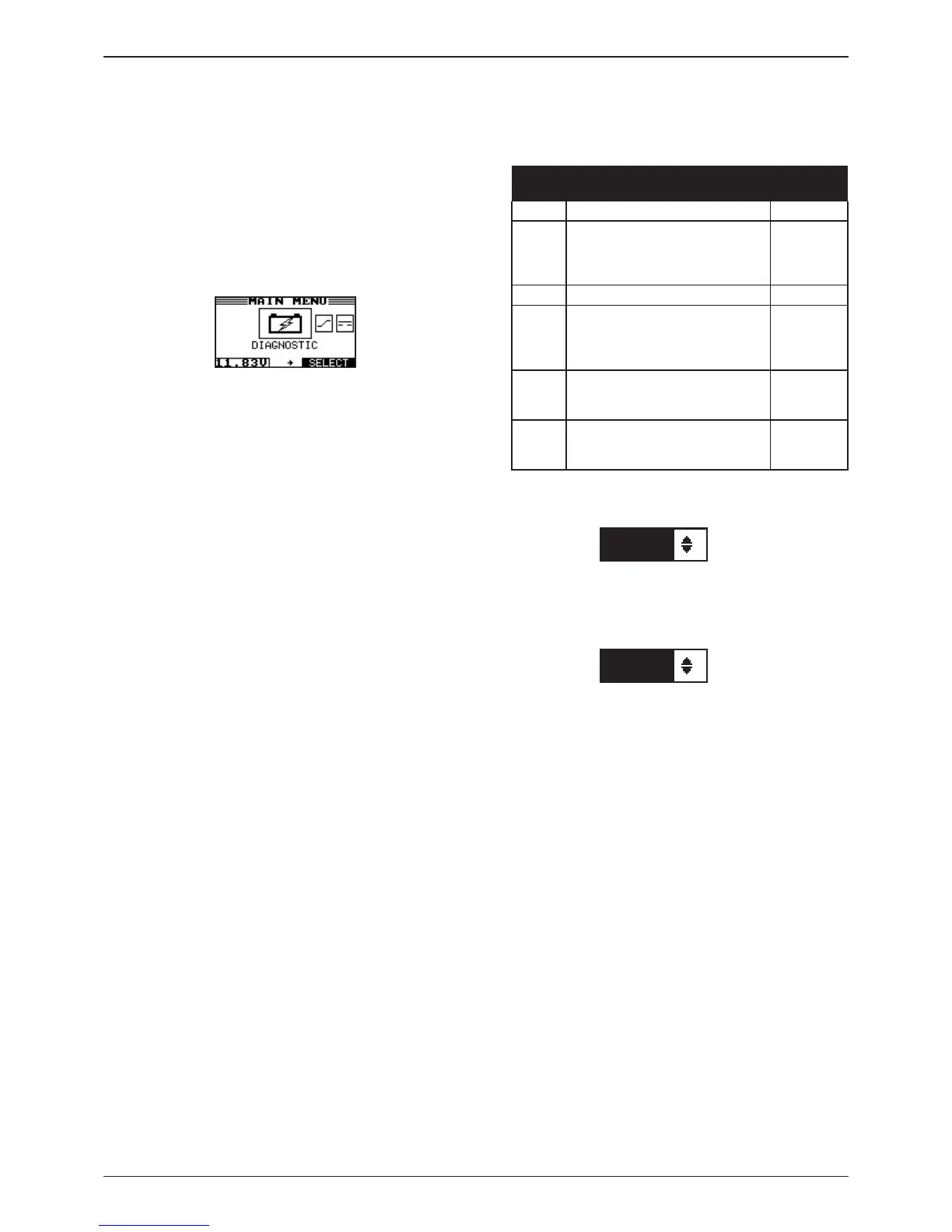

1. From the MAIN Menu, highlight the DIAGNOSTIC icon
and press the SELECT key.
2.
Use the UP () or DOWN () ARROW key
to select the
battery LOCATION, or press the corresponding numeri-
cal keys to move the dot to the option button of your
choice.
1 OUT OF VEHICLE
2 IN VEHICLE
Press the NEXT soft key to continue.
3.
Use the UP () or DOWN () ARROW key
to select the
BATTERY TYPE, or press the corresponding numeri-
cal keys to move the dot to the option button of your
choice.
1 REGULAR
2 AGM
3 SPIRAL
4 GEL
Press the NEXT soft key to continue.
4.
Use the UP () or DOWN () ARROW key
to select the
RATING UNIT (TEST STANDARD), or press the corre-
sponding numerical keys to move the dot to the option
button of your choice.
1 EN
2 SAE
3 DIN
4 IEC
5 JIS
If you select JIS, the analyzer will ask for the JIS part
number. Scroll to the part number or type in the JIS part
number with the alphanumeric keypad.
Press the NEXT soft key to continue.
Battery Standards
Rating
System
Description Range
EN
Europa-Norm
100 to 1700
SAE
Cold Cranking Amps (specied by
SAE): The amount of current a battery
can provide at 0 ºF
(–17.8 ºC).
100 to 1700
DIN Deutsche Industrie-Norm 100 to 1000
IEC International Electrotechnical
Commission
100 to 1000
JIS Japanese Industrial Standard:
embossed on the battery as a
combination of numbers and letters
72 numbers
from 26A17
to 245H52
AH Amp Hour: A measure of reserve
capacity. This is not a battery
standard
5 to 250 Ah
5. Press the UP () or DOWN () ARROW key, or use the
numeric keys to enter the BATTERY RATING in CCA.
500 A(EN)
Press NEXT.
6. Press the UP () or DOWN () ARROW key, or use the
numeric keys to enter the BATTERY RATING in Ah.
? AH
Press NEXT after entering or SKIP if value is unknown.
If you don’t change the default Ah value (indicated by an ?)
the charger will use the default Ah rating that comes closest
to the entered CCA value.
There can be a dierence between the entered CCA value
and the default Ah value since there is no direct one to one
relation between the two. The default Ah value will come
close but there can be dierences found in the eld. The
advise is to always enter the true Ah value of the battery.
Chapter 5: Diagnostic Charging
