DMM Menu

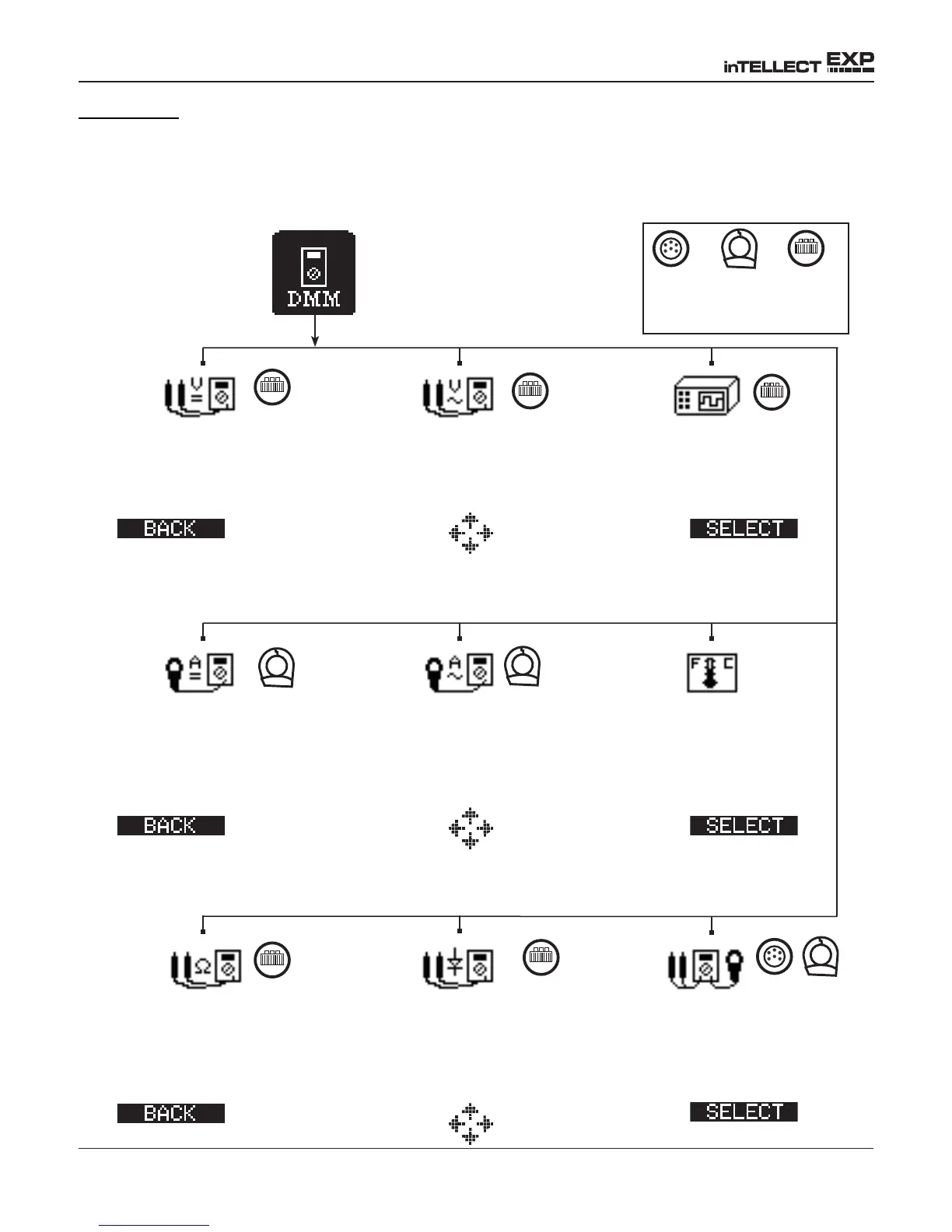

The DMM Menu has icons for a temperature sensor and 8 test meters, some of which require different
test leads. The available leads depend on the EXP model purchased. The cable drop leads with
probes is an option that you can purchase separately.
METERS (Screen 1)
METERS (Screen 2)
METERS (Screen 3)
Measures voltage within
a range of 0 to 60 Vdc.
Measures voltage within
a range of 0 to 24 Vac.
Voltage trace with time
and frequency measure-
ments.
Tests the strength of
the direct current flow
through a circuit.
Tests the strength of the
alternating current ow
through a circuit.
Sensor that displays tem-
perature in degrees F
or C (units you can select
in the Utilities Menu.)
Tests a circuit for con-
tinuity and resistance
measured in ohms (Ω).
Tests a diode for forward
voltage drop.
Measures two signals
simultaneously: DC volt-
age and amperage.
to Main Menu
to Main Menu
to Main Menu
an icon
an icon
an icon
Required test leads
Amp
clamp
Battery
test
DMM
clamps or
probes
Probes
only
