Battery Test Results
After the test the EXP will display one of ve battery decisions with the complete results in a series of
screens as shown in Figure 14. Use the UP/DOWN ARROW keys to scroll through each result. To send
the results to an IR printer, press the PRINT soft key. To return to the Main Menu, press the END soft
key, or to continue testing if you’ve selected the system text, press the NEXT soft key. You’ll have the
opportunity to print all the results at the end of the system test.

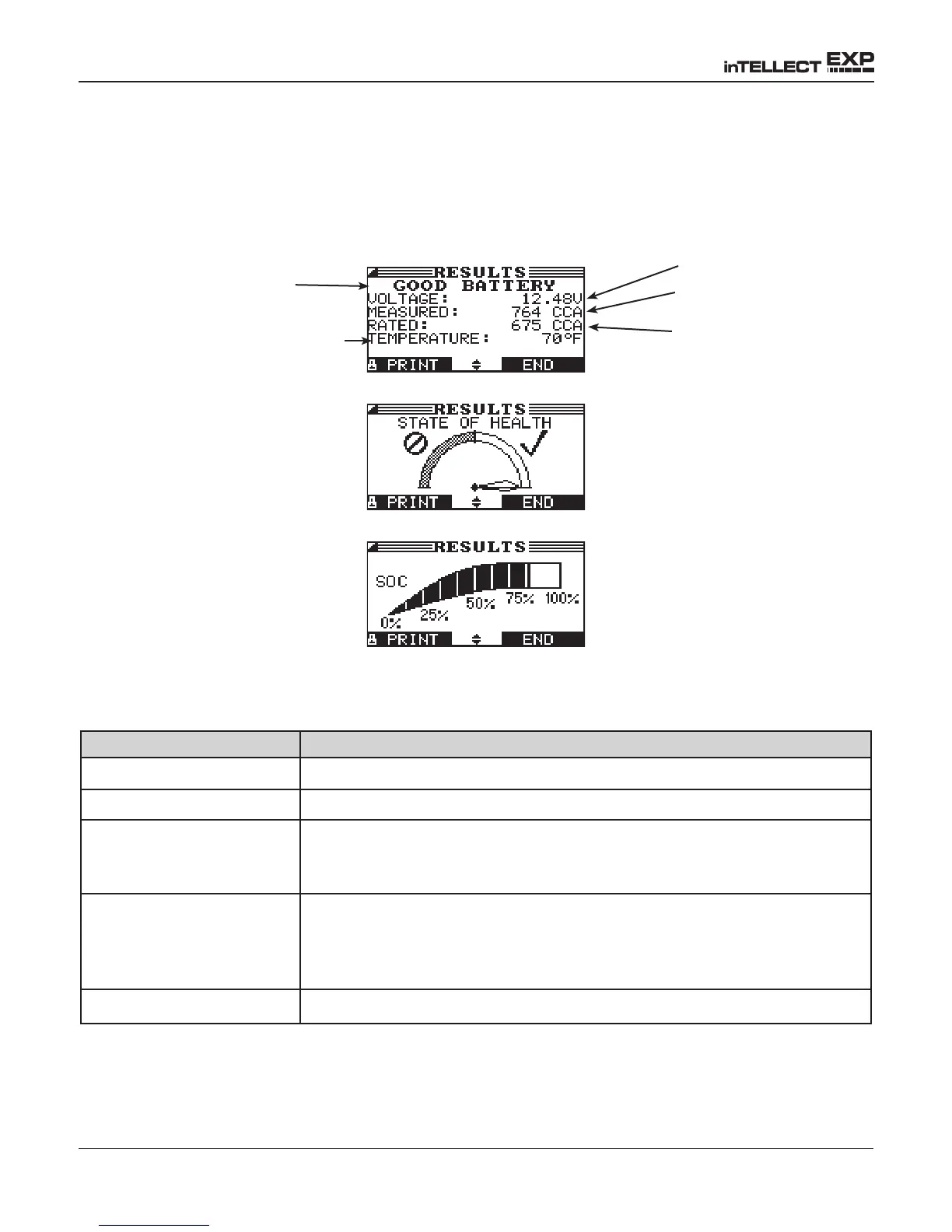

Figure 14: Good Battery Result
Table 1: Battery Decisions and Recommendations
Decision Recommended Action
GOOD BATTERY Return the battery to service.
GOOD–RECHARGE Fully charge the battery and return it to service.
CHARGE & RETEST * Fully charge the battery and retest. Failure to fully charge the battery
before retesting may cause false readings. If CHARGE & RETEST
appears again after you fully charge the battery, replace the battery.
REPLACE BATTERY ** Replace the battery and retest. A REPLACE BATTERY result may also
mean a poor connection between the battery cables and the battery.
After disconnecting the battery cables, retest the battery using the out-
of-vehicle test before replacing it.
BAD CELL–REPLACE ** Replace the battery and retest.
* If the result is CHARGE & RETEST, the EXP will calculate and display the time needed to
charge the battery at 10, 20, and 40 A.
** When testing at the remote posts, the EXP may need to verify the result. It will give you the
option of retesting at the battery posts.
Chapter 4: Battery Test
Battery decision
Measured voltage
Measured capacity
rating units
Ra ti ng u nits you
selected for the test
A temperature measurement is
displayed here if the EXP has
required you to measure battery
temperature
Battery’s state of charge
General health of the battery
and its ability to deliver its
specified performance com-
pared with a new battery
To Next Page
