Chapter 14: EXP Internal Batteries
The EXP uses 6 AA, 1.5-volt batteries (alkaline recommended) to allow testing of batteries down to
1 volt and supply power while the menu is active. The analyzer can test batteries down to 5.5 volts
when the internal batteries are not functioning.
Battery Power Indicator
The square in the upper left corner of the display indicates the charge level of the battery pack. The
square is black when the battery pack is fully charged. It gradually changes to white as the charge
level declines. The EXP will display a warning message when the batteries need replacing.
Full Powered
by test
battery
Decreasing Low

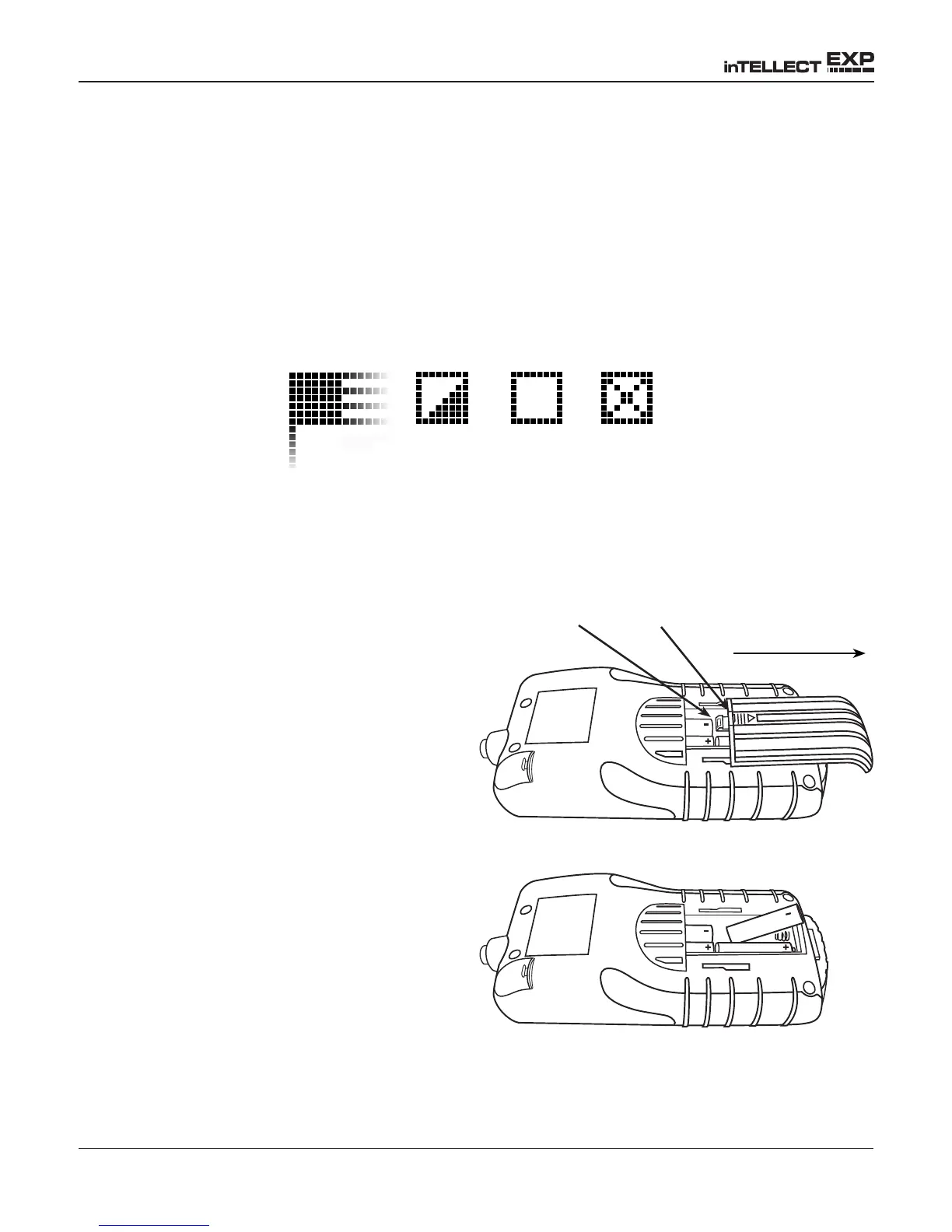

Figure 7: Power Level Indicator for EXP AA Batteries
Replacing the EXP Batteries
1. Turn the EXP face down.
2. Press gently on the ridges above the
arrow on the battery compartment
cover.
3. Slide the cover in the direction of the
arrow and remove the cover.
4. Remove the discharged batteries.
5. Insert new batteries as shown in
Figure 22. Make sure the positive
and negative terminals are positioned
correctly.
6. Insert the door’s tabs into the slots on
the analyzer and slide the door closed,
making sure the latch locks.
Figure 22: EXP Battery Replacement
Latch
Press here
Slide in
this direction
