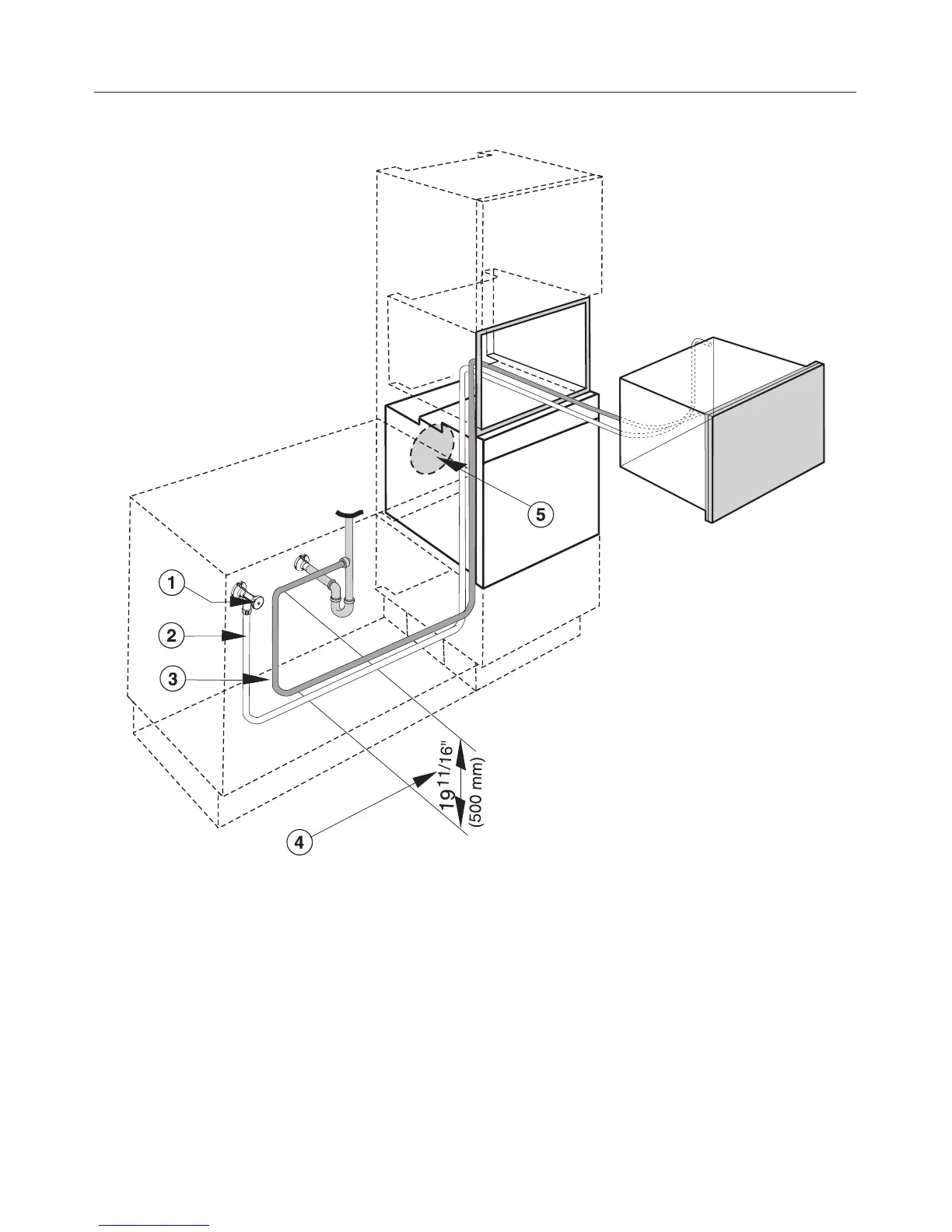

a Water supply valve
b Water intake hose, L = 59" (1500 mm)
c Drain hose, L = 118" (3000 mm)
d The ascending end of the drain hose to the inlet of the drain trap must not be
higher than 19 11/16" (500 mm)
e Warning! When installing with an oven the water intake hose and drain hose
must not become trapped behind its opening e.
Connecting the water intake / drain
143
