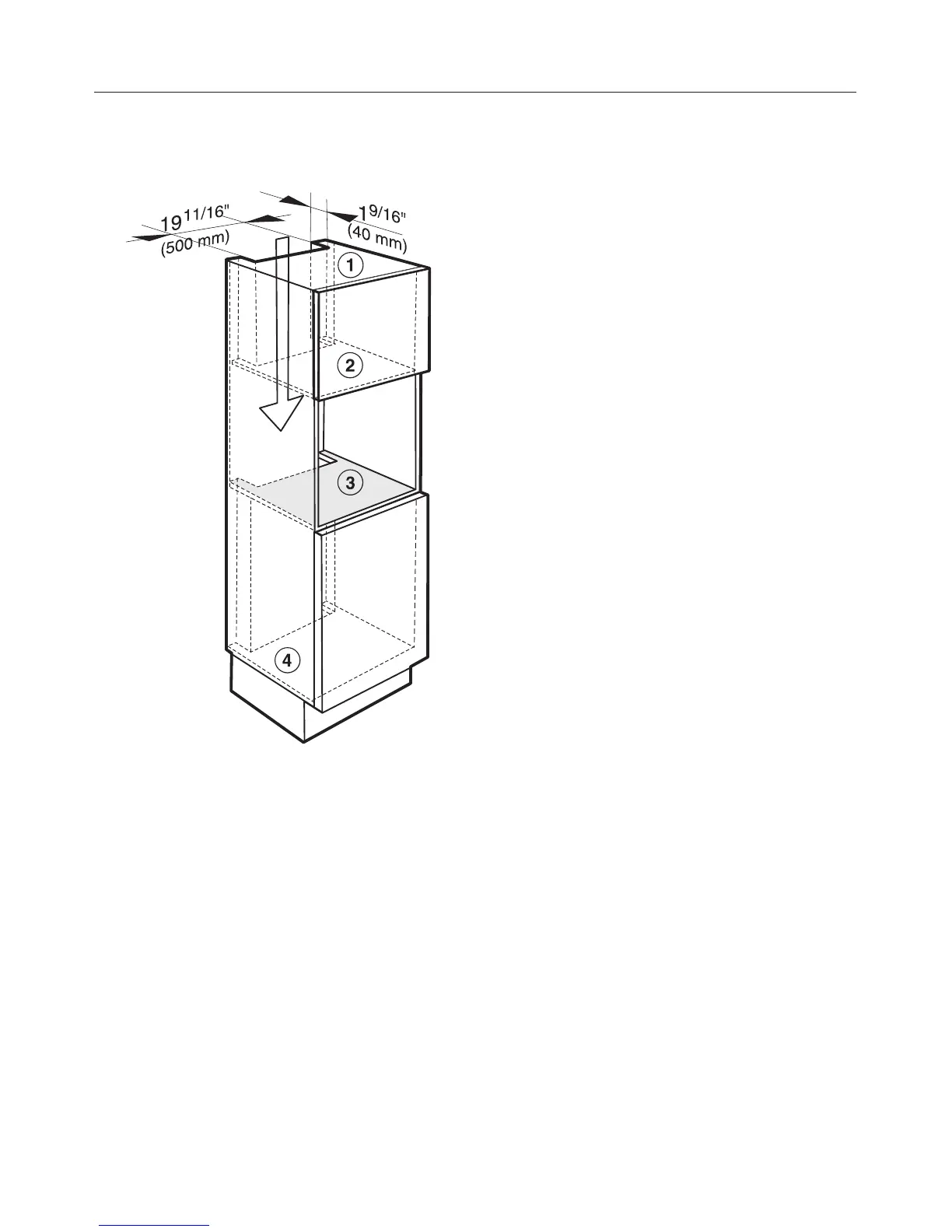

Cut-outs for venting the appliance and routing of the water hoses
To route the water hoses and to ensure that the Combi Steam Oven has adequate
ventilation, the following cut-outs measuring 19 11/16" x 1 9/16" (500 x 40 mm)
must be made:
a in the top of the cabinet (ventilation)
b in the center shelf above the installation niche (ventilation)
c in the appliance support base (water hoses)
d in the bottom of the cabinet (water hoses)
The cabinet housing must not have a back panel fitted behind the installation
niche.

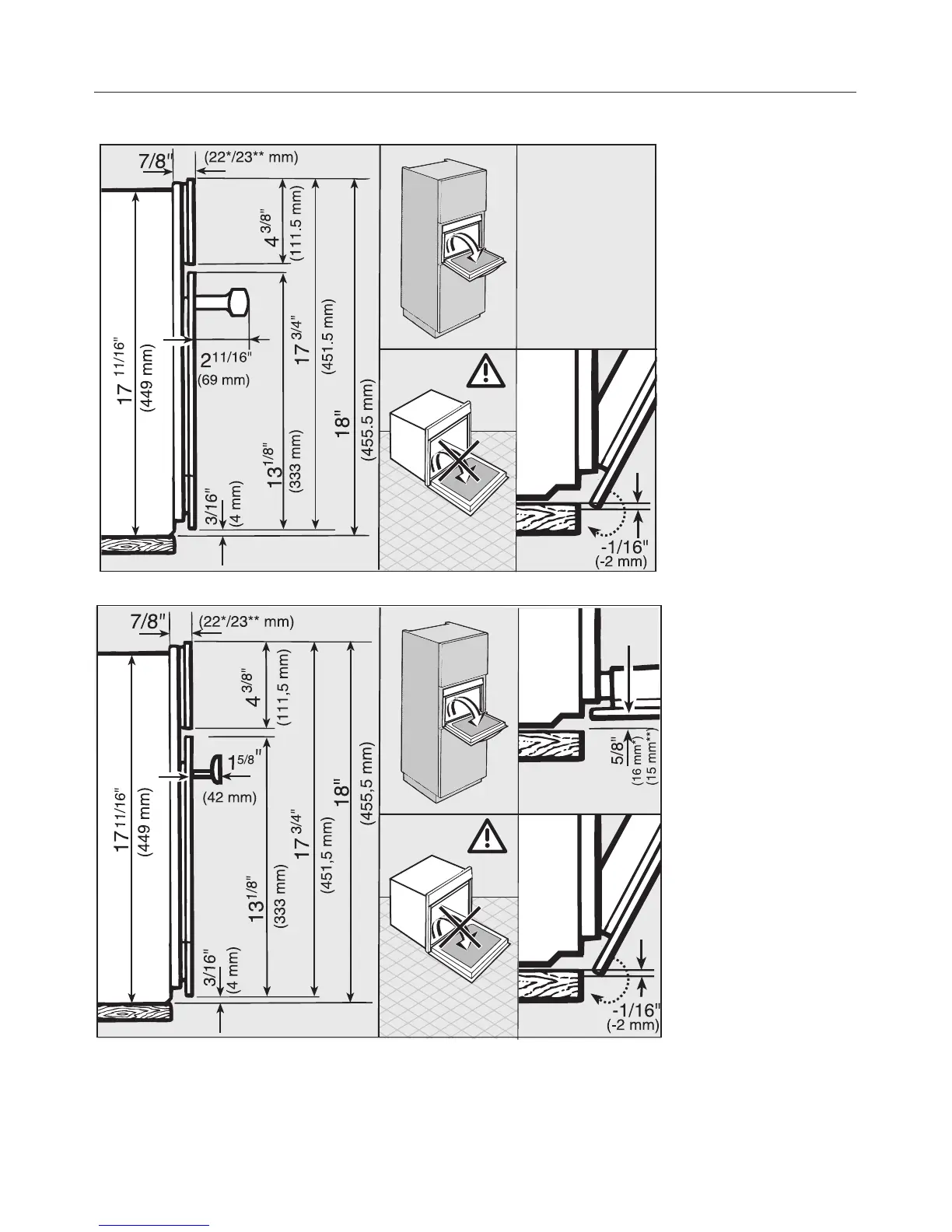

Appliance and installation dimensions
151
