Technical Information
G600 & G800 Electronic Dishwashers
A Timer Steps
Run along the left and right side of the chart numbered 1-50. All fifty
steps do not apply to every program, refer to E and F for further
information.

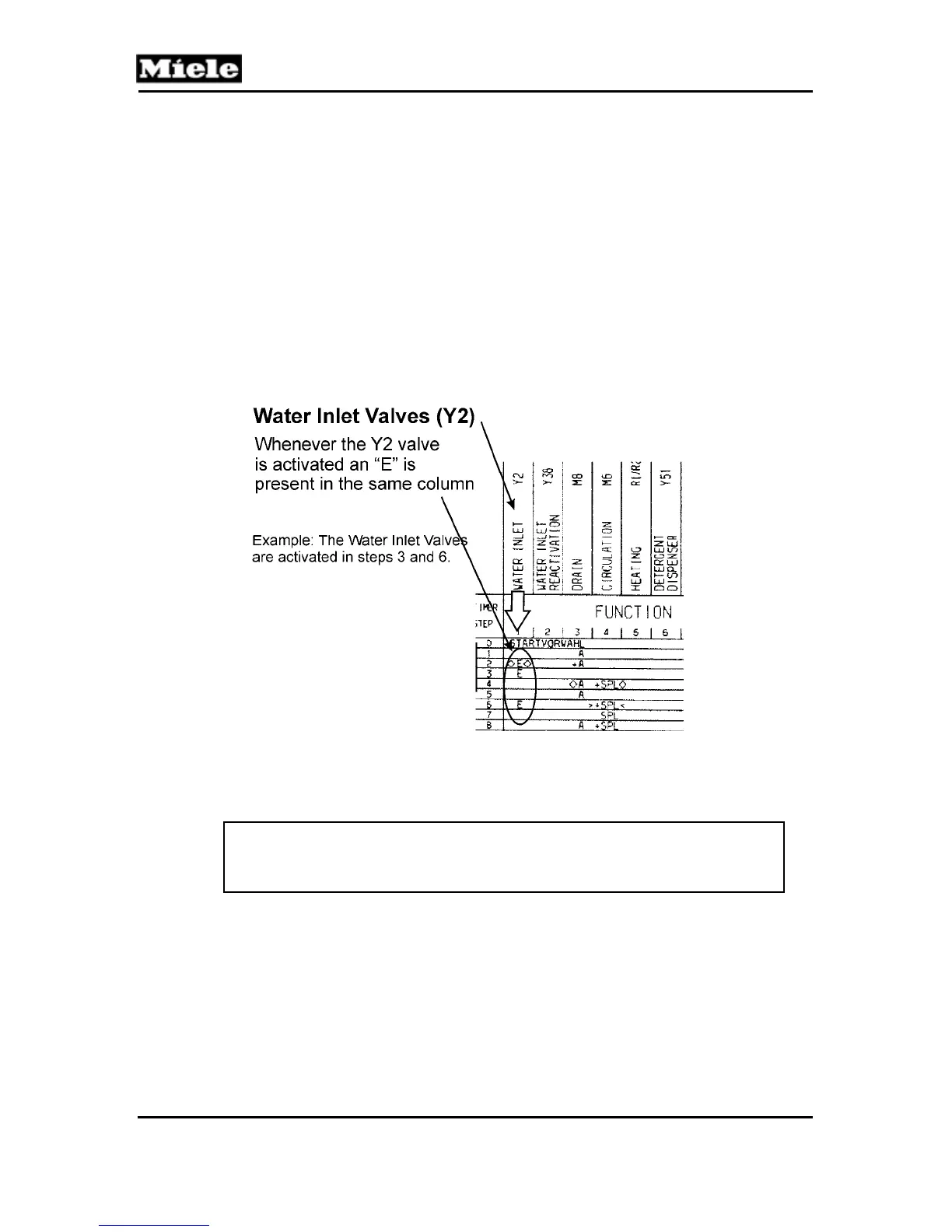

B The component names and Wiring Diagram Legends are listed
here. Below this area each Timer Step indicates activation of a
component based on the location of the text. Refer to the example
below…
Note
Refer to the Timing Chart’s Legend for symbol descriptions.
