Technical Information
G600 & G800 Electronic Dishwashers
5.43 Sump - Removal
1. Remove as much water as possible from the Sump.
2. Open the door; remove the Bottom Spray Arm (5.17) and Filter
Assembly.
3. Lay the dishwasher on its back.
4. Remove the Drip Tray (5.30)
5. Remove the Circulation Pump (5.35).
6. Remove the Drain Pump (5.40).
7. Remove the Float Switch Assembly (5.31)
8. Remove the NTC Temperature Sensor (5.34)
9. Disconnect all Hoses to/from the Sump.
10. Unclip the Wiring Harness from the Retainers.
11. Unscrew and remove the Clamp surrounding the Sump Seal.
12. Lift the Sump from the cabinet.
Re-Installation Service Tip
 Apply Rinse Aid to the inner surface of the seal.
 Fit the Sealing Ring on the cabinet.
 Align the Sump with the drain connection.
Warning!
To avoid leaks on units without the Self Tensioning Clamp. The Clamp
should be tightened to a gap of approximately 22 mm. See figure 37.

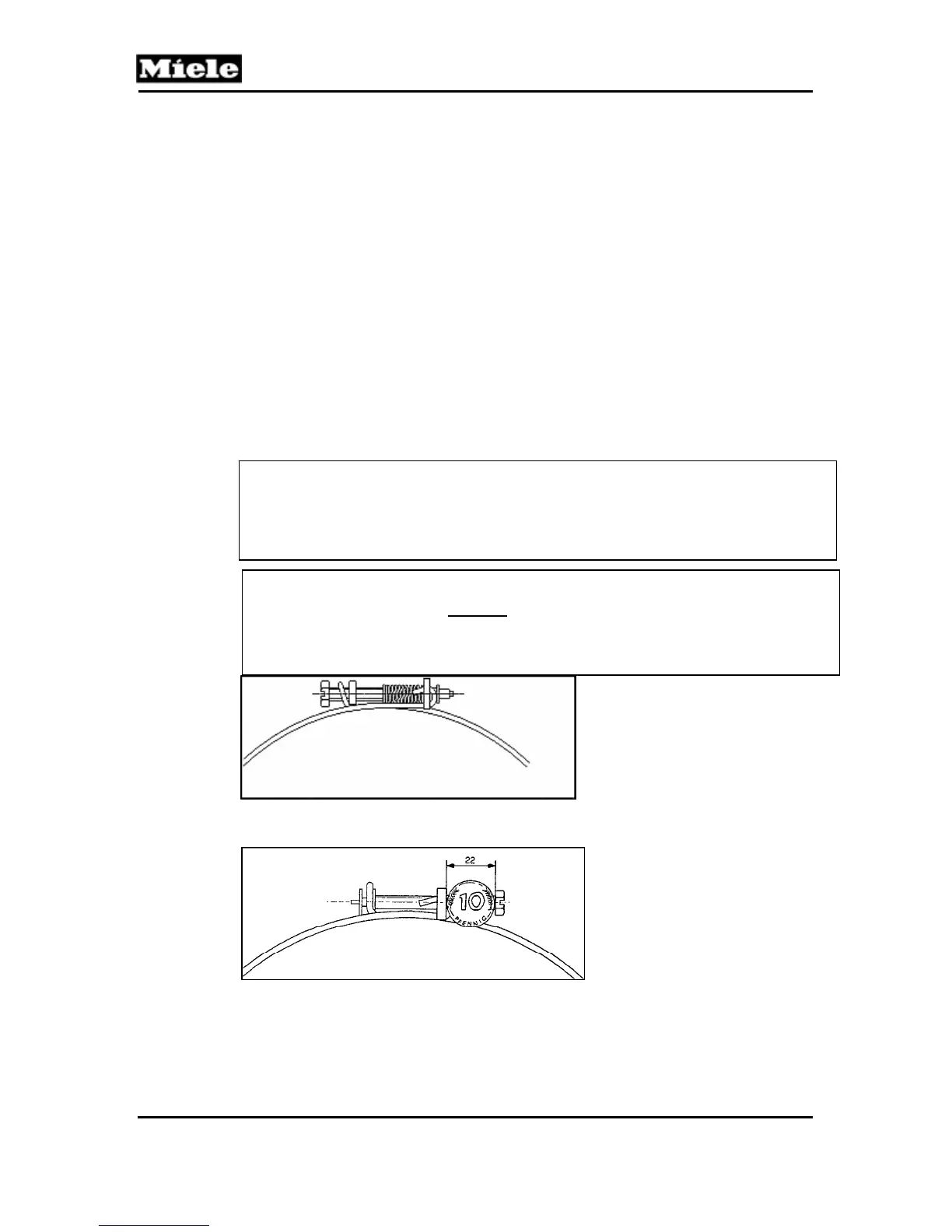

Figure 5-37: Self Tensioning Sump Clamp
Figure 5-38: Sump Clamp without the self tensioning;
should be tightened to a gap of about 22mm.
