Technical Information
G600 & G800 Electronic Dishwashers
1 Water Control ValveY6 – (for Steam Condenser)
2 Fan M2
3 Vent / Water Port from condenser
4 Steam Condenser Assembly
5 Air Duct (Condenser Intake)
6 Water Intake Assembly
7 Solenoid Valve Y5 - Water hardness
8 Cabinet Vent / Water Port (un-softened)
9 Flow Meter B3/4
10 Reactivation Valve Y38
11 Water Softener Assembly

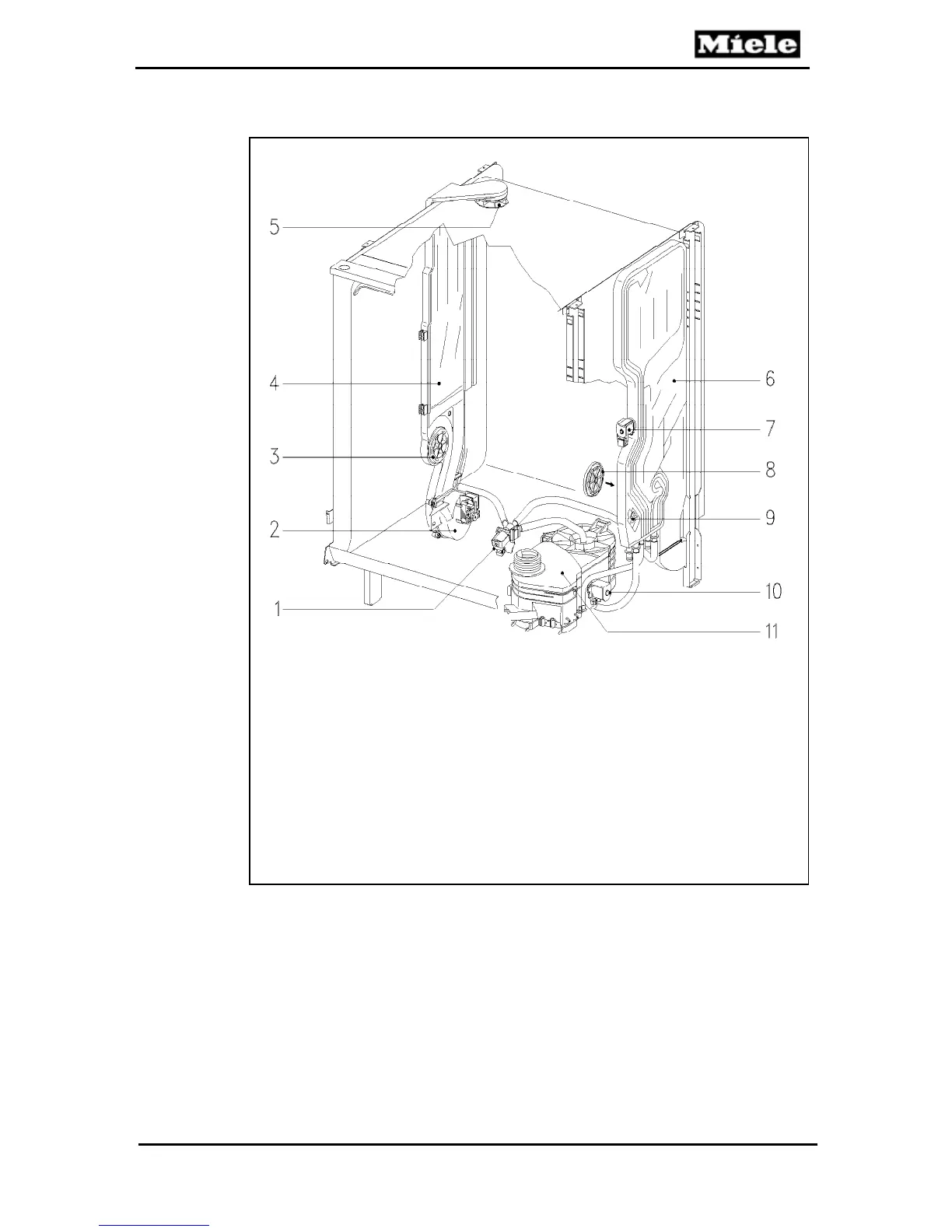

Figure 4-15: Components for the Condenser Drying System
