Miele G600 - Water Intake Circuit

Technical Information
G600 & G800 Electronic Dishwashers

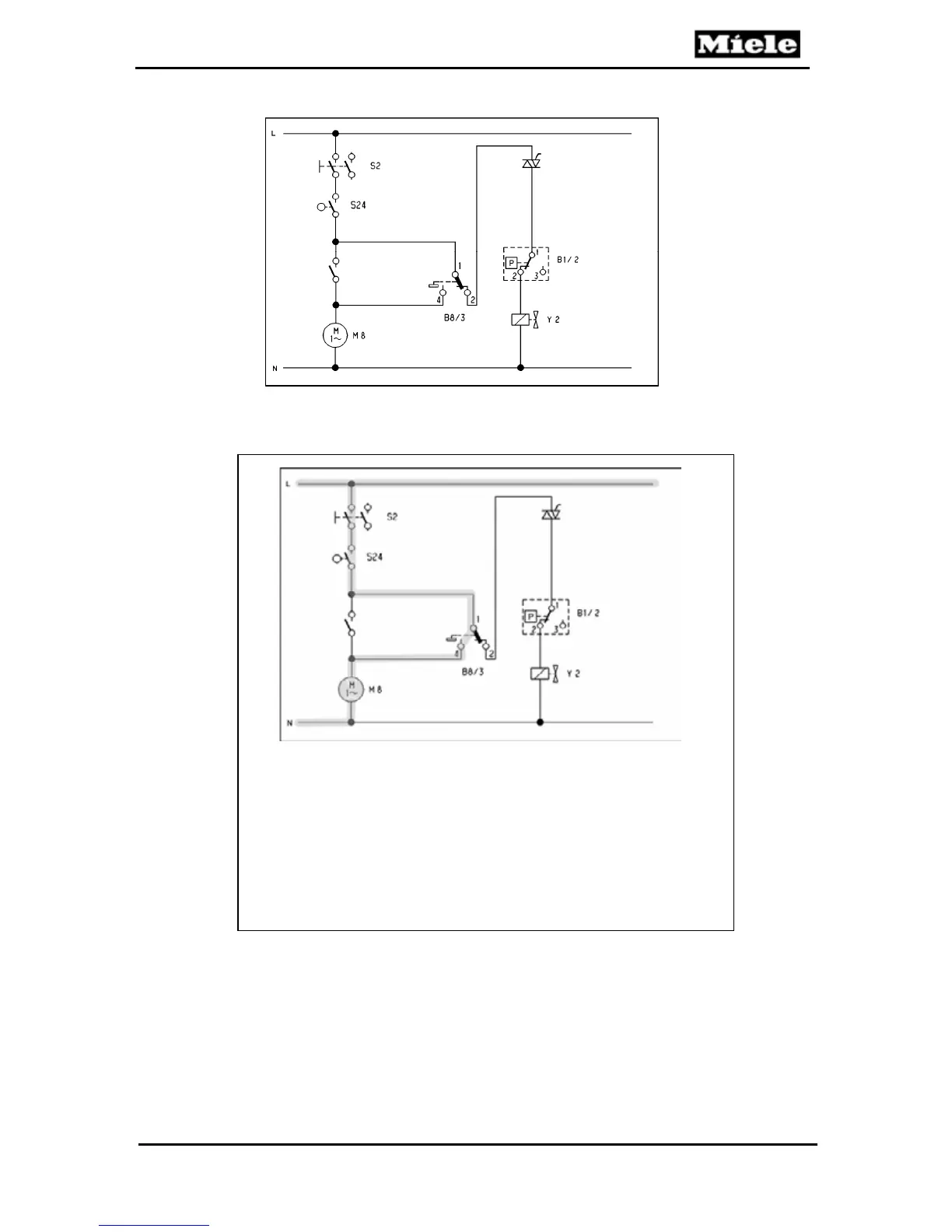

WaterProof System Circuit – normal operating position
WaterProof System Circuit – Float Switch B8/3 actuated
From water being present in the lower pan of the dishwasher.
B1/2 Level switch - Overflow
B8/3 Float switch - Overflow
M8 Drain pump
S2 Main switch (pushbutton switch)
S24 Door contact switch
Y2 Solenoid valve (2 off) - Water intake (WaterProof system)
Figure 4-7: Water Intake Circuit
