Technical Information
G600 & G800 Electronic Dishwashers
5.19 Middle Spray Arm Cover - Removal

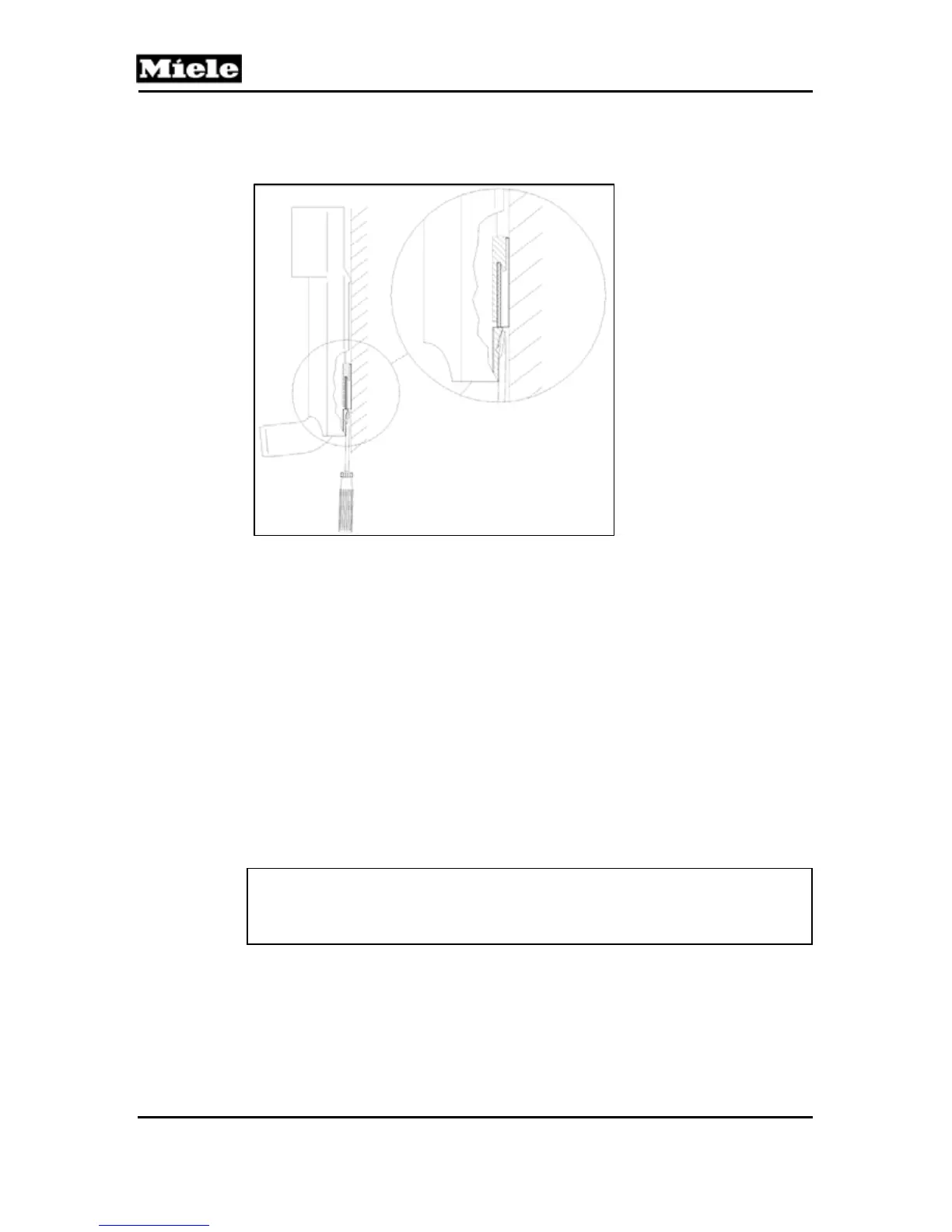

Figure 5-18: Middle Spray Arm Cover Removal
1. Insert a large screwdriver between the Cover Retainer and the
Metal Holder on the rear of the cabinet wall – see figure 5-18.
2. Unclip the Spray Arm Cover and slide it upwards.
3. Remove the cover by pulling it down and outward.
5.20 Middle Spray Arm Feed Pipe - Removal
1. Remove the Spray Arm Cover (5.19).
2. Remove the Left Side Panel (5.3).
3. Remove the Spring Clip located at the top of the Feed Pipe near
the Flow-Through Heater.
4. Lift upward on the Feed Pipe to remove.
Service Tip
When refitting, ensure the Seal is fitted on the Feed Pipe before re-
installation.
72
