Miele G600 - Water Mixing - Integrated Flowmeter; Water Path with Integrated Flowmeter

Technical Information
G600 & G800 Electronic Dishwashers
4.15.2 Water Mixing - Integrated Flowmeter
1 Drain pump
2 Sump
3 Sump - Soft water intake
4 Water softener - Soft water outlet
5 Solenoid valve Y2 (WPS)
6 Water inlet mixer
7 Water inlet mixer intake and outlet
8 Control valve Y6 - Steam condenser
9 Solenoid valve Y38/1 (reactivation)
10 Salt container
11 Salt container intake
12 Non-return device
13 Water softener hard water intake
14 Ion exchanger

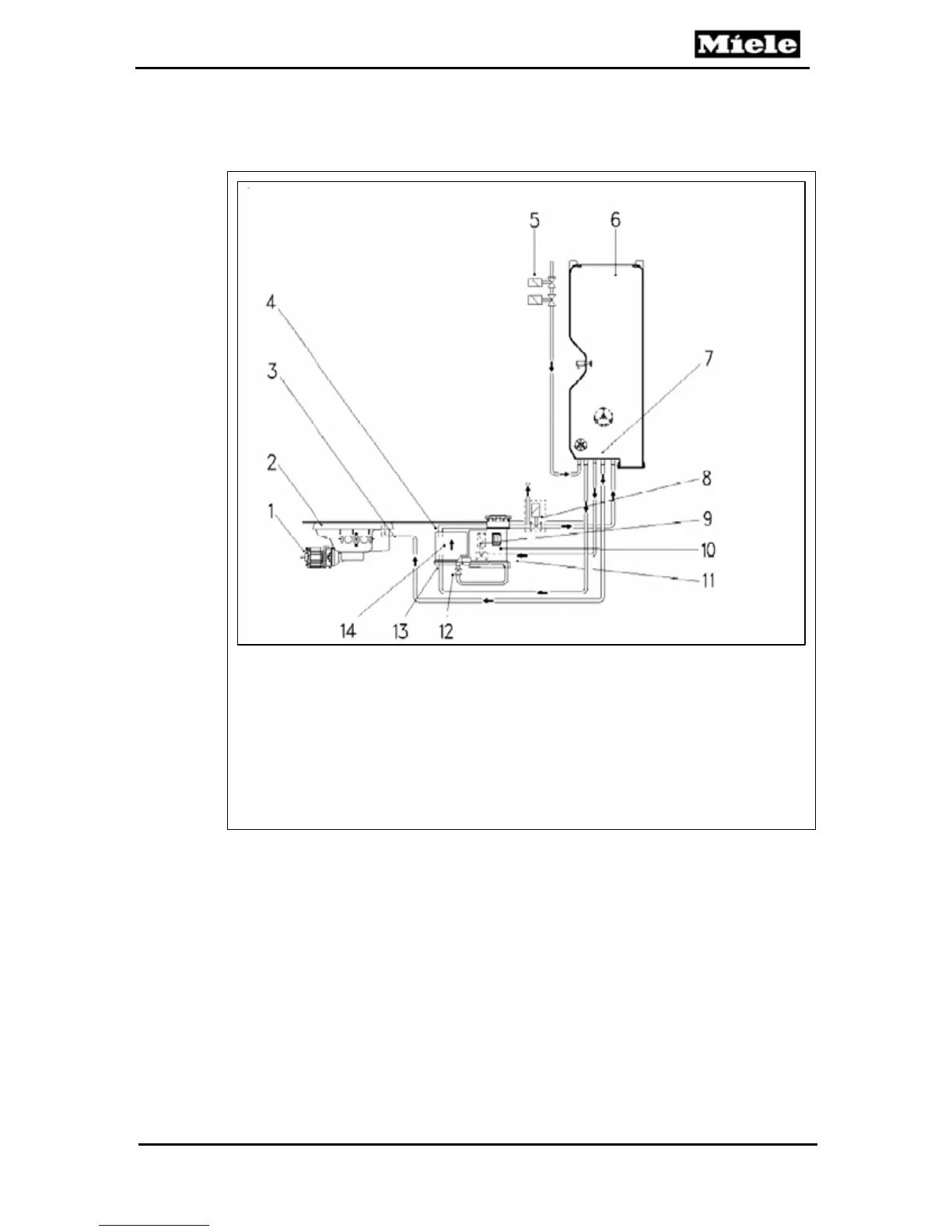

Figure 4-11: Water Path with Integrated Flowmeter
