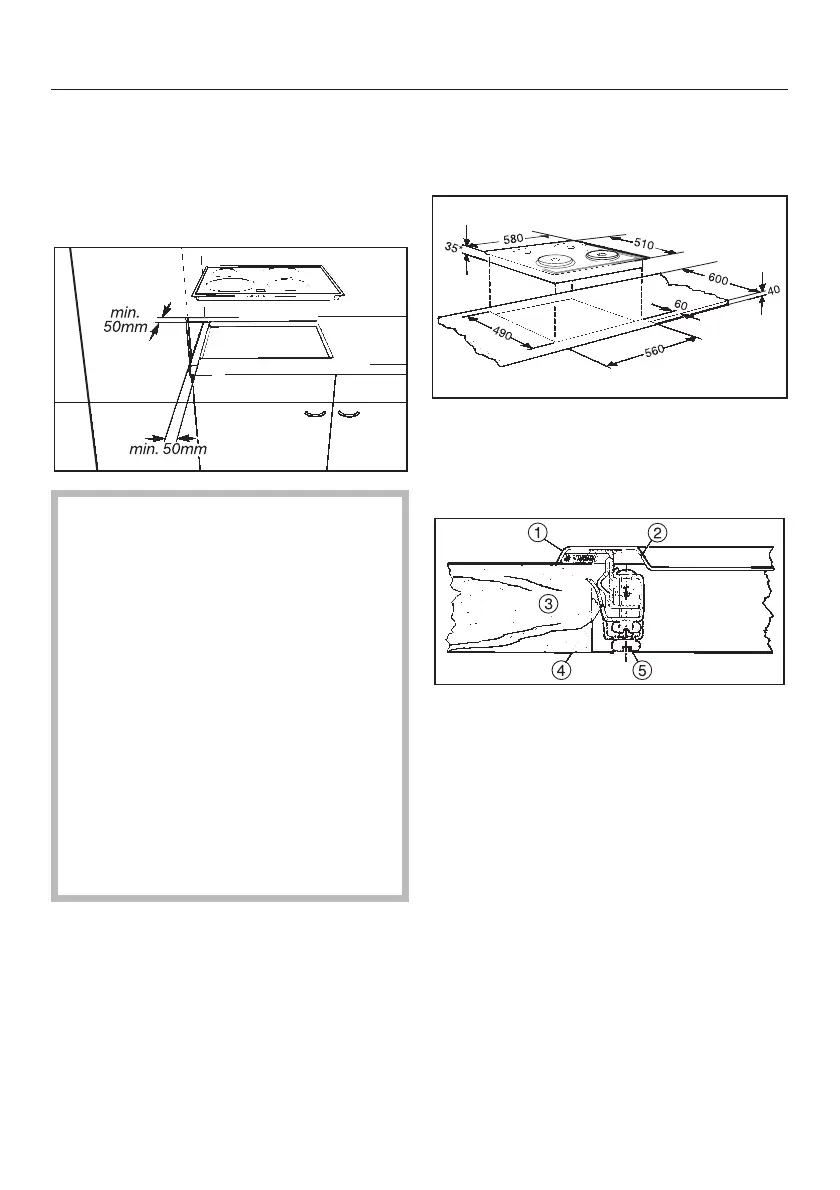

When installing a hob there may be a
wall at the back and a wall or tall unit at
one side. On the other side there must
not be a unit or wall which stands
higher than the hob.
Because of the heat given off, there
must be a minimum distance as fol-
lows:
– 50 mm between the worktop
cut-out and adjacent furniture,
e. g. tall unit.
– 50 mm between the back wall
and the worktop cut-out.
– Maintain the safety distance
between the hob and a cooker
hood above it as recommended
by the manufacturer. Where no
figures are given, e.g. for a pot
or utensil hanging rail, the safety
distance must be at least
760 m for inflammable objects.
Hobs with enclosed hotplates
KM 200
* building-in height
^ Prepare the worktop cut-out as
illustrated.
a Sealing ring
b Hob
c Worktop
d Clamps
e Screw
^
Loosen the screws e.
^
Set the hob unit b into the cut-out
and centre it.
^
Turn the screws e to the right, until
the clamps d are firmly attached to
the worktop c.
^
Check that the hob unit b fits tightly
on to the worktop.
Installing the hob
67
