Ceramic hobs KM 227, KM 228
* Space for fixing and cable
^

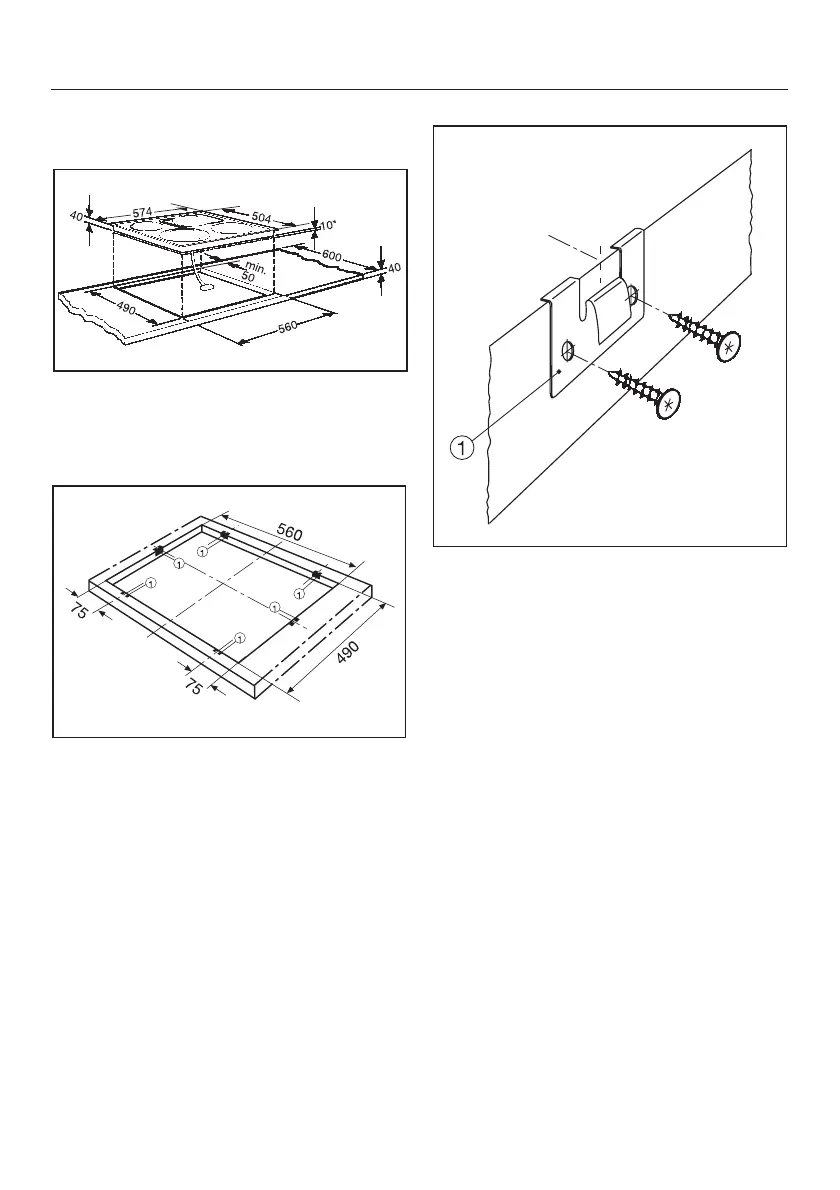

Prepare the worktop cut-out as illus
-
trated.
^ Lay the spring clamps supplied a on
the top edge of the cut-out in the po-
sitions indicated and secure with 2
screws each.
With granite worktops, the spring
clamps must be positioned and se-
cured with strong double-sided adhe
-
sive tape. In addition coat the edges of
the spring clamps with silicone. The
screws are not necessary for granite
worktops.
Installing the hob
68
