Guide to the machine
11

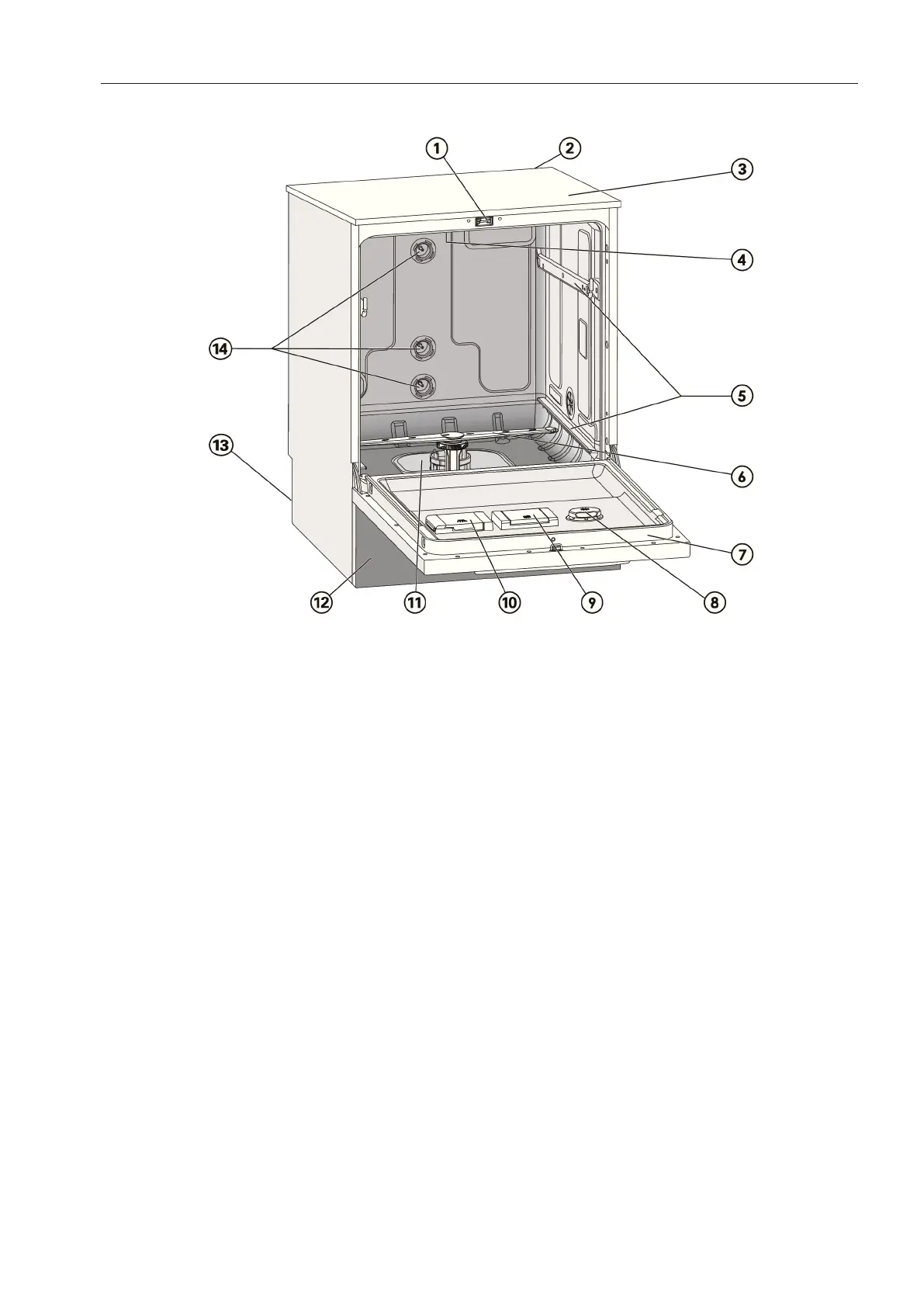

Overview
a
Comfort door locking mechanism
b
Module slot for a communication module
(Back, top right)
c
Test point for validation
(Top, front right; only visible with lid
removed)
d
Upper machine spray arm
e
Rails for baskets and mobile units
f
Lower machine spray arm
g
Data plate
h
Rinsing agent reservoir
i
Salt reservoir
j
Dispenser for powder cleaning agent
(optional)
k
Filter combination
l
Plinth
m
On the back:
– Second data plate
– Electrical and plumbing connections
– Siphon(s) for external supply containers
– Connections for external dispensing
modules (DOS modules)
n
Plumbing connections for mobile units
and baskets
