Miele PG 8582 - DOS Modules and Connections

Adding and dispensing chemical agents
53
DOS modules
Machines with a dispenser for powder detergent in the door can
be retrofitted with up to 2 additional external dispensing modules
(DOS modules) for liquid process chemicals.
In the case of the version with an internal dispensing system for liquid
cleaning agent, an additional external dispensing module for liquid
process chemicals can be connected.
External dispensing modules are fitted by the Miele Customer Service
Department. Internal dispensing systems cannot be retrospectively
fitted.
Connecting DOS
modules
DOS modules are supplied with their own installation instructions.
 Before fitting the DOS module, compare the connection data
(voltage and frequency) on the data plate with that on the data
plate of your machine. If the data does not match, the modules
could sustain damage. If in any doubt, consult an electrician.

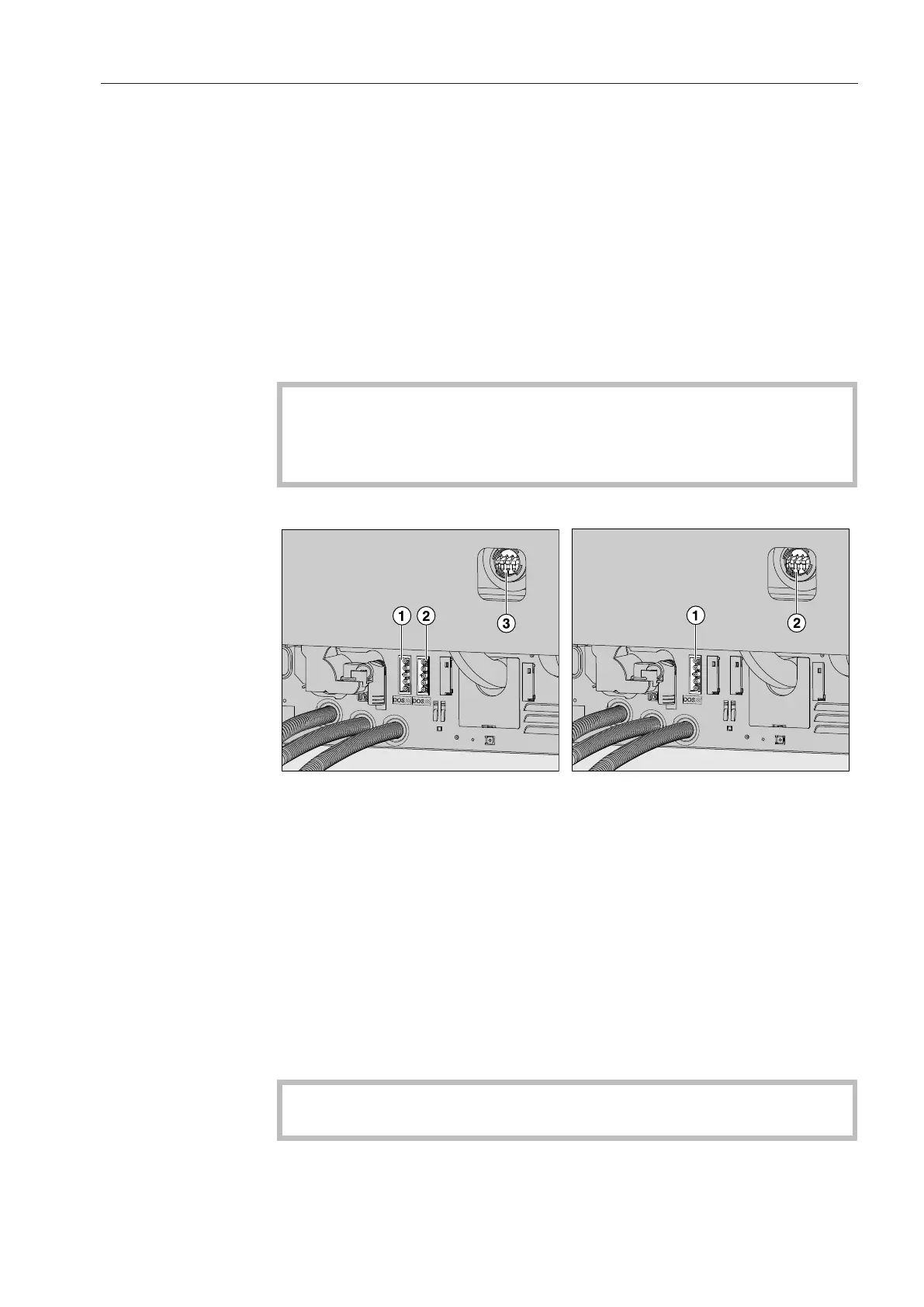

2 DOS module connections 1 DOS module connection

Power supply for DOS1,
cleaning agent. 
Power supply for DOS5.

Power supply for DOS5.

Connection for dispenser
hose.

Connections for dispenser
hoses.
 Connect the module to the electricity supply.
 To connect the dispensing hose, release the hose clip on a free
connector and remove the safety cap.
 Push the dispensing hose onto the connector and secure it with a
hose clip.
Unused connectors must be blanked off with safety caps to
prevent the leakage of wash fluid.
