Installation and connection
81

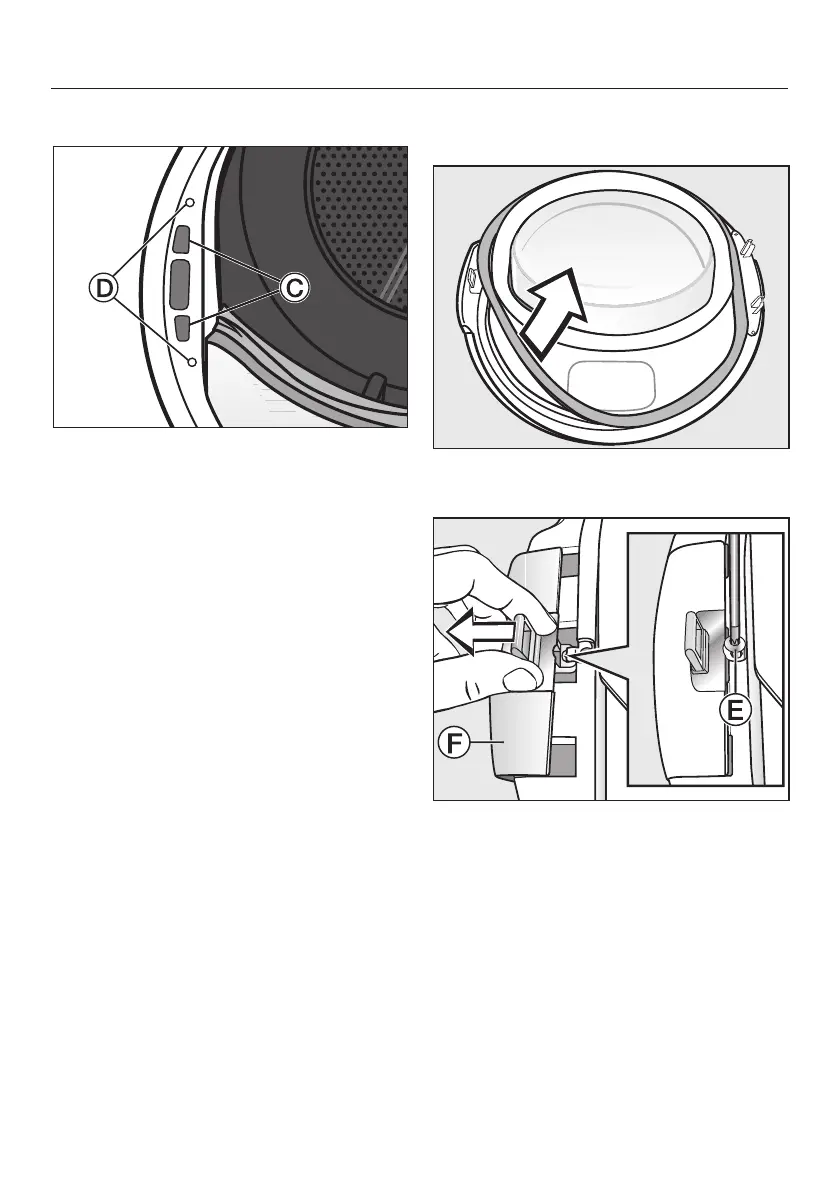

Turn the door lock through 180°.
Press the door lock into openings
on the opposite side of the door
opening.
Adjust the position of the door lock
so that the screw holes line up with
those in the front panel of the dryer
.
Secure the door lock with the two
Torx screws.
3. Remove the lock catch from the
door
First take the rubber seal off the door
and place this to one side.
Use a T20 Torx screwdriver to remove
screw on the lock catch.
Pull off the lock catch together with
lock catch cover .
