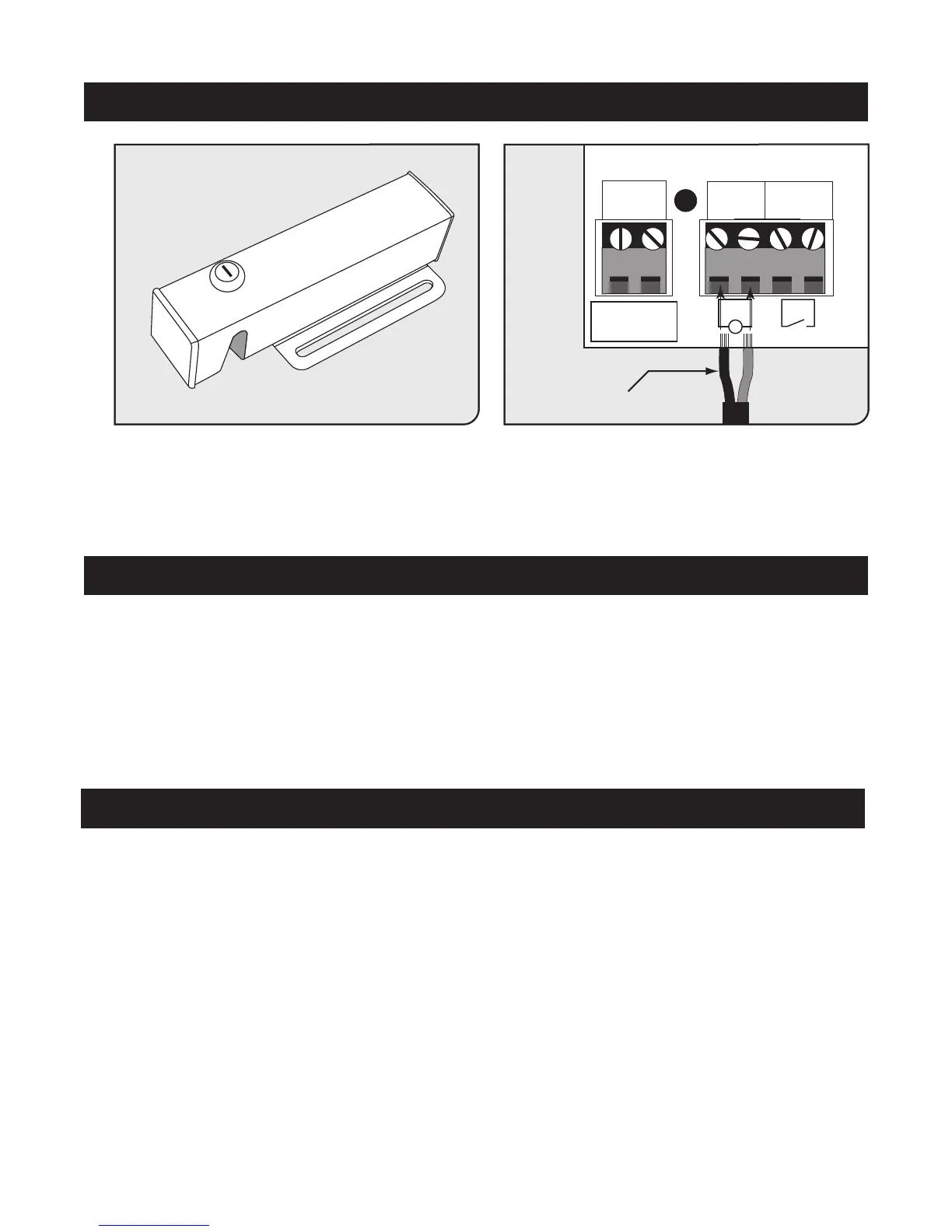

33 MM660 Installation Instructions
POWER
INPUTS
LOCK
PWR
AUX
R LY
CONTROL
OUTPUTS
GTO 18VOLT
TRANSFORMER
OR SOLAR
Wire from
Automatic
GTO Lock
GTO LOCK
Connecting GTO Automatic Lock
Connecting Additional Devices
GTO Lock Connection:
Connect the red and black leads from the lock to the GTO LOCK
terminal on the control board.
GTO Automatic Gate Lock:
LOCK PWR terminals are use exclusively with the GTO
Automatic Gate Lock (FM143). Connecting other devices to
these terminals may cause incorrect operation and void your
warranty. You do not use the lock board with this control board.
• AUX RLY terminals are normally open, dry-contact (no voltage) relay ouput.
• AUX RLY terminals are ON (shorted) whenever the gate is moving and OFF (opened) otherwise.
• AUX RLY terminals have a maximum rating of 24Vdc, 1 Amp.
Connecting Other Auxiliary Devices (Mag Locks, Sirens, Lights. . .}
Maintenance & Troubleshooting
Maintenance Tips
Monthly, test the obstruction and entrapment protection systems.
Monthly, service the gate operator (make sure the power switch is OFF). Clean extended operator arm with a soft, dry clean cloth. After
cleaning, apply a high quality silicon spray to a soft dry cloth and wipe the push/pull tube. DO NOT directly spray the tube!
On all gates weighing 250 lb. or more, routinely grease the ball bearing hinges at least 4 times a year; more frequently if the gates are
near a coastal area.
Monthly, turn off the power switch and disconnect the Mighty Mule and move the gate to make sure the gate is moving freely without
sticking or binding. Lubricate the hinges or repair the gate as required before reattaching the Mighty Mule.
Monthly, check the gate system for potentially entrapments from new landscaping or construction. Eliminate or guard as required.
Monthly, check that the warning signs are mounted on each side of the gate and clearly visible. Replace the signs if they are missing or
damaged.
Replace batteries every 2-3 years and properly recycle old batteries.
