Mighty Mule MM660 - Solar Panel Installation

23 MM660 Installation Instructions
2
4”

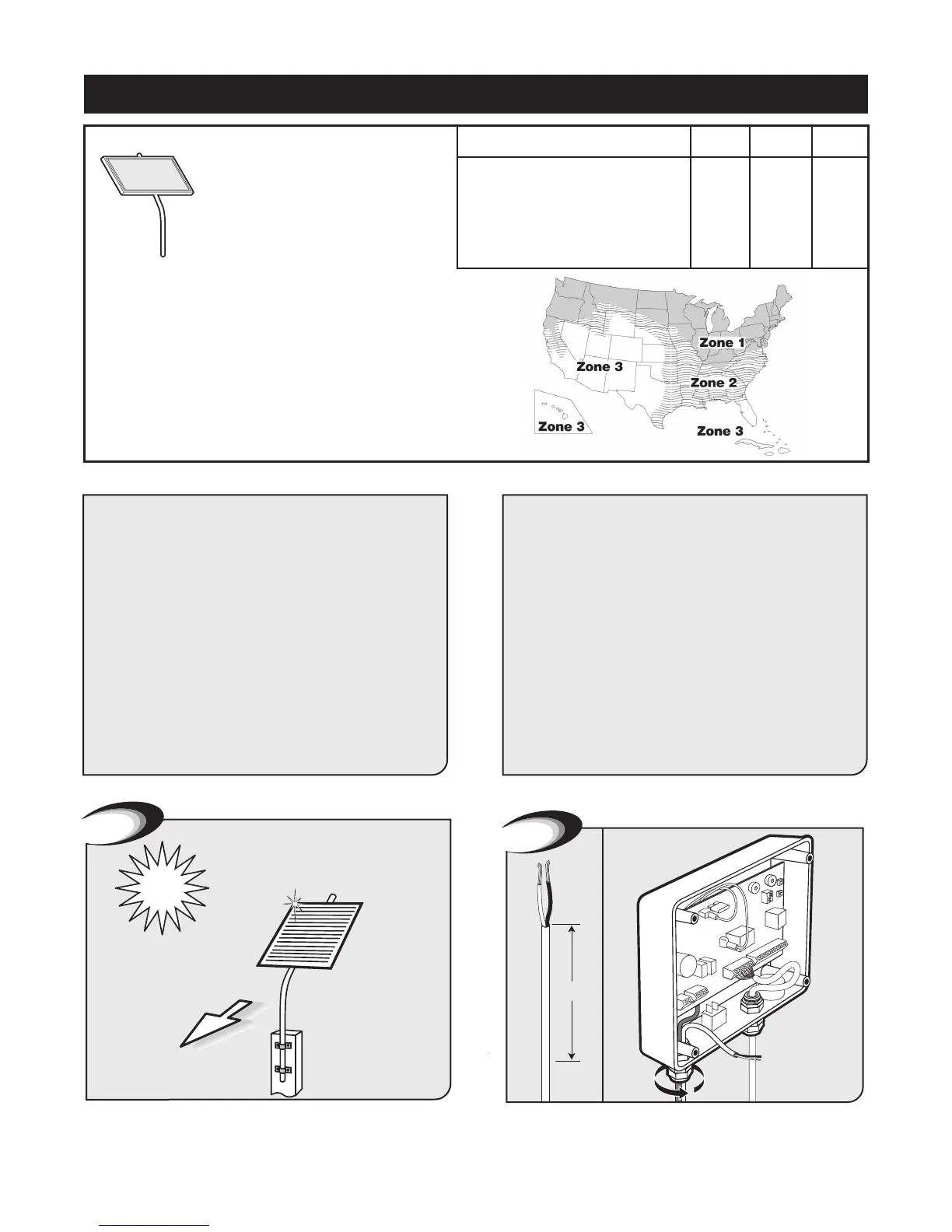

Solar Panel Installation
Toward
Equator
1
The solar panel must be positioned facing the path of the sun
and in an open area away from shade. It should receive at least 8
hours of direct sunlight for a full charge.
(Optional)
Winter Ratings Zone 1 Zone 2 Zone 3
12 v single gate (10 watts) solar charger8 16 26
12 v single gate ( 5 watts) solar charger 4 8 13
12 v single gate (15 watts) solar charger 11 20 30
12 v single gate (20 watts) solar charger 14 28 38
12 v single gate (25 watts) solar charger 17 36 46
12 v single gate (30 watts) solar charger 20 44 54
The table and map illustrate the
maximum number of gate cycles to
expect per day in a particular area when
using from 5 to 30 watts of solar
charging power, prior to the battery
depleting to a state where the unit will
not function (see accessory pages in
back of this book). The figures shown
are for winter (minimum sunlight) and
do not account for the use of any
accessory items. Accessories connected to your system
will draw additional power from the battery.
NOTE: A minimum of 5 watts of solar charging power is
required for Mighty Mule single gate systems, with a maximum
of 30 watts. A second battery 12V 7Ah, tractor, auto or deep cycle
marine battery is recommended for solar and/or high traffic
applications, if needed. See Solar Panel Installation Instructions
for further information.
IMPORTANT: Mount the panel using
the curved pipe provided to maintain
the proper angle to the sun.
IMPORTANT: Requires 8 hours
of direct sunlight a day.
Feed 4” of low voltage wire through strain relief with the battery
harness wire into box and tighten strain relief to secure wires.
