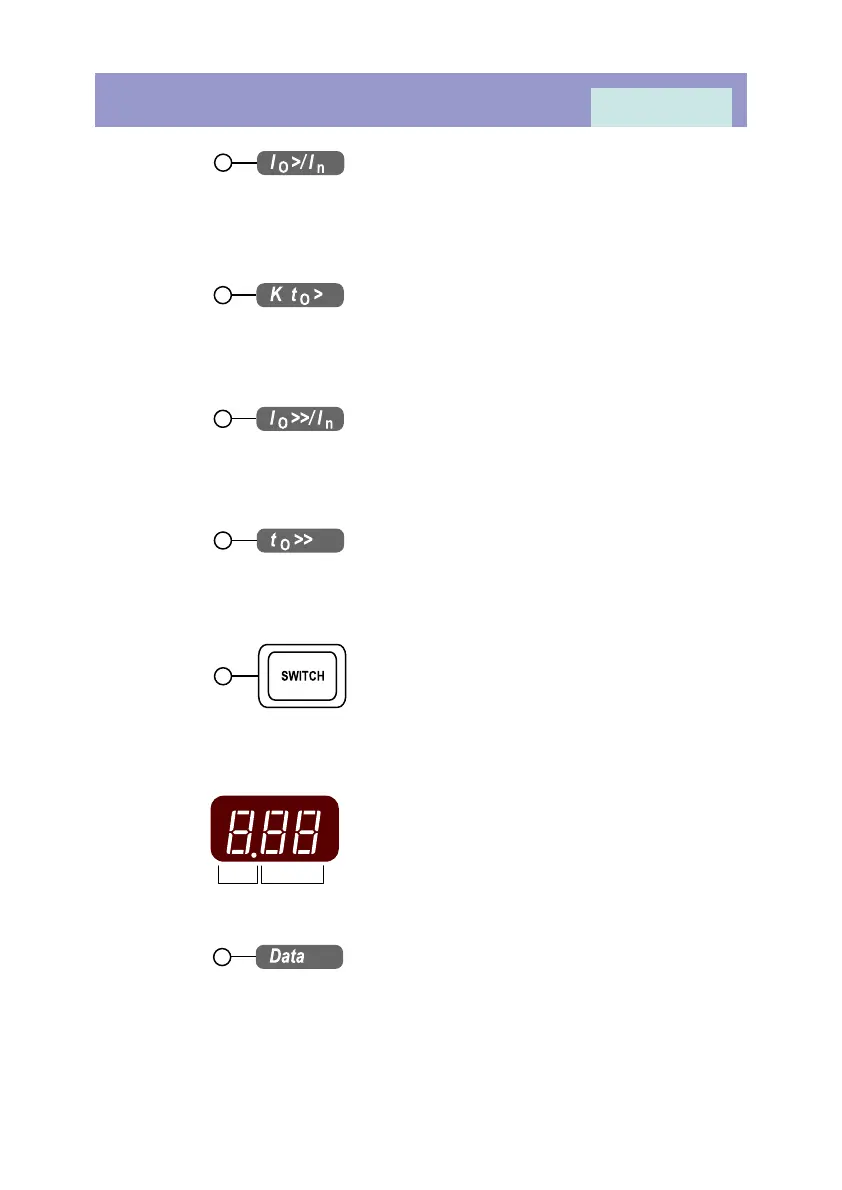

ix)
When this indicator is lighted, the 3-digit display simultaneously indicates
the earth-fault low-set current setting.
x)
When this indicator is lighted, the 3-digit display simultaneously indicates
the earth-fault time multiplier setting.
xi)
When this indicator is lighted, the 3-digit display simultaneously indicates
the earth-fault high-set current setting.
xii)
When this indicator is lighted, the 3-digit display simultaneously indicates
the earth-fault high-set delay time setting.
xiii)
When this light is on, the relay is in software switch setting mode. The 3-digit
display indicates the soft switch number and the switch setting.
xiv)
When this light is on, one of the indicators I
L1
, I
L2
, I
L3
or I
o
will switch on
simultaneously. The 3-digit display then indicates the stored value of the
corresponding phase or earth-fault current during the previous tripping of
the relay.
Note that the fault values recorded are at the moment of tripping.
SWITCH
NUMBER
SWITCH
VALUE
