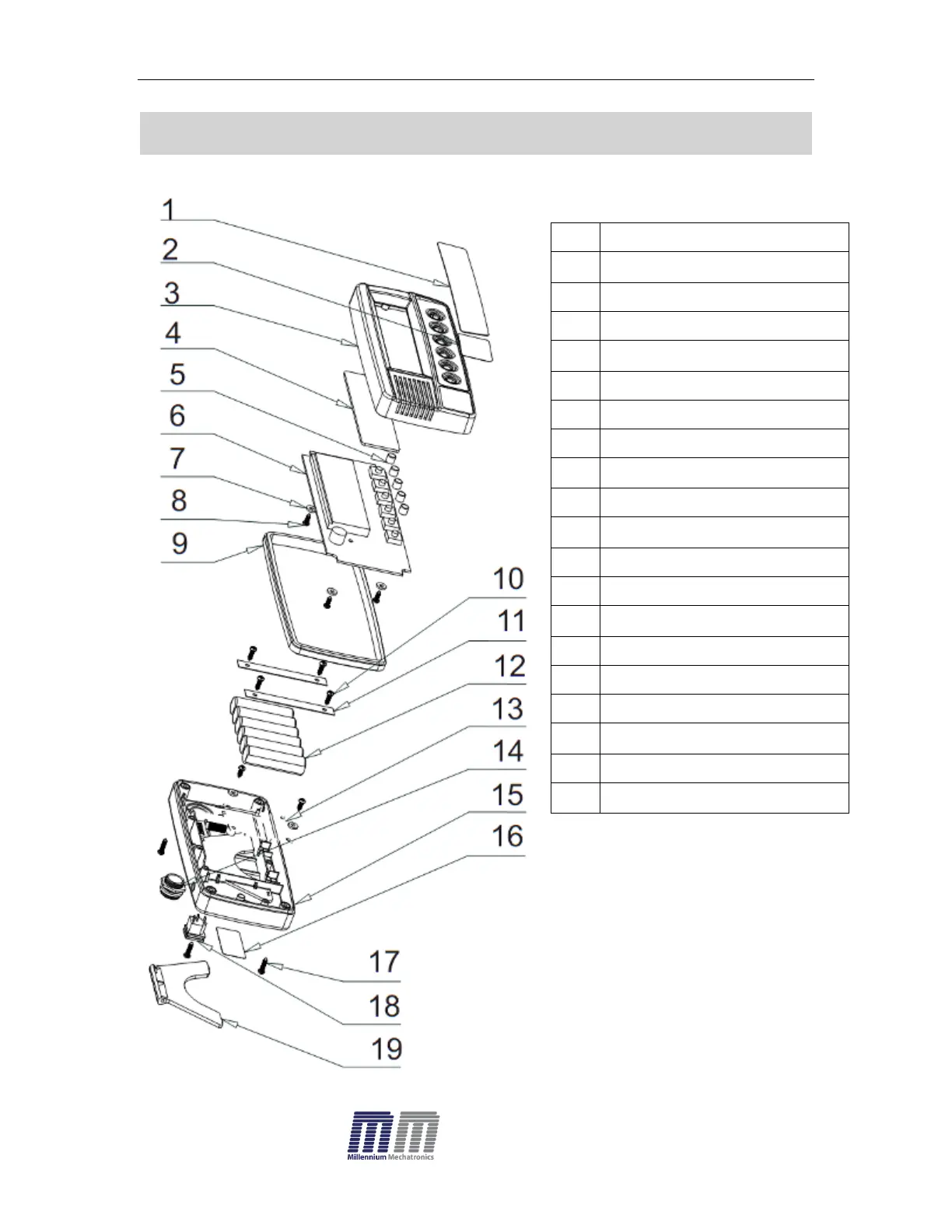

9. DRAWING
No
Parts Name
1
Key board overlay
2
Overlay
3
Upper cover
4
Display protection Plate
5
Key pad hat
6
Main board PCBA
7
Insulated washer
8
Seal thread screw
9
Rubber sealing ring
10
Self-thread screw
11
Battery Clamp
12
Ni- NH battery
13
Washer
14
5 pin air connector
15
Bottom cover
16
Name plate
17
Self-thread screw
18
Adaptor jack
19
Bracket
