OM-193472 Page 14
SECTION 5 − INSTALLATION
loc_feeder/cart 2015-05

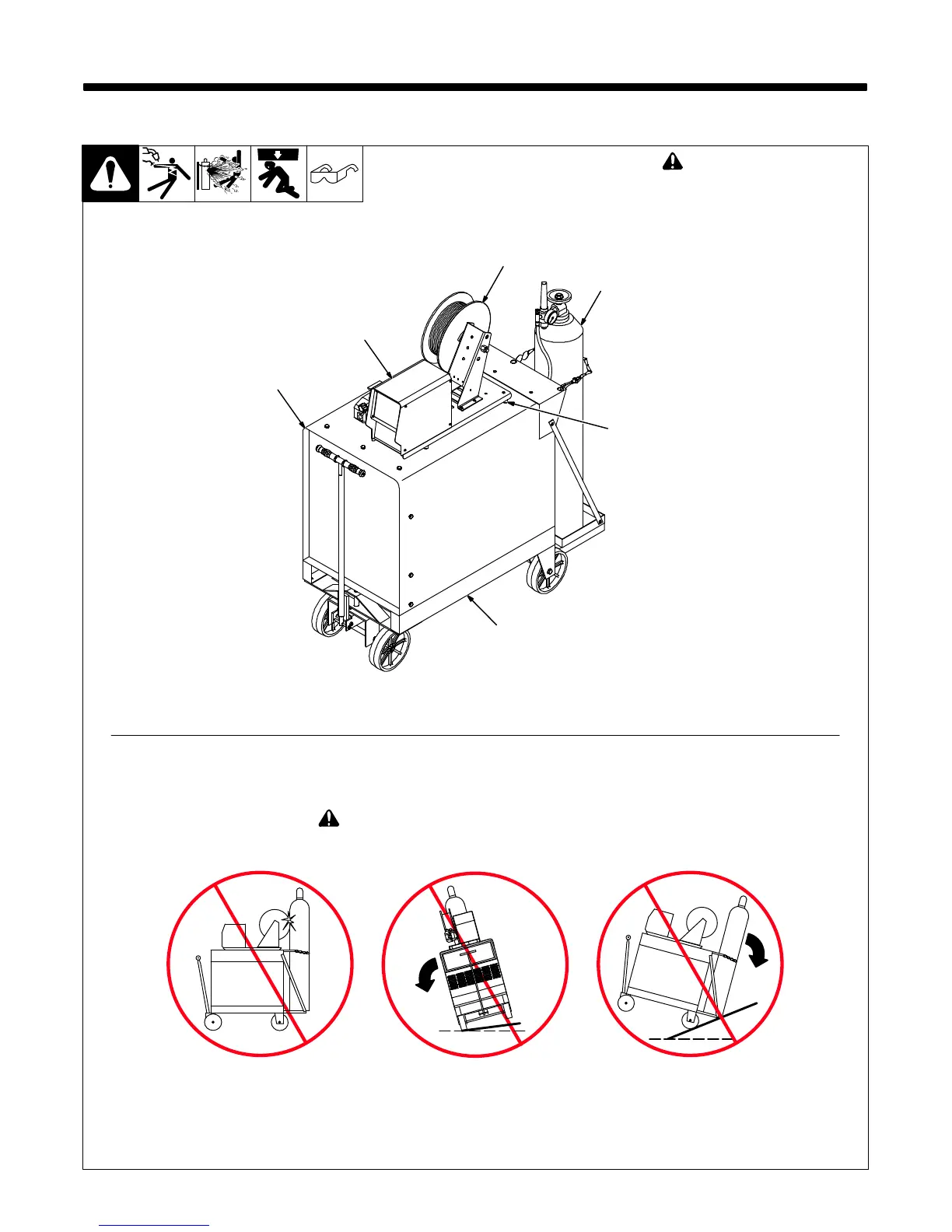

5-1. Selecting A Location
! Do not move or operate unit where it could tip.
! Do not put feeder where
welding wire hits cylinder.
. Wire feeder shown is repre-
sentative only and may not
reflect actual unit.
1 Wire Feeder
2 Rubber Feet
Choose slot that allows all rubber
feet to sit securely on top of welding
power source.
3 Wire Spool/Reel
4 Gas Cylinder w/Hose And
Regulator (Customer
Supplied)
. Shielding gas pressure not to
exceed 100 psi (689 kPa).
5 Welding Power Source
6 Running Gear
1
3
5
4
2
6
To Next Page
