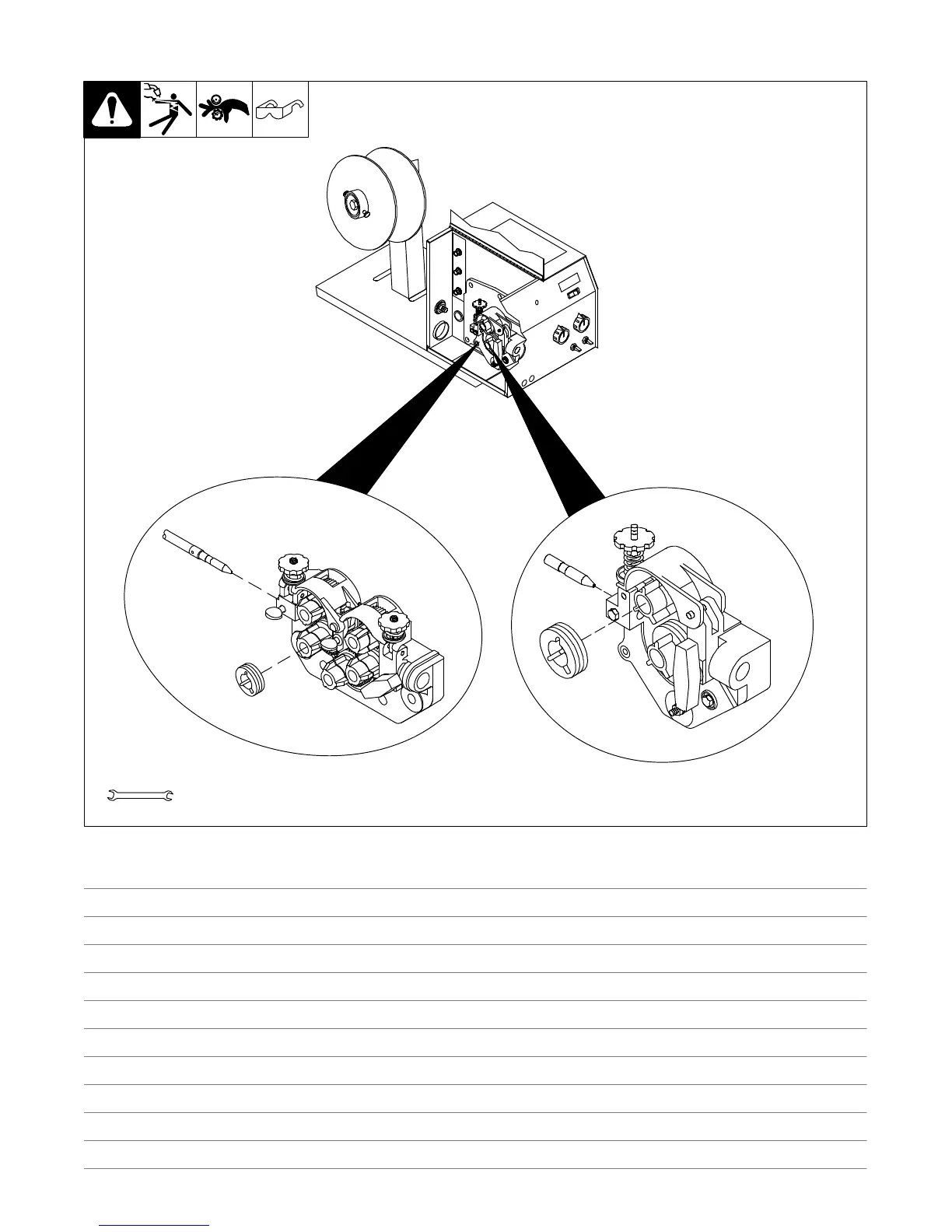

5-8. Installing Wire Guide And Drive Roll
801 923-D
Install and secure inlet wire guide
on either assembly, and
intermediate wire guide on 4 drive
roll assembly only. Install drive rolls
and turn drive roll nut one click.
During maintenance intervals,
remove drive rolls, and clean
grooves using a wire brush. Check
groove of drive roll for pitting or
increase in the depth of the groove
indicating drive roll is worn out.
Tools Needed:
3/8 in.
