OM-181 712 Page 12
SECTION 4 − INSTALLATION
4-1. Serial Number And Rating Label Location
The serial number and rating information for this product is located on the top panel. Use rating label to determine input power requirements and/or
rated output. For future reference, write serial number in space provided on back cover of this manual.

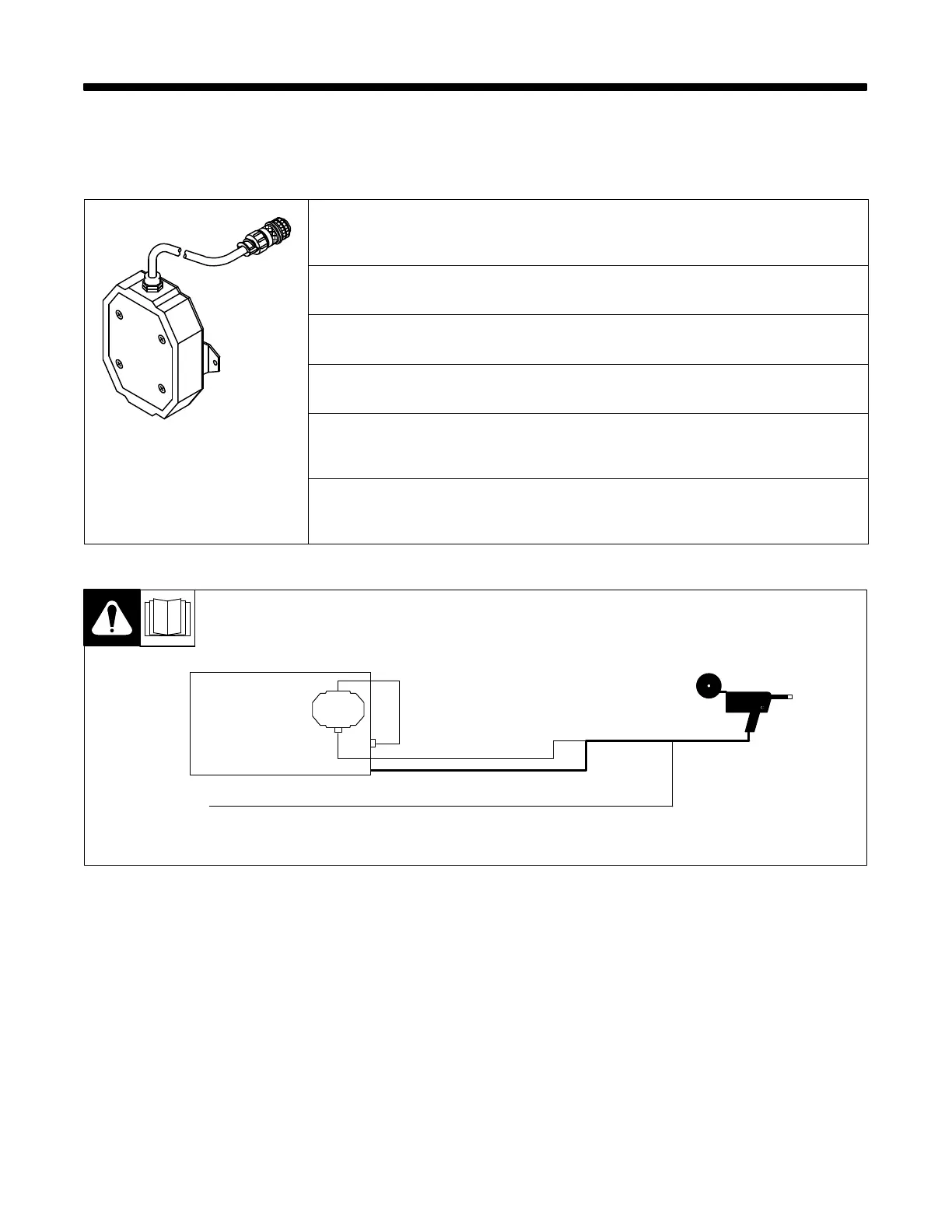

4-2. Specifications
147 743
Weld Control Connects Spoolmatic Gun To Constant Voltage (CV) DC Welding Power
Source With Contactor For DC Gas Metal Arc Welding (GMAW)
Provides 30 VDC Control Circuit Voltage to Gun/Feeder
IP Rating: 23
Receptacle For Connecting Gun/Feeder Control Cord Plug
Dimensions: 1-3/4 in. (44 mm) Long, 5-1/2 in. (140 mm) Wide, 7-3/8 in. (187 mm) High
Center To Center Mounting Hole Spacing: 6 in. (153 mm)
Weight: 2 lb (0.9 kg)
24 VAC, 1A, 50/60 Hertz, Single-Phase Input Power; 5 ft (1.5 m) Long Input Power Cord And
14-Pin Plug
4-3. Typical Process Connections
24 Volt
Control
Constant voltage
DC power source
with a 14-pin
receptacle and 24
VAC supply. 30 ft (9 m) Control Cord
30 ft (9 m) Weld Power Cable
40 ft (12 m) Gas Hose
To Next Page
